1993 Kawasaki Zephyr Handlebar Diagram

← All diagrams

Find the part on the Handlebar diagram for your 1993 Kawasaki Zephyr, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

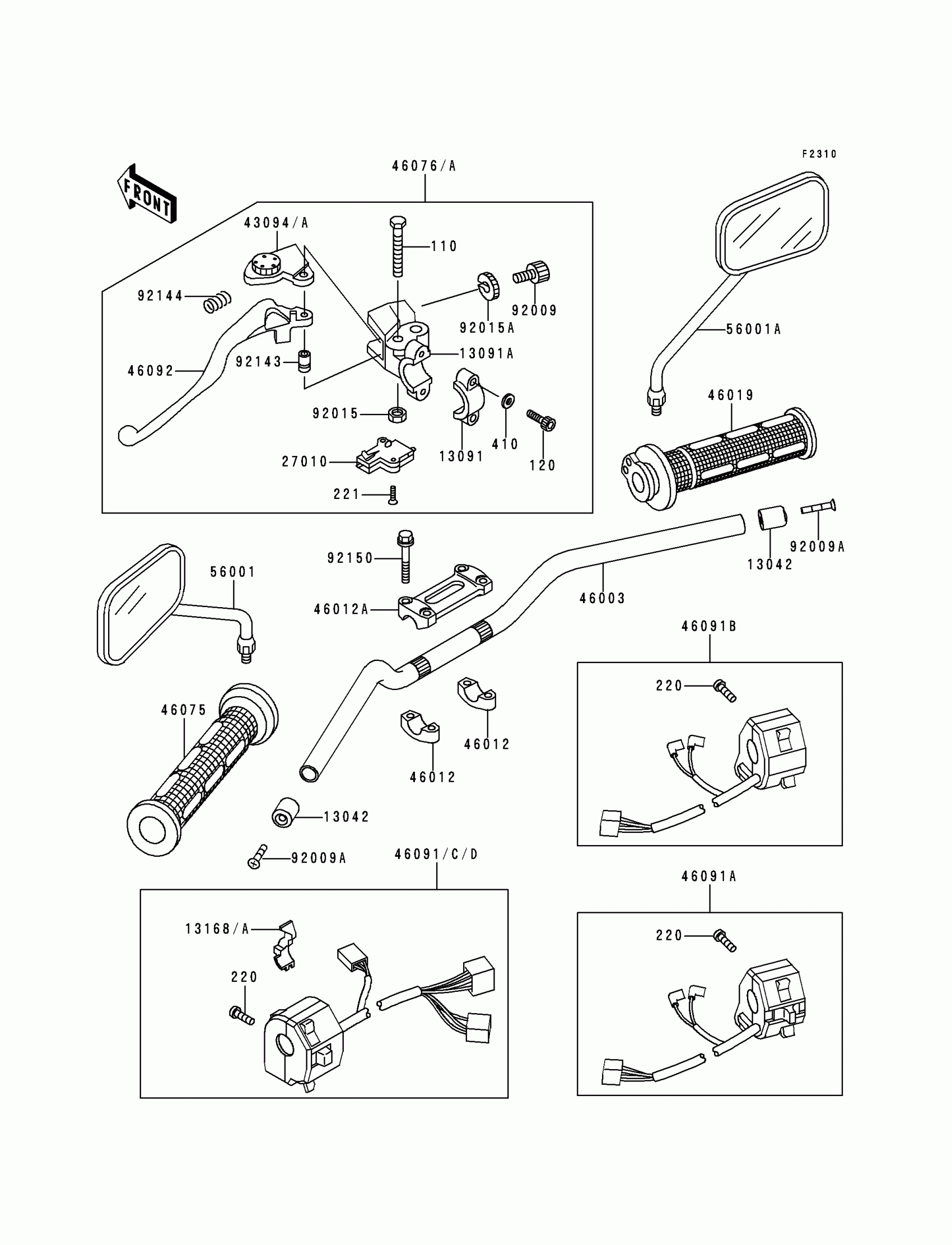

1993 Kawasaki Zephyr Handlebar Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

110

BOLT,6X40

110C0640

1
Out of stock

120

BOLT-SOCKET,6X20

120S0620

1
Out of stock

220

SCREW-PAN-CROS

220C0520

1

$1.58

In stock

221

SCREW-CSK-CROS

221C0316

1

$3.24

In stock

410

WASHER-PLAIN-SMALL,6MM,BLACK

410F0600

1
Out of stock

13042

WEIGHT,HANDLE

13042-1077

1
Out of stock

13091

HOLDER,CLUTCH LEVER

13091-1624

1

$36.55

In stock

13091A

HOLDER,CLUTCH LEVER

13091-1652

1
Out of stock

13168A

LEVER,CHOKE

13168-1448

1

$20.12

In stock

27010

SWITCH,CLUTCH,BLACK

27010-1094

1

$26.29

In stock

43094

1

$36.81

In stock

46003

HANDLE

46003-1307

1

$163.73

In stock

46012

HOLDER-HANDLE,LWR

46012-1212

1
Out of stock

46012A

HOLDER-HANDLE,UPP

46012-1213

1
Out of stock

46019

GRIP-ASSY,THROTTLE

46019-1059

1

$33.27

In stock

46075

GRIP,LH

46075-1028

1

$14.75

In stock

46076A

LEVER-ASSY-GRIP,CLUTCH

46076-1180

1
Out of stock

46091B

1

$158.54

In stock

46091C

HOUSING-ASSY-CONTROL,LH

46091-1554

1
Out of stock

46092

LEVER-GRIP,CLUTCH

46092-1162

1

$13.98

In stock

56001

MIRROR-ASSY,LH

56001-1327

1

$87.99

In stock

56001A

MIRROR-ASSY,RH

56001-1385

1
Out of stock

92009

SCREW,CABLE ADJUST,8MM,BLACK

92009-1134

1
Out of stock

92009A

SCREW,5X35

92009-1584

1
Out of stock

92015

NUT,LOCK,6MM,BLACK

92015-1191

1
Out of stock

92015A

NUT,CABLE ADJUST LOCK,8MM,BLK

92015-1197

1
Out of stock

92143

COLLAR

92143-1379

1

$7.55

In stock

92144

SPRING

92144-1467

1

$5.15

In stock

92150

BOLT,FLANGED,8X55

92150-1361

1

$7.49

In stock
