1993 Kawasaki Zephyr Suspension/shock Absorber Diagram

← All diagrams

Find the part on the Suspension/shock Absorber diagram for your 1993 Kawasaki Zephyr, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

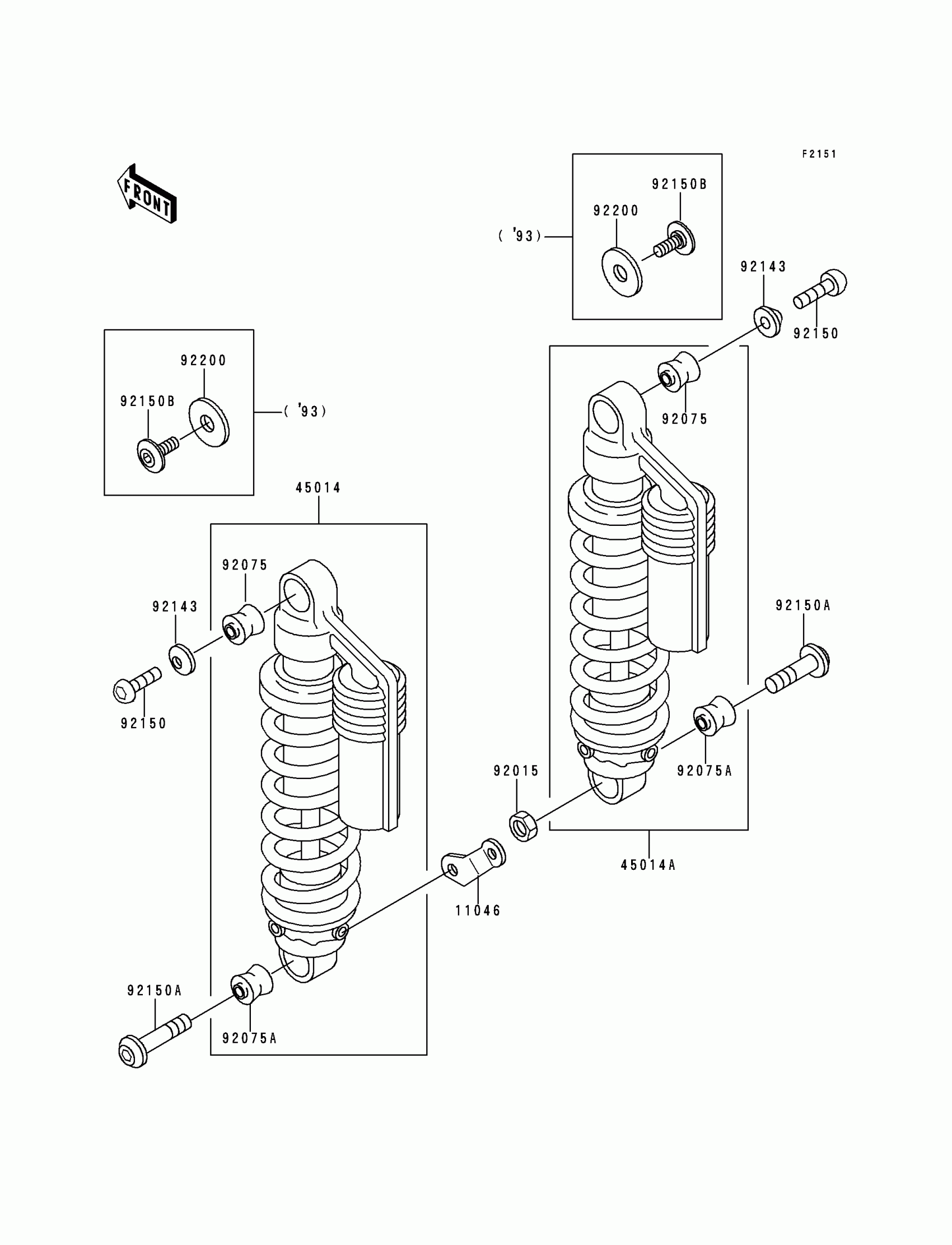

1993 Kawasaki Zephyr Suspension/shock Absorber Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11046

BRACKET,CHAIN CASE

11046-1788

1
Out of stock

45014

SHOCKABSORBER,LH,F.GRAY

45014-1492-FS

1

$864.43

In stock

45014A

SHOCKABSORBER,RH,F.GRAY

45014-1493-FS

1

$864.43

In stock

92015

NUT,FLANGED,10MM

92015-1335

1
Out of stock

92075

1

$14.14

In stock

92075A

1

$14.14

In stock

92150A

BOLT,10X45

92150-1402

1

$11.90

In stock

92150B

BOLT,SOCKET,6X16

92150-1673

1
Out of stock

92200

WASHER

92200-1166

1
Out of stock
