1993 Kawasaki Zephyr 750 Air Filter Diagram

← All diagrams

Find the part on the Air Filter diagram for your 1993 Kawasaki Zephyr 750, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

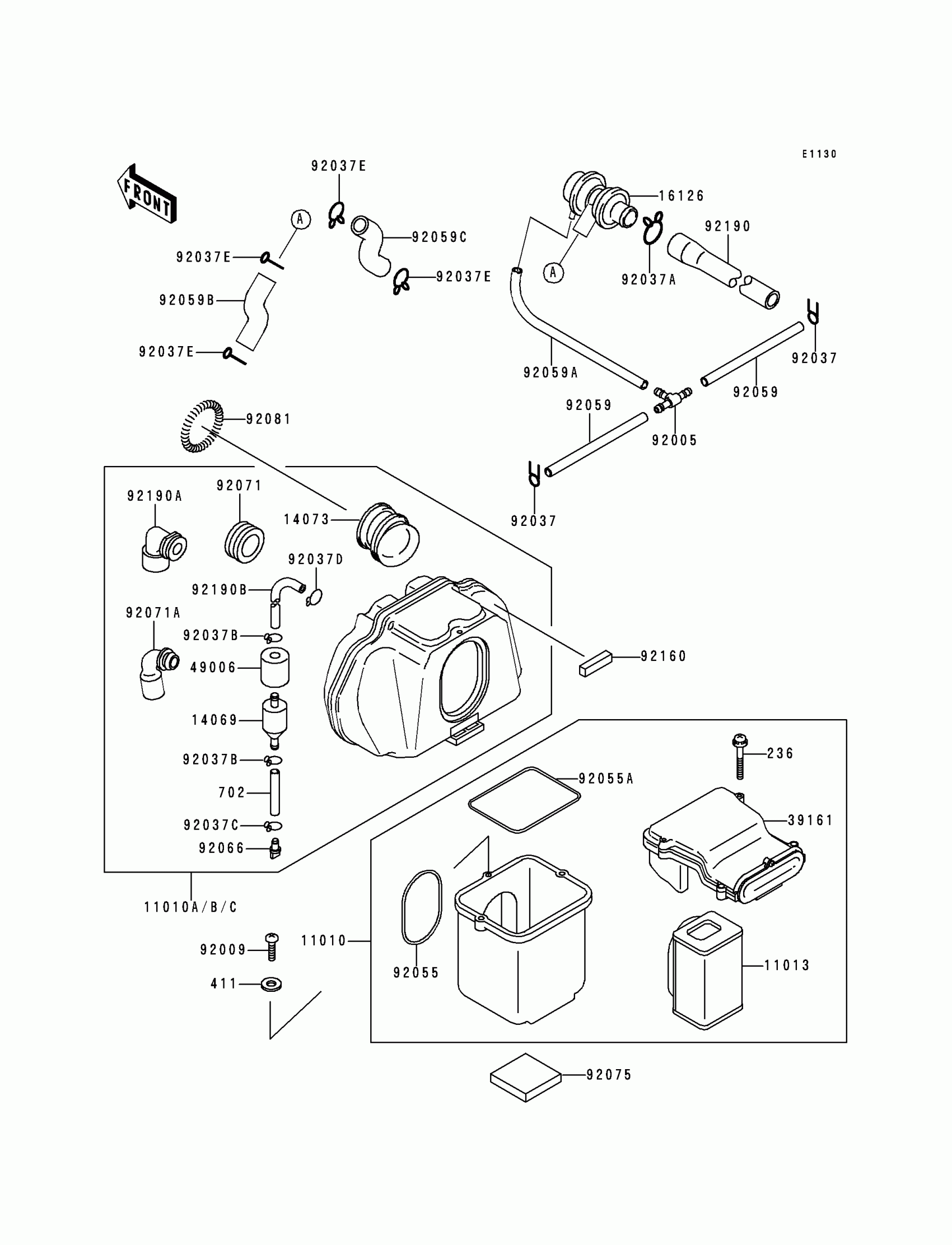

1993 Kawasaki Zephyr 750 Air Filter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11010

FILTER-ASSY-AIR

11010-1424

1
Out of stock

11010A

FILTER-ASSY-AIR

11010-1441

1
Out of stock

11013

ELEMENT-AIR FILTER

11013-1157

1

$49.08

In stock

14069

BREATHER

14069-1051

1

$8.09

In stock

14073

DUCT,CARBURETOR

14073-1211

1

$33.53

In stock

39161

1

$57.28

In stock

49006

BOOT,BREATHER

49006-1267

1

$8.51

In stock

92009

SCREW,TAPPING,5X20

92009-1399

1
Out of stock

92037B

CLAMP,TUBE

92037-147

1

$5.84

In stock

92037C

CLAMP

92037-1712

1

$3.97

In stock

92037D

CLAMP,TUBE

92037-1972

1

$3.43

In stock

92055

RING-O,91X6

92055-1137

1
Out of stock

92055A

1

$9.27

In stock

92066

PLUG,DRAIN

92066-1211

1

$6.75

In stock

92075

DAMPER,50X50X10

92075-1979

1

$5.12

In stock

236

SCREW-PAN-WSP-CROS

236B0540

1
Out of stock

411

WASHER-PLAIN,5MM,BLACK

411F0500

1
Out of stock

702

1

$7.17

In stock

92081

1

$10.26

In stock

92160

DAMPER

92160-1183

1

$2.92

In stock

92190A

TUBE,BREATHER

92190-1178

1

$12.42

In stock

92190B

TUBE,AIR FILTER

92190-1213

1

$10.10

In stock
