1993 Kawasaki Zephyr 750 Carburetor Diagram

← All diagrams

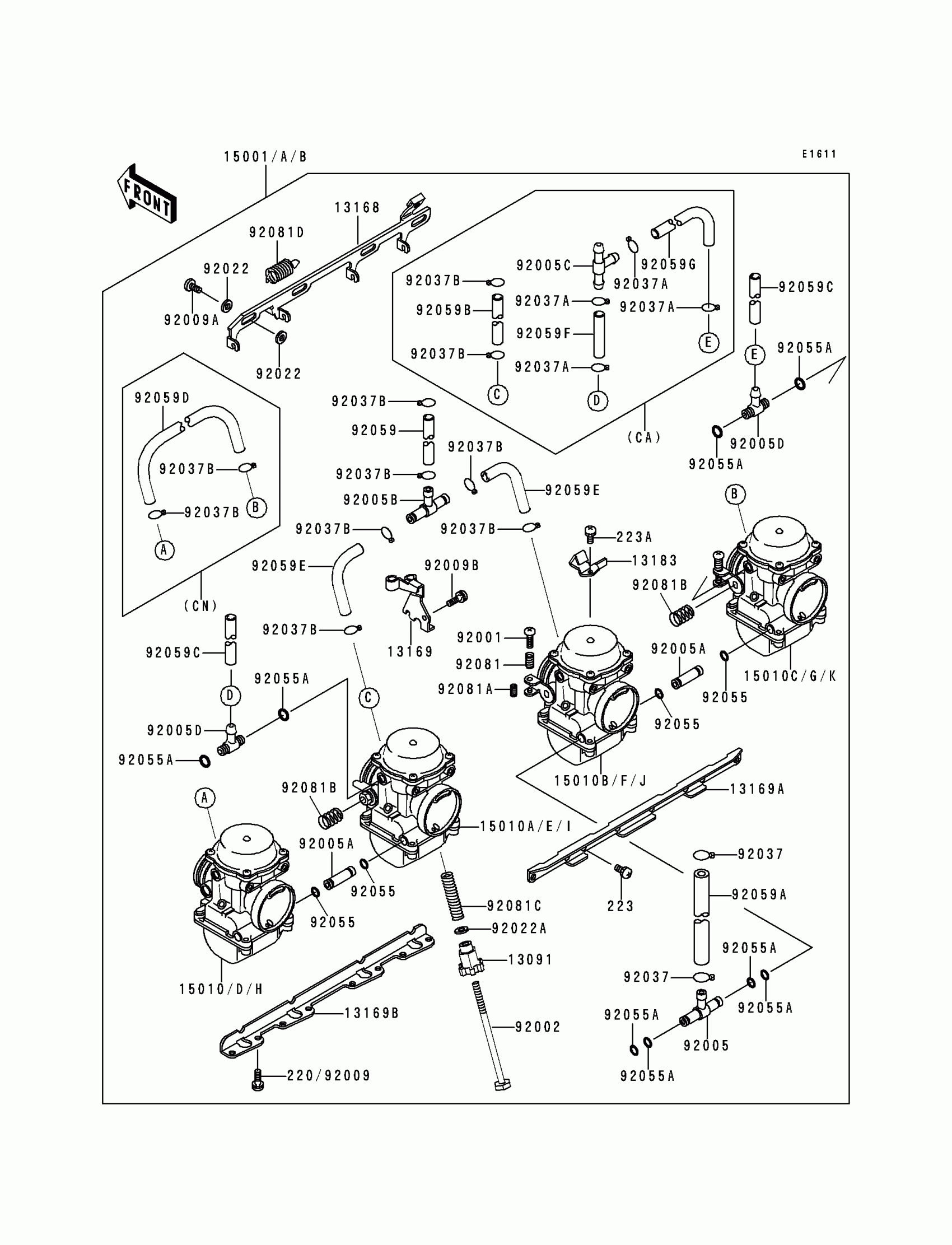

Find the part on the Carburetor diagram for your 1993 Kawasaki Zephyr 750, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1993 Kawasaki Zephyr 750 Carburetor Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13091

1

$16.31

In stock

13168

LEVER,DL

13168-1280

1

$123.55

In stock

13169

PLATE,THROTTLE CABLE

13169-1962

1
Out of stock

13169A

PLATE,CARBURETOR STAY,UPP

13169-1963

1
Out of stock

13169B

PLATE,CARBURETOR STAY,LWR,6MM

13169-1964

1
Out of stock

13183

PLATE,STARTER CABLE

13183-1033

1

$39.96

In stock

15001

CARBURETOR-ASSY

15001-1678

1
Out of stock

15010

CARBURETOR,LH,OUTSIDE

15010-1167

1
Out of stock

15010A

CARBURETOR,LH,INSIDE

15010-1168

1
Out of stock

15010B

CARBURETOR,RH,INSIDE

15010-1169

1
Out of stock

15010C

CARBURETOR,RH,OUTSIDE

15010-1170

1
Out of stock

92001

1

$15.88

In stock

92002

BOLT,THROTTLE STOP SCREW

92002-1552

1
Out of stock

92005

FITTING,FUEL,T-TYPE

92005-1108

1
Out of stock

92005A

FITTING,FUEL,I-TYPE

92005-1109

1
Out of stock

92005B

FITTING,FUEL,T-TYPE

92005-1112

1
Out of stock

220

SCREW-PAN-CROS,5X14

220D0514

1
Out of stock

223

1

$3.28

In stock

223A

SCREW-PAN-WS-CROS,4X10

223D0410

1
Out of stock

92005D

FITTING,T-TYPE

92005-1125

1
Out of stock

92009

SCREW,6X16

92009-1129

1
Out of stock

92009A

SCREW

92009-1262

1
Out of stock

92009B

SCREW,5X10

92009-1365

1
Out of stock

92022

1

$3.82

In stock

92022A

1

$4.42

In stock

92037

CLAMP,FUEL TUBE

92037-1075

1

$3.16

In stock

92037B

CLAMP,TUBE

92037-1477

1

$3.43

In stock

92055

RING-O

92055-1004

1

$3.43

In stock

92055A

RING-O

92055-1223

1

$4.37

In stock

92059

TUBE,5X9X200

92059-1173

1

$24.51

In stock

92059A

1

$34.56

In stock

92059C

TUBE,6.5X9.5X260

92059-1598

1

$34.01

In stock

92059D

TUBE,5X9X320

92059-1626

1

$24.51

In stock

92059E

TUBE,5X9X90

92059-1627

1

$10.93

In stock

92081

SPRING

92081-1620

1

$3.94

In stock

92081A

1

$4.12

In stock

92081B

1

$10.27

In stock

92081C

SPRING,THROTTLE STOP SCREW

92081-1875

1
Out of stock

92081D

1

$22.88

In stock
