1992 Kawasaki Zephyr 750 Canister Diagram

← All diagrams

Find the part on the Canister diagram for your 1992 Kawasaki Zephyr 750, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

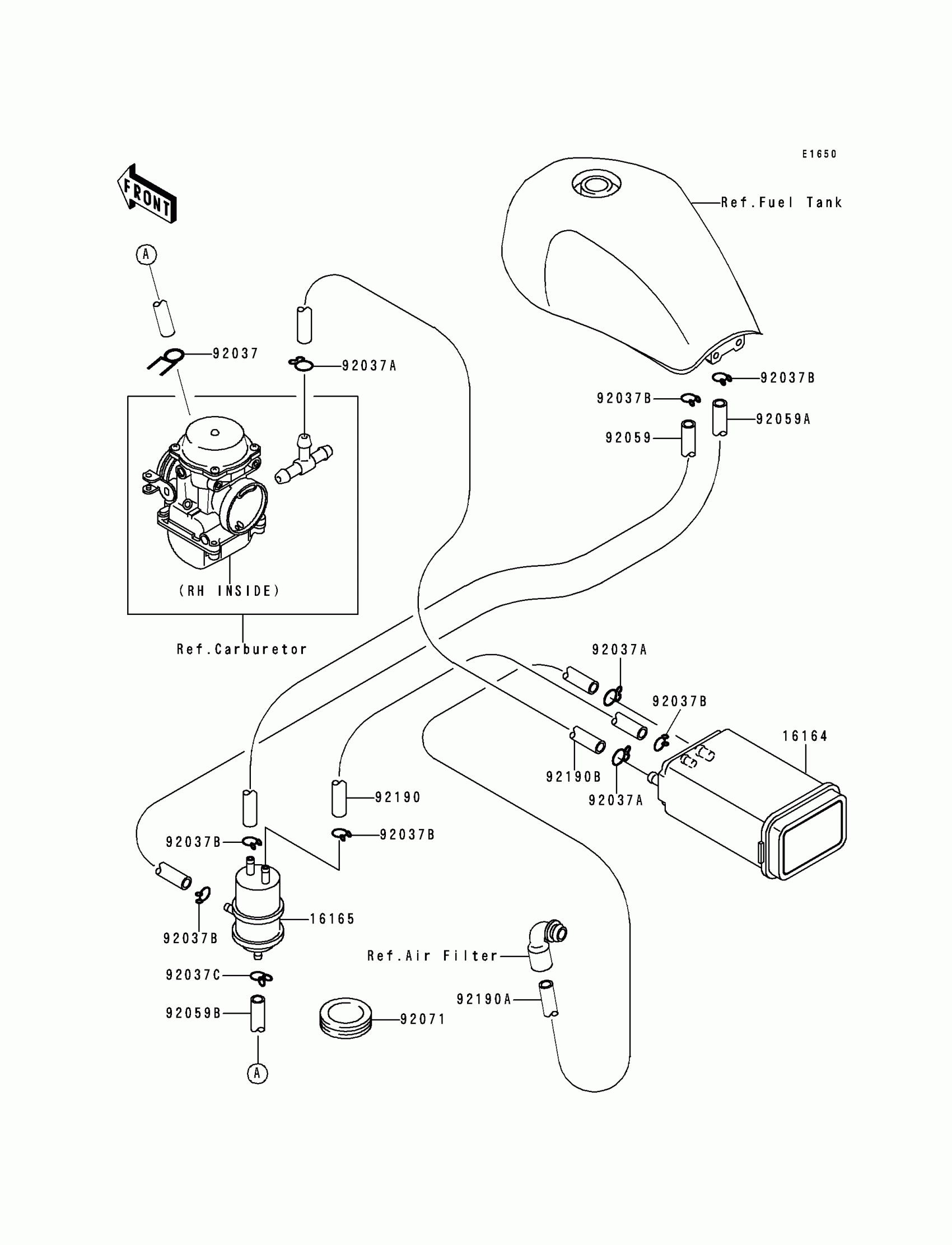

1992 Kawasaki Zephyr 750 Canister Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

16164

CANISTER

16164-1052

1
Out of stock

16165

SEPARATOR

16165-1001

1
Out of stock

92037

CLAMP,TUBE

92037-072

1
Out of stock

92037A

CLAMP-HOSE

92037-1104

1
Out of stock

92037B

CLAMP,TUBE

92037-147

1
Out of stock

92037C

CLAMP

92037-1712

1
Out of stock

92059

TUBE,5X10X470,BLUE

92059-1500

1
Out of stock

92059A

TUBE,5X10X430,RED

92059-1501

1
Out of stock

92059B

TUBE,4X9X550,WHITE

92059-1760

1
Out of stock

92071

GROMMET,FUEL TANK

92071-1035

1
Out of stock

92190

TUBE,BLUE

92190-1206

1
Out of stock

92190A

TUBE,GREEN

92190-1219

1
Out of stock

92190B

TUBE,YELLOW

92190-1220

1
Out of stock
