2020 Kawasaki Z900RS Cafe Turn Signals Diagram

← All diagrams

Find the part on the Turn Signals diagram for your 2020 Kawasaki Z900RS Cafe, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

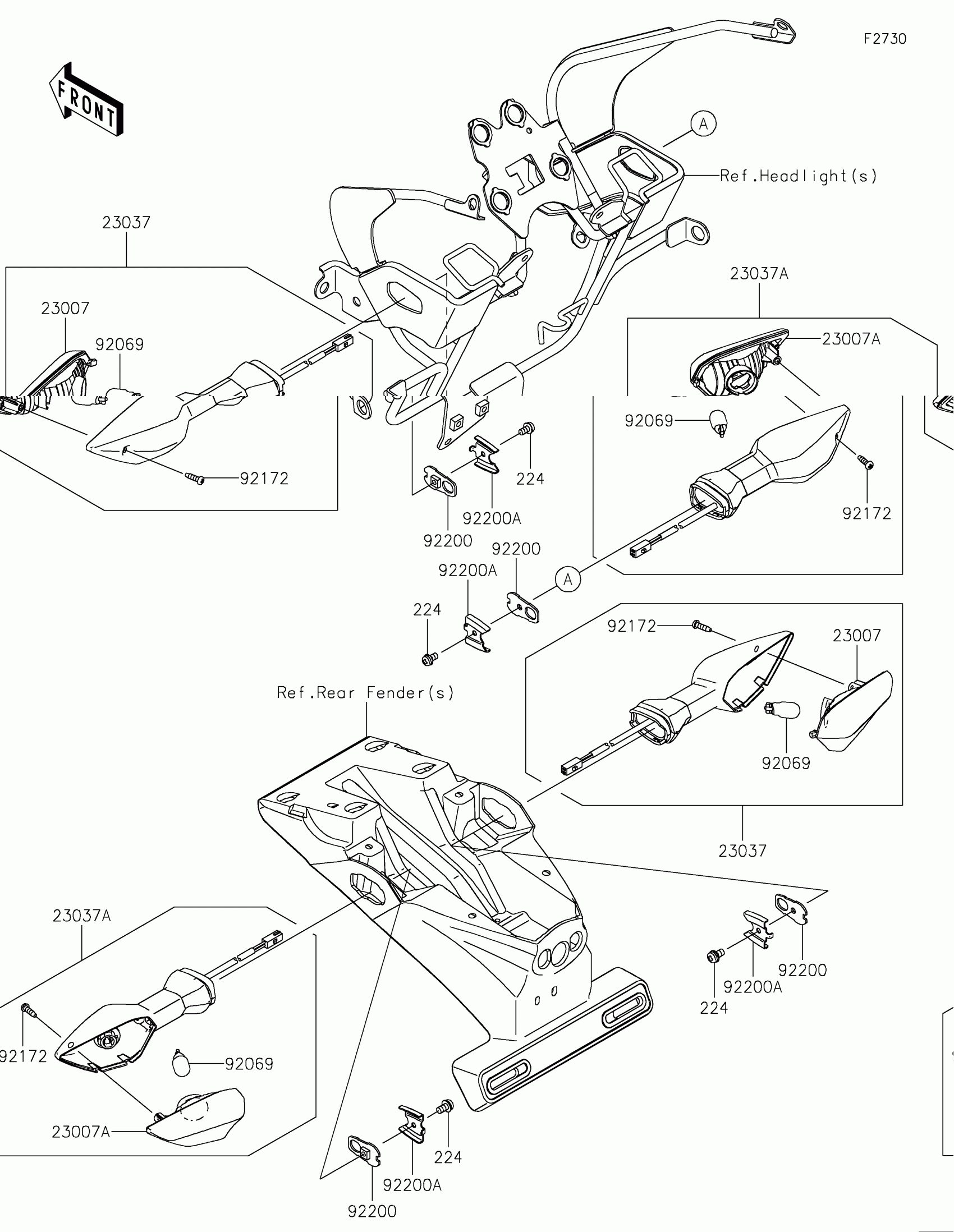

2020 Kawasaki Z900RS Cafe Turn Signals Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

224

SCREW-PAN-WP-CROS,4X8

224AB0408

1
Out of stock

23007

LENS-COMP

23007-0205

1
Out of stock

23007A

LENS-COMP

23007-0206

1
Out of stock

23037

LAMP-ASSY-SIGNAL,RR RH

23037-0362

1
Out of stock

23037A

LAMP-ASSY-SIGNAL,RR LH

23037-0363

1
Out of stock

92069

BULB,12V 10W

92069-0090

1
Out of stock

92172

SCREW,4X14

92172-1117

1
Out of stock

92200

WASHER,NUT 4MM

92200-0854

1
Out of stock

92200A

WASHER

92200-0855

1
Out of stock
← Taillight Cowling →
