2020 Kawasaki Z900RS Cafe Taillight Diagram

← All diagrams

Find the part on the Taillight diagram for your 2020 Kawasaki Z900RS Cafe, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

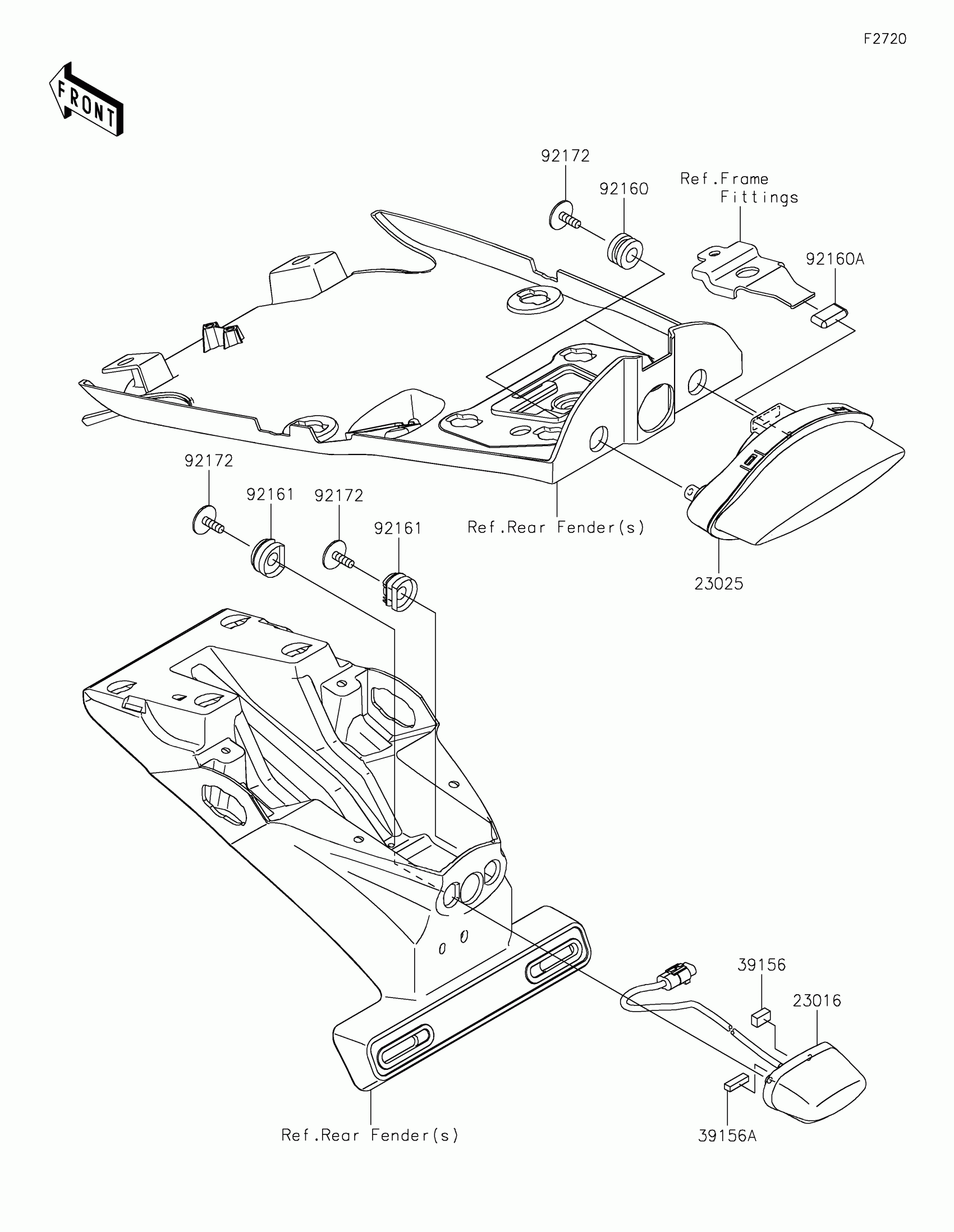

2020 Kawasaki Z900RS Cafe Taillight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

23016

LAMP-ASSY,LICENSE,LED

23016-0618

1
Out of stock

23025

LAMP-TAIL,LED

23025-0368

1
Out of stock

39156

PAD,7X12X5

39156-2292

1
Out of stock

39156A

PAD,4X17X5

39156-2293

1
Out of stock

92160

DAMPER,10X20X12

92160-1167

1

$3.72

In stock

92160A

DAMPER

92160-1190

1

$3.25

In stock

92161

DAMPER

92161-2128

1
Out of stock

92172

SCREW,TAPTITE,5X16

92172-0481

1

$2.58

In stock
