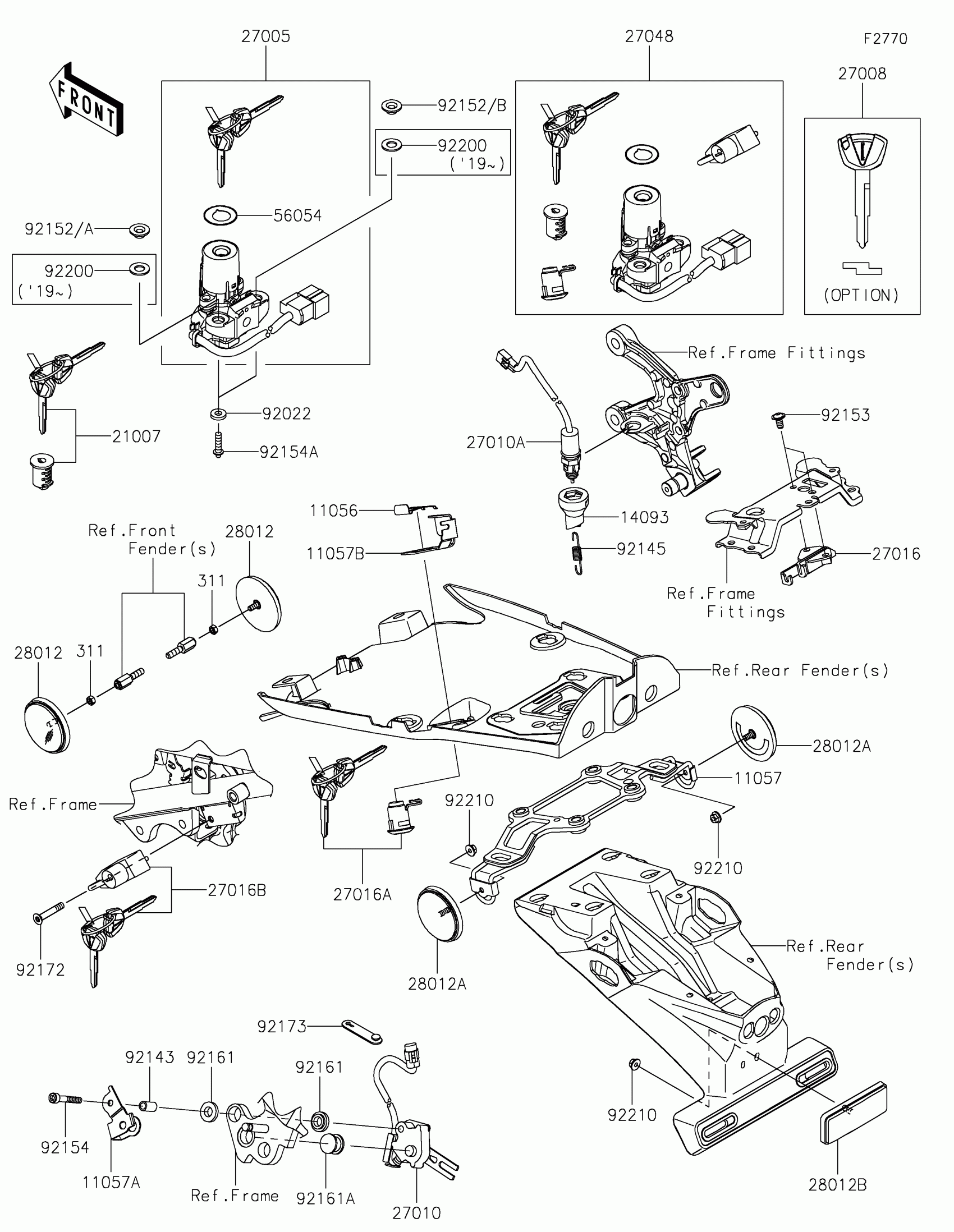

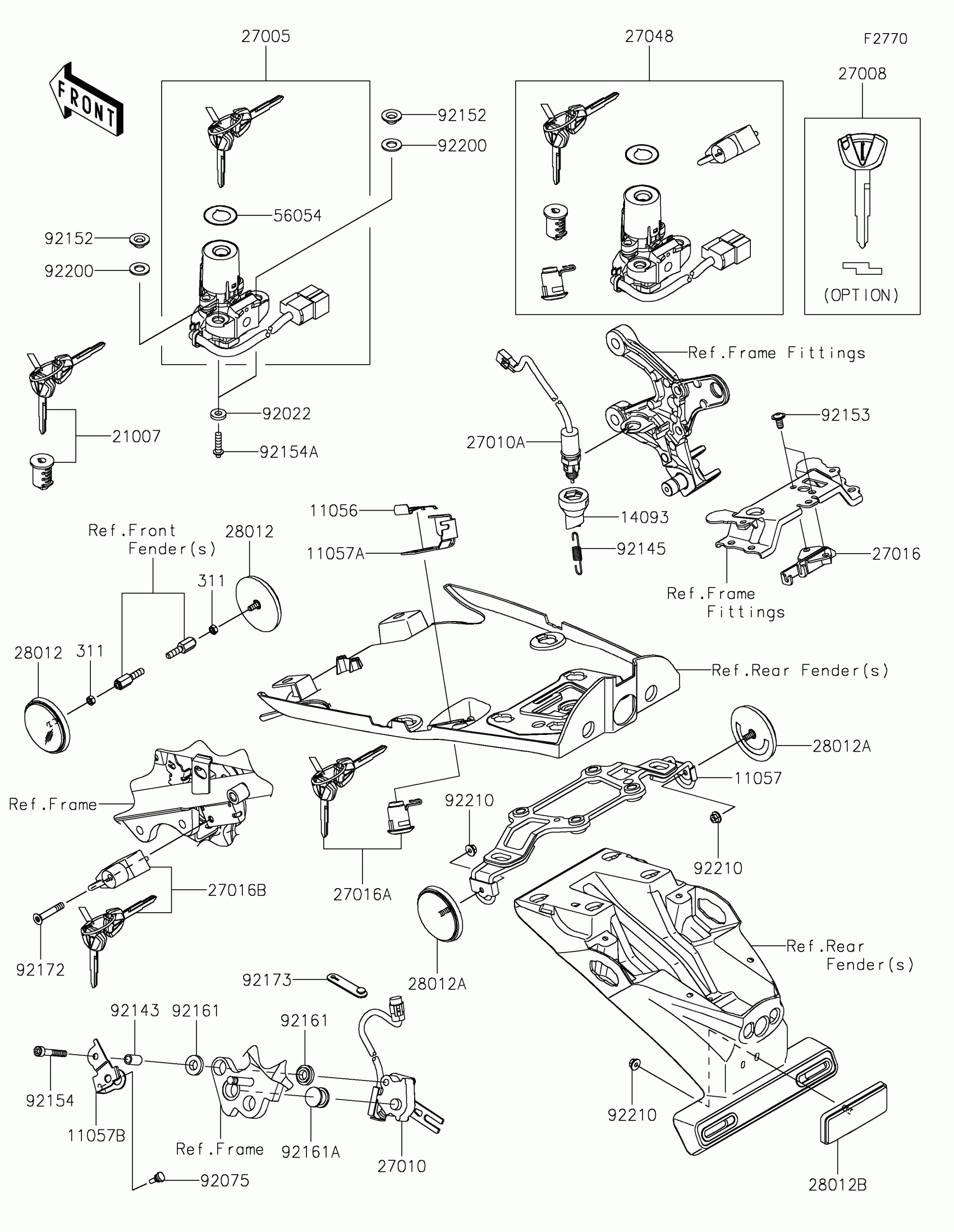

Find the part on the Ignition Switch/locks/reflectors diagram for your 2020 Kawasaki Z900RS Cafe, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2020 Kawasaki Z900RS Cafe Ignition Switch/locks/reflectors Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11056

BRACKET,CLASP

11056-0238

1

$4.75

In stock

11057

BRACKET,RR REFLECTOR

11057-0878

1
Out of stock

11057A

BRACKET,STAND SW.

11057-1413

1
Out of stock

11057B

BRACKET,SEAT LOCK CABLE

11057-1556

1
Out of stock

14093

COVER,BRAKE SW.

14093-0666

1
Out of stock

21007

ROTOR,LOCK,TANK CAP

21007-5068

1

$90.02

In stock

27005

SWITCH-ASSY-IGNITION

27005-0646

1
Out of stock

27008

1

$60.69

In stock

27010

SWITCH,SIDE STAND

27010-0811

1

$72.44

In stock

27010A

SWITCH,RR BRAKE

27010-0867

1
Out of stock

27016

1

$29.14

In stock

27016A

LOCK-ASSY,SEAT

27016-5373

1

$92.15

In stock

27016B

LOCK-ASSY,HELMET

27016-5402

1
Out of stock

27048

SWITCH-ASSY

27048-5159

1
Out of stock

28012

1

$22.37

In stock

28012A

REFLECTOR-REFLEX

28012-0002

1

$22.37

In stock

28012B

REFLECTOR-REFLEX

28012-1077

1

$21.76

In stock

311

NUT-HEX,5MM

311AB0500

1

$0.49

In stock

56054

MARK,IGNITION

56054-1596

1

$9.86

In stock

92022

WASHER,7X15.5X3

92022-312

1
Out of stock

92143

COLLAR,6.5X9.5X17

92143-1408

1

$4.24

In stock

92145

SPRING,REAR BRAKE

92145-0946

1

$4.42

In stock

92152

COLLAR

92152-0423

1

$3.11

In stock

92153

BOLT,SOCKET,6X12

92153-1617

1

$1.20

In stock

92154

BOLT,SOCKET,6X40

92154-0505

1

$1.44

In stock

92154A

BOLT,TORX,6X22

92154-1858

1

$3.14

In stock

92161

DAMPER

92161-0117

1

$2.36

In stock

92161A

DAMPER

92161-0118

1

$2.36

In stock

92172

SCREW,HEXLOBE,6X35

92172-0835

1

$2.44

In stock

92173

CLAMP,RUBBER PLATE

92173-1229

1

$3.56

In stock

92200

WASHER,10.2X20X1.6

92200-0328

1
Out of stock

92210

NUT,FLANGED,5MM

92210-0007

1
Out of stock
