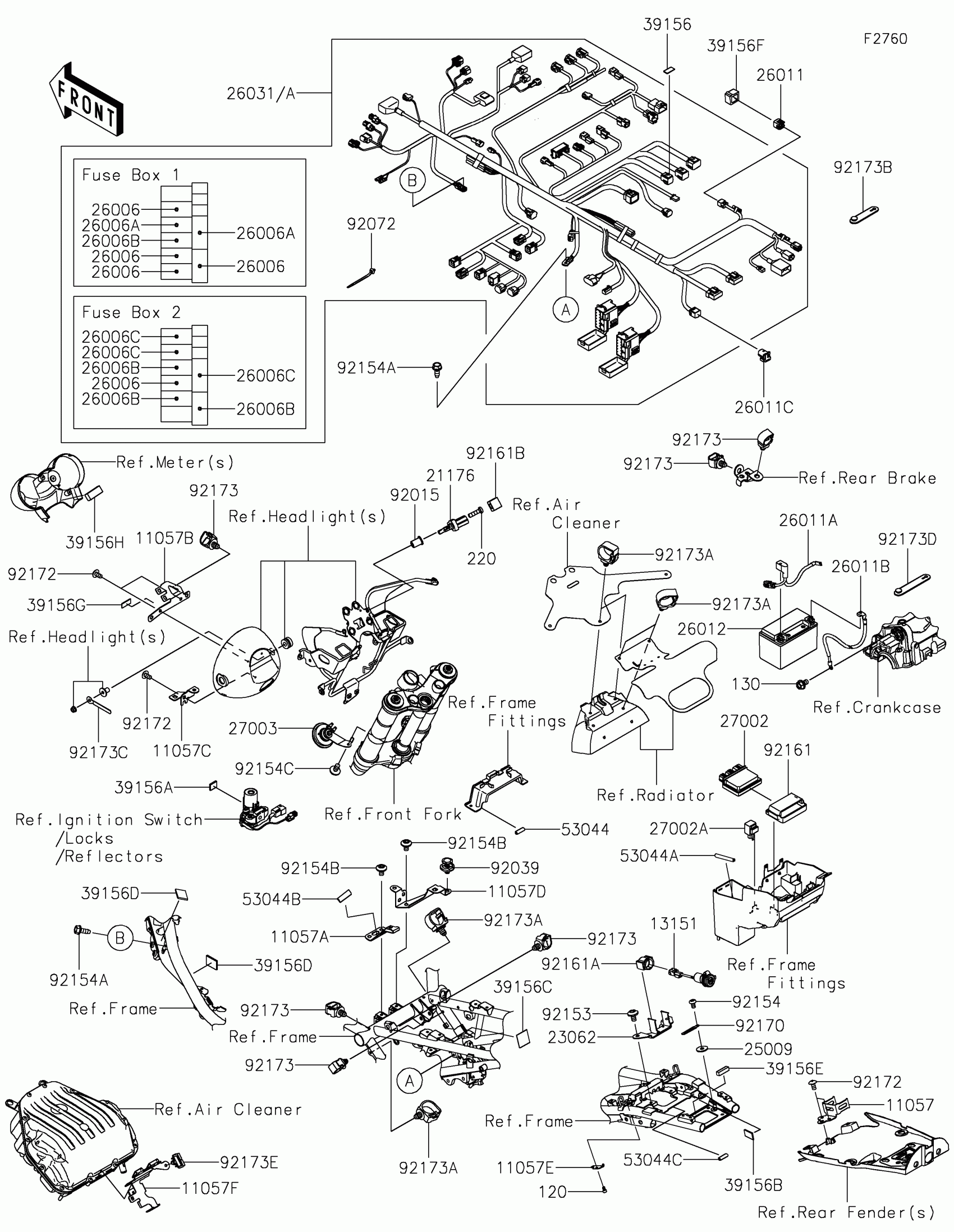

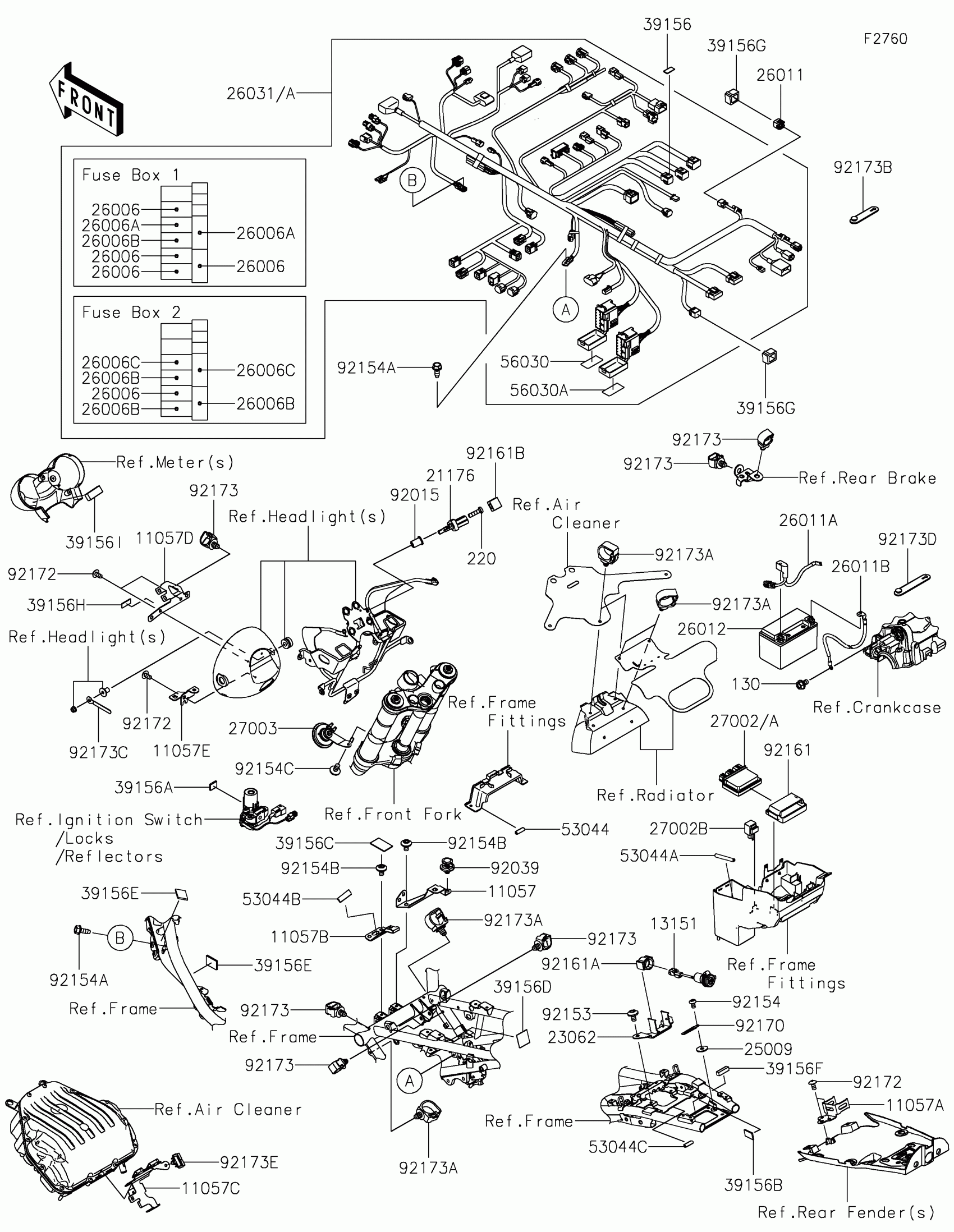

Find the part on the Chassis Electrical Equipment diagram for your 2020 Kawasaki Z900RS Cafe, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2020 Kawasaki Z900RS Cafe Chassis Electrical Equipment Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11057

BRACKET,MAIN HARNESS

11057-0915

1
Out of stock

11057A

BRACKET,MAGNETIC SW.

11057-0916

1
Out of stock

11057B

BRACKET,FUEL PUMP CONNECTOR

11057-0917

1
Out of stock

11057C

BRACKET,AIR CLEANER

11057-0918

1
Out of stock

11057D

BRACKET,HEAD LAMP COVER,UPP

11057-1322

1
Out of stock

11057E

BRACKET,HEAD LAMP COVER,LWR

11057-1512

1
Out of stock

13151

SWITCH-COMP,DC OUTLET

13151-0580

1
Out of stock

21176

SENSOR,AIR TEMPERATURE

21176-0048

1
Out of stock

23062

BRACKET-COMP,DC SOCKET

23062-1000

1
Out of stock

25009

WASHER,5.2X16X1.2

25009-004

1
Out of stock

26006

FUSE,MINI BLADE,15A,BLUE

26006-0001

1
Out of stock

26006A

FUSE,MINI BLADE,2A,GRAY

26006-0052

1
Out of stock

26006B

FUSE,MINI BLADE,7.5A,BROWN

26006-0055

1
Out of stock

26006C

FUSE,MINI BLADE,30A,GREEN

26006-1080

1
Out of stock

26011

WIRE-LEAD,CONNECTOR COVER

26011-0275

1
Out of stock

26011A

WIRE-LEAD,BATTERY(+)

26011-0971

1
Out of stock

26011B

WIRE-LEAD,BATTERY(-)

26011-0972

1
Out of stock

26012

BATTERY,YTX9-BS,12V 8AH

26012-0838

1
Out of stock

26031A

HARNESS,MAIN

26031-2526

1
Out of stock

27002A

RELAY-ASSY

27002-0042

1
Out of stock

27002B

RELAY-ASSY,SIGNAL LAMP

27002-1097

1
Out of stock

27003

HORN

27003-0146

1
Out of stock

39156

PAD,10X20X1

39156-2241

1
Out of stock

39156A

PAD,20X25X4

39156-2284

1
Out of stock

39156B

PAD,20X40X4

39156-2285

1
Out of stock

39156C

PAD,17X28X1

39156-2287

1
Out of stock

39156D

PAD,20X20X1

39156-2288

1
Out of stock

39156E

PAD,30X40X4

39156-2348

1
Out of stock

39156F

PAD,10X40X10

39156-2350

1
Out of stock

39156G

PAD,DIAG CONNECTOR

39156-2361

1
Out of stock

39156H

PAD,15X35X1

39156-2364

1
Out of stock

39156I

PAD,20X50X15

39156-2378

1
Out of stock

53044

TRIM,L=30

53044-0001

1

$2.29

In stock

53044A

TRIM

53044-0018

1

$4.14

In stock

53044B

TRIM,9X6.5X20

53044-0596

1

$3.68

In stock

53044C

TRIM,9X6.5X30

53044-0632

1
Out of stock

130

BOLT-FLANGED,6X10

130BA0610

1

$1.12

In stock

220

SCREW-PAN-CROS,5X18

220AB0518

1
Out of stock

56030

LABEL,FUSE BOX1

56030-1339

1
Out of stock

56030A

LABEL,FUSE BOX2

56030-1340

1
Out of stock

92015

NUT,WELL,5MM

92015-1757

1
Out of stock

92039

RIVET,HOLE 8MM

92039-0014

1
Out of stock

92153

BOLT,SOCKET,6X10

92153-1628

1
Out of stock

92154

BOLT

92154-0314

1
Out of stock

92154A

BOLT,FLANGED,6X16

92154-0551

1
Out of stock

92154B

BOLT,SOCKET,6X10

92154-0774

1
Out of stock

92154C

BOLT,SOCKET,6X12

92154-2706

1
Out of stock

92161

DAMPER,RELAY BOX

92161-0203

1
Out of stock

92161A

DAMPER,DC SOCKET

92161-2069

1
Out of stock

92161B

DAMPER,29X29X25

92161-2153

1
Out of stock

92170

CLAMP

92170-1514

1

$3.43

In stock

92172

SCREW,TAPPING,5X10

92172-0262

1
Out of stock

92173

CLAMP,12MM DIA.

92173-0736

1
Out of stock

92173A

CLAMP

92173-0861

1
Out of stock

92173B

CLAMP,RUBBER PLATE

92173-1229

1
Out of stock

92173C

CLAMP

92173-1306

1
Out of stock

92173D

CLAMP

92173-1526

1
Out of stock

92173E

CLAMP,SENSOR WIRE

92173-1802

1
Out of stock
