2005 Kawasaki Z750S Fuel Tank Diagram

← All diagrams

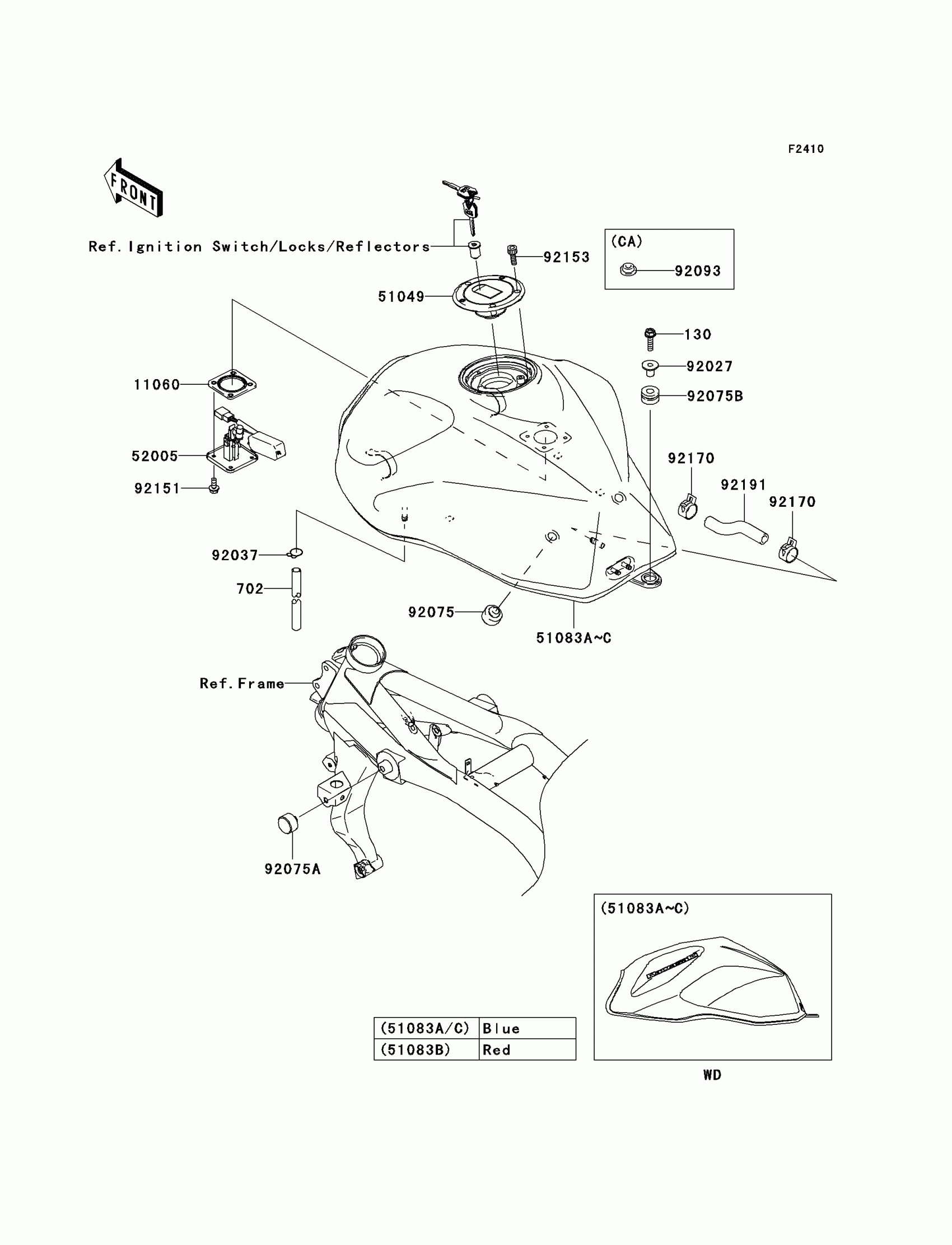

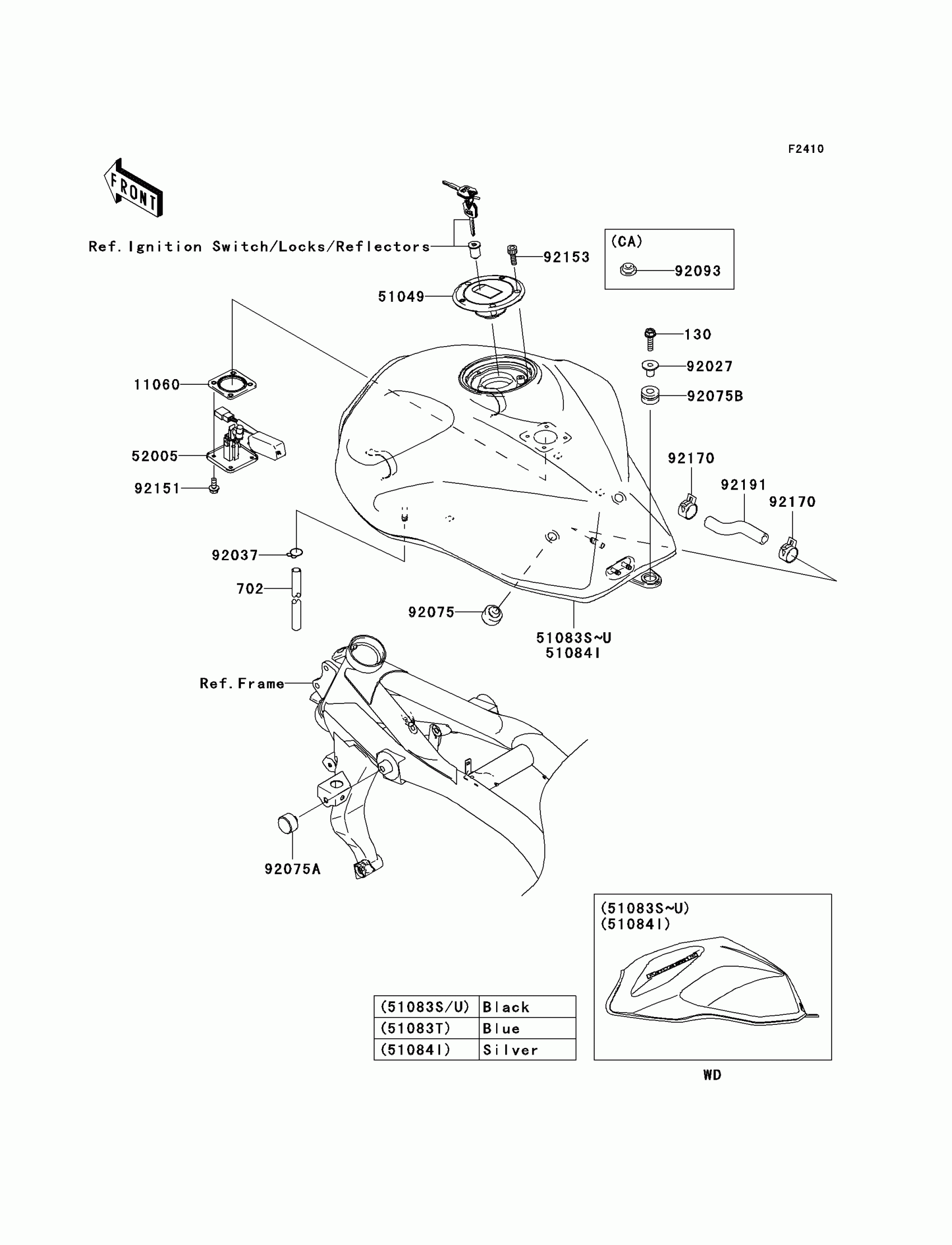

Find the part on the Fuel Tank diagram for your 2005 Kawasaki Z750S, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2005 Kawasaki Z750S Fuel Tank Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11060

GASKET,FUEL GAUGE

11060-1952

1

$19.64

In stock

51049

CAP-TANK,FUEL

51049-0008

1
Out of stock

52005

GAUGE,FUEL

52005-1160

1
Out of stock

92027

COLLAR,L=19.3

92027-1780

1

$5.21

In stock

92037

CLAMP,TUBE

92037-010

1

$3.12

In stock

130

BOLT,FLANGED,8X30

130G0830

1
Out of stock

702

1

$20.58

In stock

92075

DAMPER

92075-015

1

$3.97

In stock

92075A

DAMPER,FUEL TANK

92075-101

1

$4.93

In stock

92075B

DAMPER

92075-1736

1

$5.21

In stock

92151

BOLT,5X12

92151-1599

1

$1.28

In stock

92153

BOLT,SOCKET,5X16

92153-0492

1
Out of stock

92170

CLAMP

92170-1492

1

$3.97

In stock

92191

TUBE

92191-1801

1
Out of stock

51083A

TANK-COMP-FUEL,C,P,BLUE

51083-5393-723

1

$1,582.62

In stock

51083B

TANK-COMP-FUEL,P.M.RED

51083-5394-724

1
Out of stock

51083C

TANK-COMP-FUEL,C.P.BLUE

51083-5396-723

1

$1,552.23

In stock

92093

SEAL,FUEL TANK CAP

92093-1030

1

$6.18

In stock
