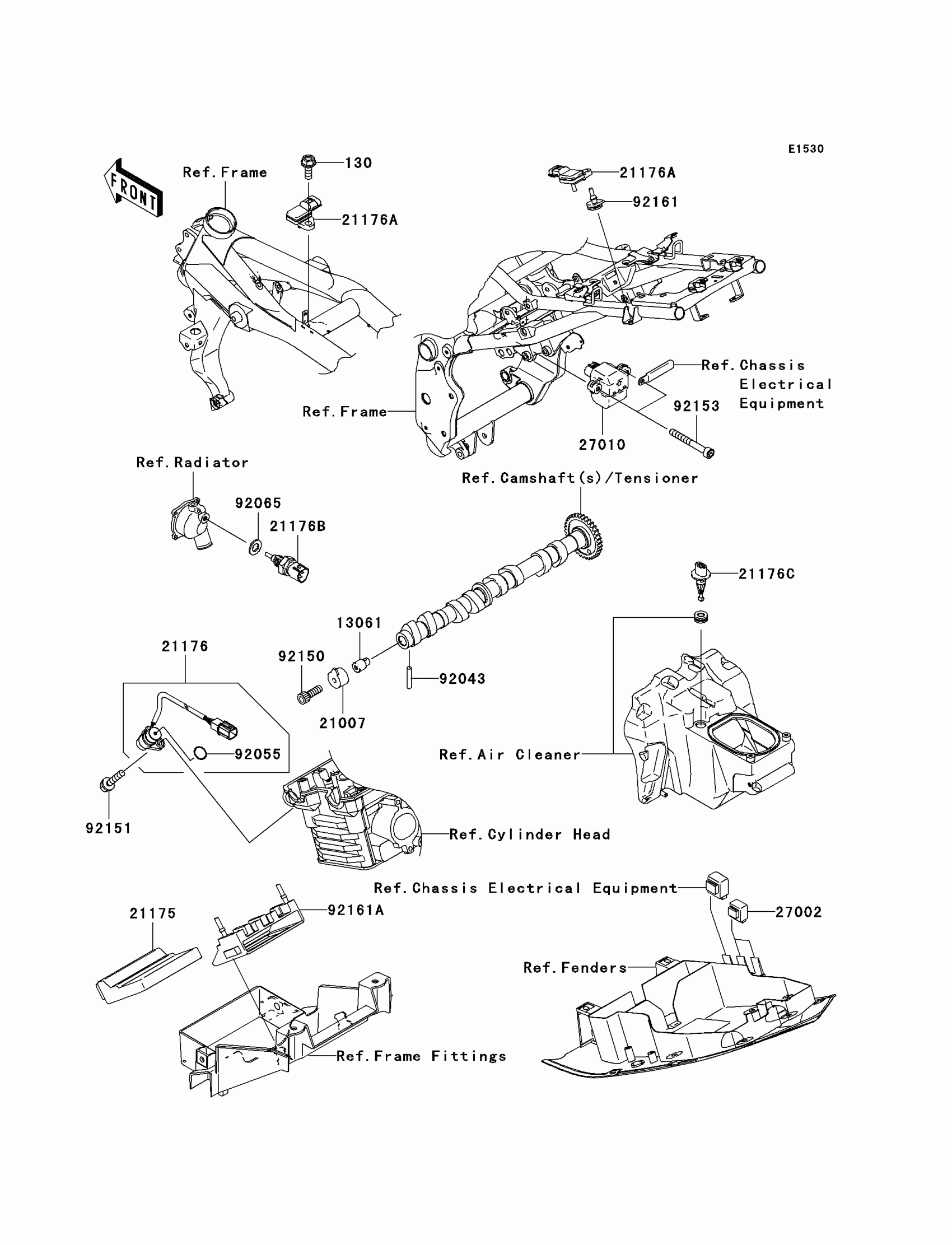

Find the part on the Fuel Injection diagram for your 2005 Kawasaki Z750S, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2005 Kawasaki Z750S Fuel Injection Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED,6X16,BLACK

130J0616

1
Out of stock

13061

BOSS,CAM SENSOR

13061-1687

1

$15.29

In stock

21007

ROTOR

21007-0005

1

$11.92

In stock

21175

1

$810.97

In stock

21176

SENSOR

21176-1077

1

$92.42

In stock

21176A

SENSOR

21176-1118

1

$144.21

In stock

21176B

SENSOR,WATER TEMP

21176-1120

1

$64.35

In stock

21176C

SENSOR,AIR TEMP

21176-2106

1

$22.55

In stock

27002

RELAY-ASSY

27002-1062

1

$41.21

In stock

27010

SWITCH

27010-0007

1

$165.90

In stock

92043

PIN

92043-1575

1

$2.03

In stock

92055

RING-O

92055-1639

1

$2.49

In stock

92065

GASKET,12X22X2

92065-097

1

$0.76

In stock

92150

BOLT,6X18

92150-1645

1

$2.92

In stock

92151

BOLT,FLANGED,6X16

92151-1774

1
Out of stock

92153

BOLT,4X35

92153-0377

1
Out of stock

92161

DAMPER

92161-0041

1

$4.59

In stock

92161A

DAMPER

92161-0206

1

$33.67

In stock
