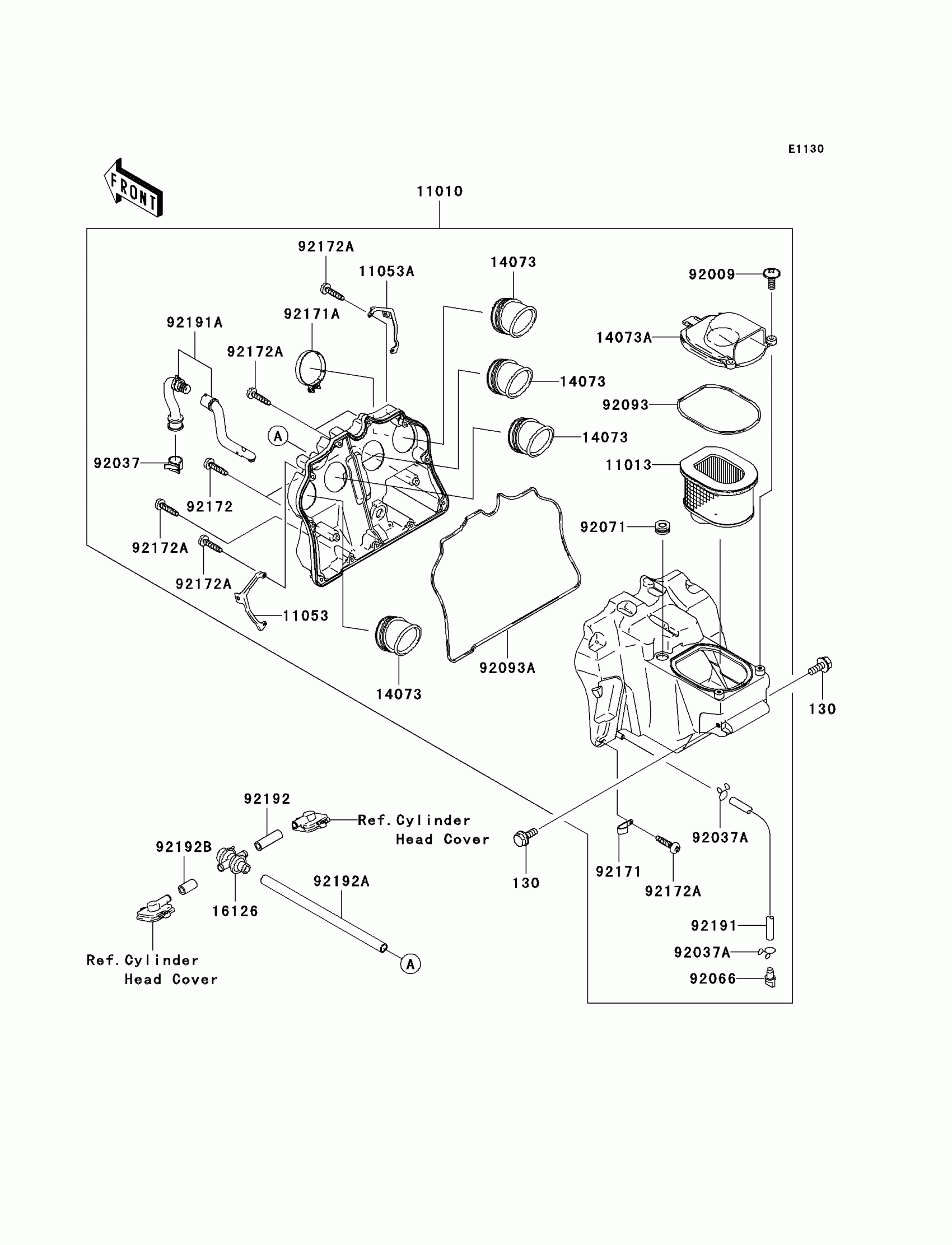

Kawasaki Z750S Air Cleaner Diagram

#

Description
Price

130

BOLT-FLANGED,6X8

130J0608

Unavailable

11010

FILTER-ASSY-AIR

11010-0017

$491.21

11013

ELEMENT-AIR FILTER

11013-1302

$66.79

11053

BRACKET,LH

11053-0424

$44.04

11053A

BRACKET,RH

11053-0425

$44.04

14073

DUCT

14073-0013

$35.08

14073A

DUCT

14073-0036

$42.27

16126

VALVE,AIR SWITCH

16126-1433

$196.87

92009

SCREW,6X16

92009-1621

Unavailable

92037

CLAMP,HOSE CLIP

92037-1460

$8.23

92037A

CLAMP,TUBE

92037-147

$5.61

92066

PLUG,DRAIN

92066-1211

$6.48

92071

GROMMET

92071-2140

$3.28

92093

SEAL

92093-0002

$8.86

92093A

SEAL

92093-1583

$19.25

92171

CLAMP

92171-1539

$1.98

92171A

CLAMP

92171-1553

$11.86

92172

SCREW,TAPPING,5X20

92172-0009

$1.98

92172A

SCREW-PAN-CROS,5X25

92172-0056

$1.83

92191

TUBE,7X10X320

92191-0019

$11.76

92191A

TUBE

92191-1783

$45.93

92192

TUBE,10X16X51

92192-0004

$4.85

92192A

TUBE,12X18X290

92192-0007

$24.95

92192B

TUBE,10X16X29

92192-0009

$2.18
