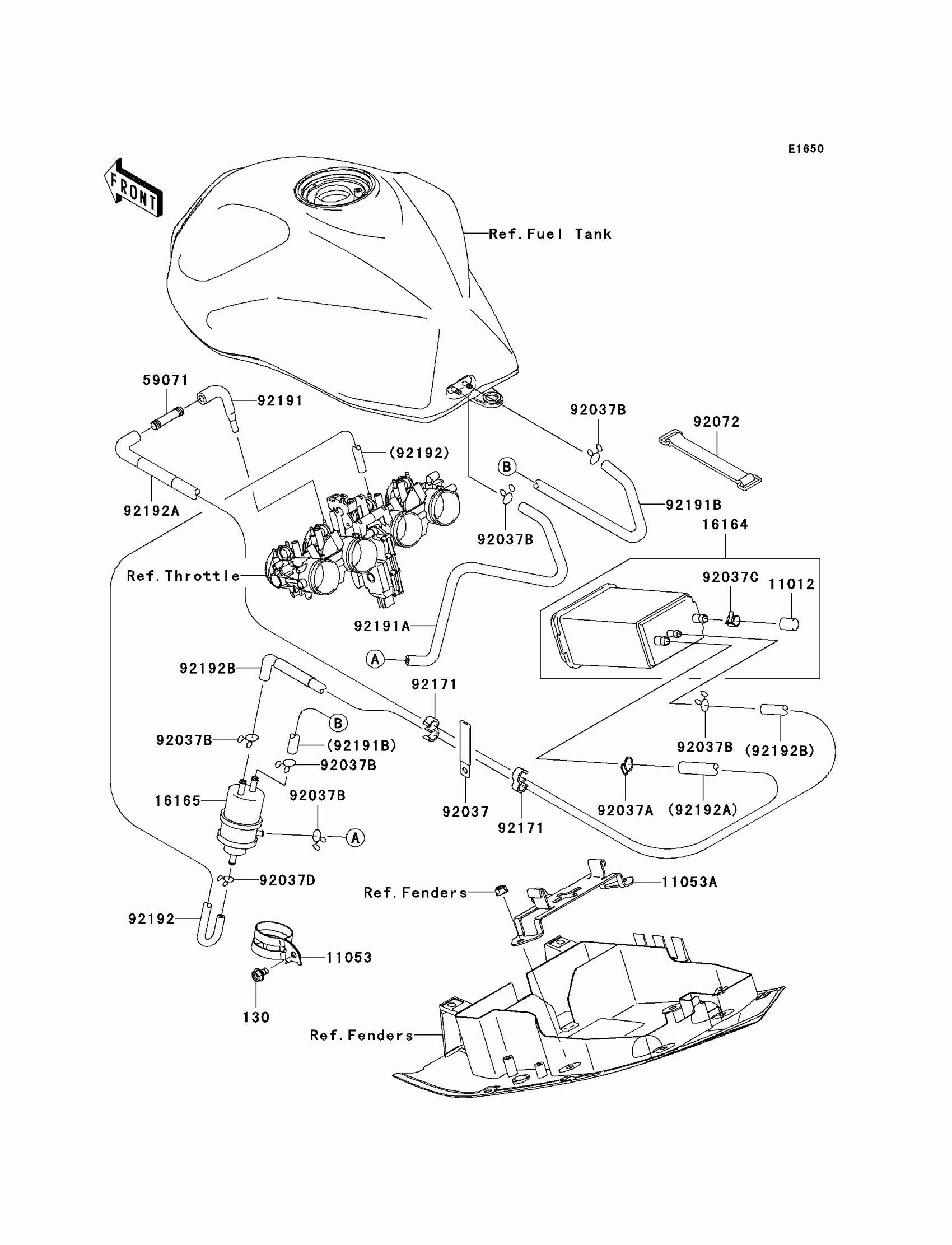

Kawasaki Z750S Fuel Evaporative System Diagram

Description

Price

130

BOLT-FLANGED,6X10

130G0610

Unavailable

11012

CAP,CANISTER

11012-1388

$8.31

11053

BRACKET,SEPARATOR

11053-1191

$11.92

11053A

BRACKET,CANISTER

11053-1611

$33.99

16164

CANISTER

16164-1054

$132.79

16165

SEPARATOR

16165-1001

$79.83

59071

JOINT

59071-3764

$7.51

92037

CLAMP,WIRING HARNESS,L=60

92037-1069

Unavailable

92037A

CLAMP-HOSE

92037-1104

$1.09

92037B

CLAMP,TUBE

92037-147

$5.61

92037C

CLAMP,CANISTER

92037-1512

$5.71

92037D

CLAMP

92037-1712

$3.81

92072

BAND

92072-1384

$10.44

92171

CLAMP

92171-1184

$2.03

92191

TUBE,THROTTLE-FITTING

92191-0031

$9.03

92191A

TUBE,TANK-SEPARATOR,RED

92191-1804

$15.41

92191B

TUBE,TANK-SEPARATOR,BLUE

92191-1805

$15.41

92192

TUBE,THROTTLE-SEPARATOR,WHITE

92192-0008

$15.41

92192A

TUBE,7X12X1185,GRN,PROTECTOR

92192-0179

$30.61

92192B

TUBE,CANISTER-SEPARATOR,BLUE

92192-0180

$30.61
