2010 Kawasaki Z750 (European) Frame Diagram

← All diagrams

Find the part on the Frame diagram for your 2010 Kawasaki Z750 (European), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

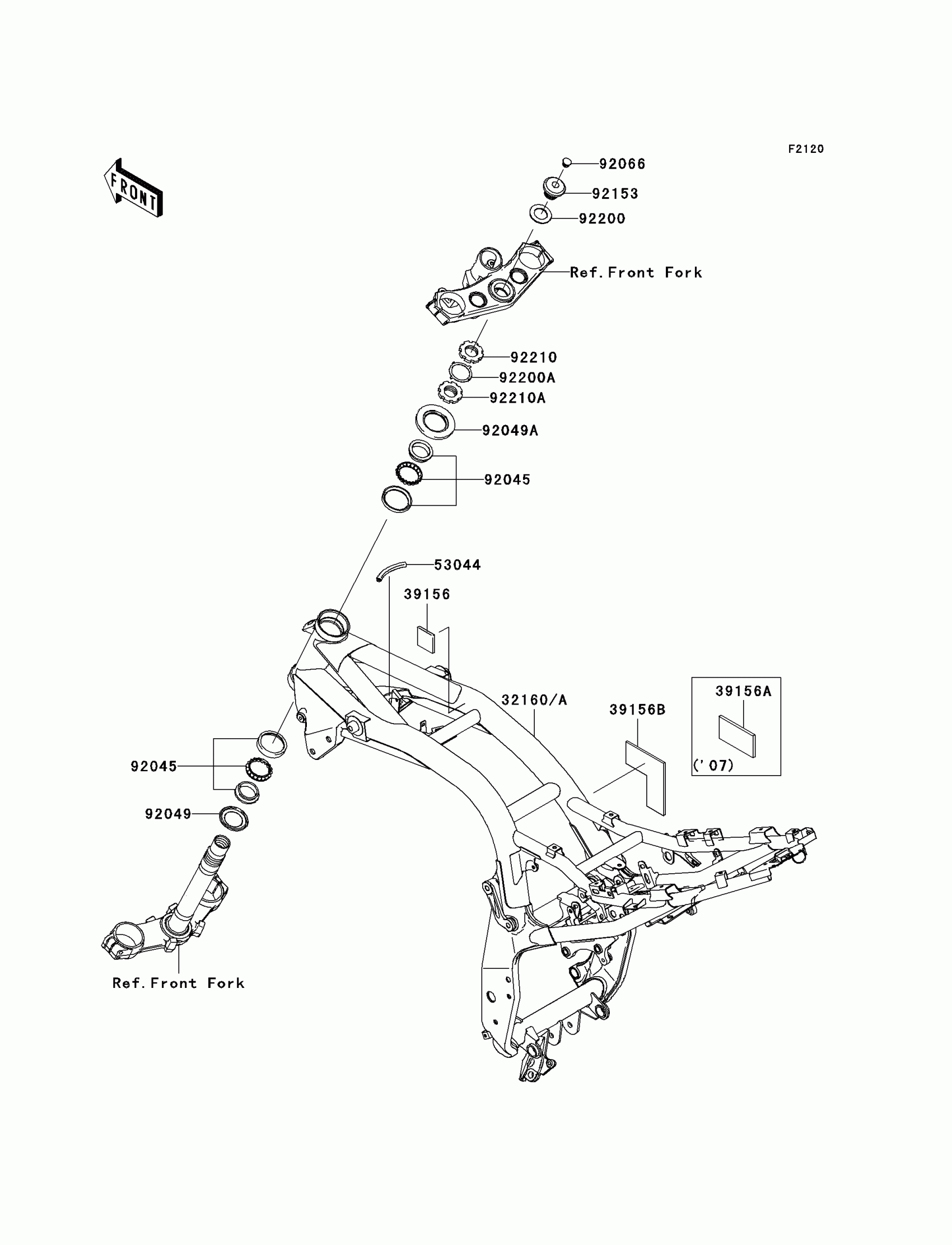

2010 Kawasaki Z750 (European) Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

32160A

FRAME-COMP,BLACK

32160-0263-18R

1

$2,326.81

In stock

39156

PAD

39156-0292

1

$2.68

In stock

39156B

PAD

39156-0343

1

$8.92

In stock

53044

TRIM

53044-0018

1

$4.14

In stock

92045

1

$41.48

In stock

92049

SEAL-OIL,DS35X55X4

92049-0022

1
Out of stock

92049A

SEAL-OIL,MX043N2

92049-1483

1
Out of stock

92066

PLUG

92066-0071

1

$2.68

In stock

92153

BOLT,26MM

92153-0474

1
Out of stock

92200

WASHER,27X42X2.3

92200-0081

1
Out of stock

92200A

WASHER

92200-0281

1
Out of stock

92210

NUT,STEERING STEM 35MM

92210-0062

1
Out of stock

92210A

NUT,STEERING STEM,35MM

92210-0077

1
Out of stock
