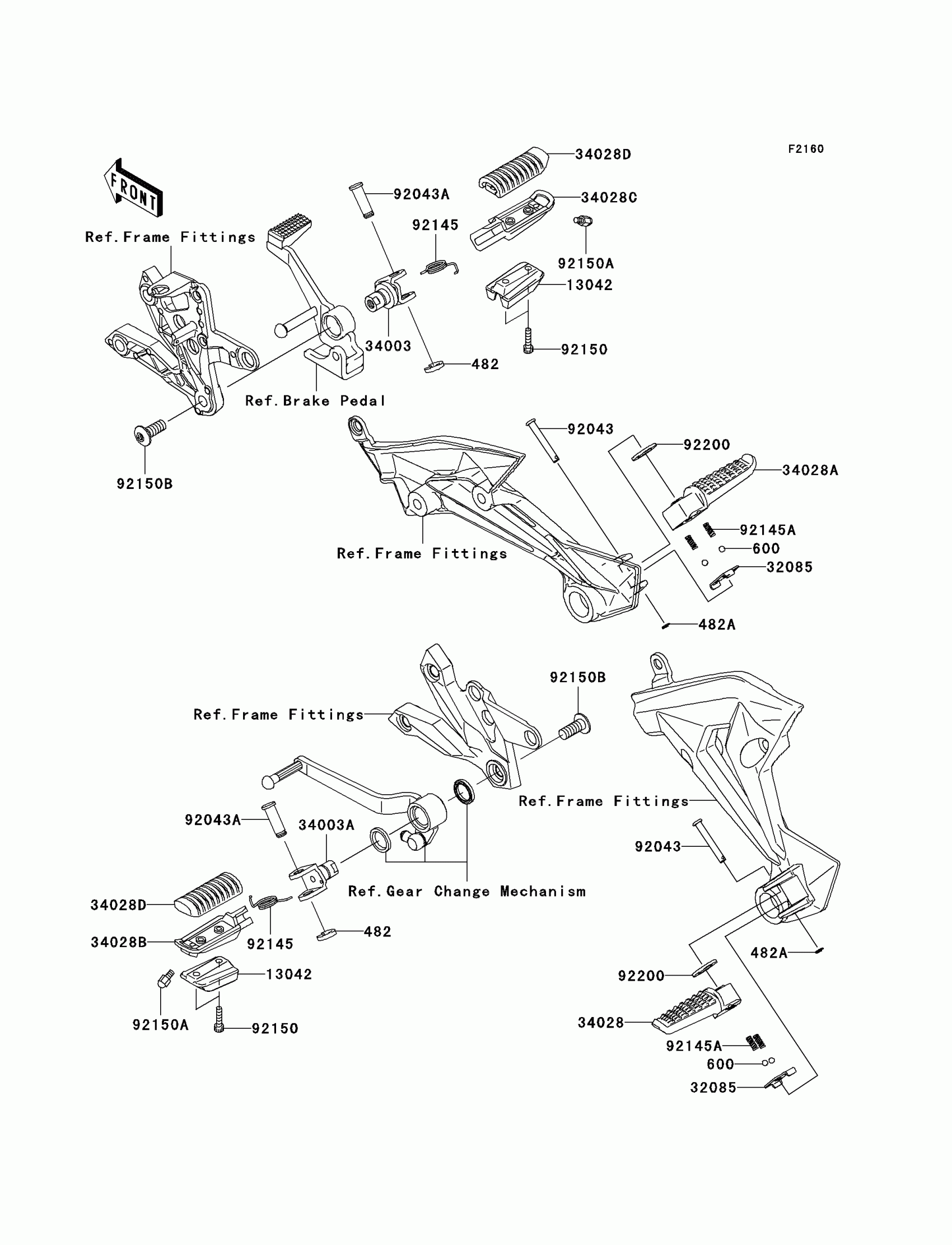

Kawasaki Z750 (European) Footrests Diagram

Description

Price

482

CIRCLIP-TYPE-E,10MM

482EA0100

$0.85

482A

CIRCLIP-TYPE-E

482EA5000

$1.04

600

BALL-STEEL,1/4

600A0800

$0.59

13042

WEIGHT,STEP

13042-0022

$42.29

32085

STOPPER,REAR STEP

32085-0047

$4.23

34003

HOLDER-STEP,FR,RH

34003-0025

$44.76

34003A

HOLDER-STEP,FR,LH

34003-1474

$46.99

34028

STEP,RR,LH

34028-0004

$73.38

34028A

STEP,RR,RH

34028-0005

$73.38

34028B

STEP,FR,LH

34028-1428

$46.40

34028C

STEP,FR,RH

34028-1429

$46.40

34028D

STEP,RUBBER

34028-1430

$18.36

92043

PIN,6X40

92043-1595

$1.68

92043A

PIN,12X37

92043-1641

Unavailable

92145

SPRING,STEP RETURN,LH

92145-0360

$3.49

92145A

SPRING

92145-1319

$1.33

92150

BOLT,SOCKET,5X20

92150-1019

$3.61

92150A

BOLT,BANK SENSOR

92150-1114

$10.93

92150B

BOLT,SOCKET,10X25

92150-1268

$4.67

92200

WASHER,16X26X2.3

92200-0043

$5.84
