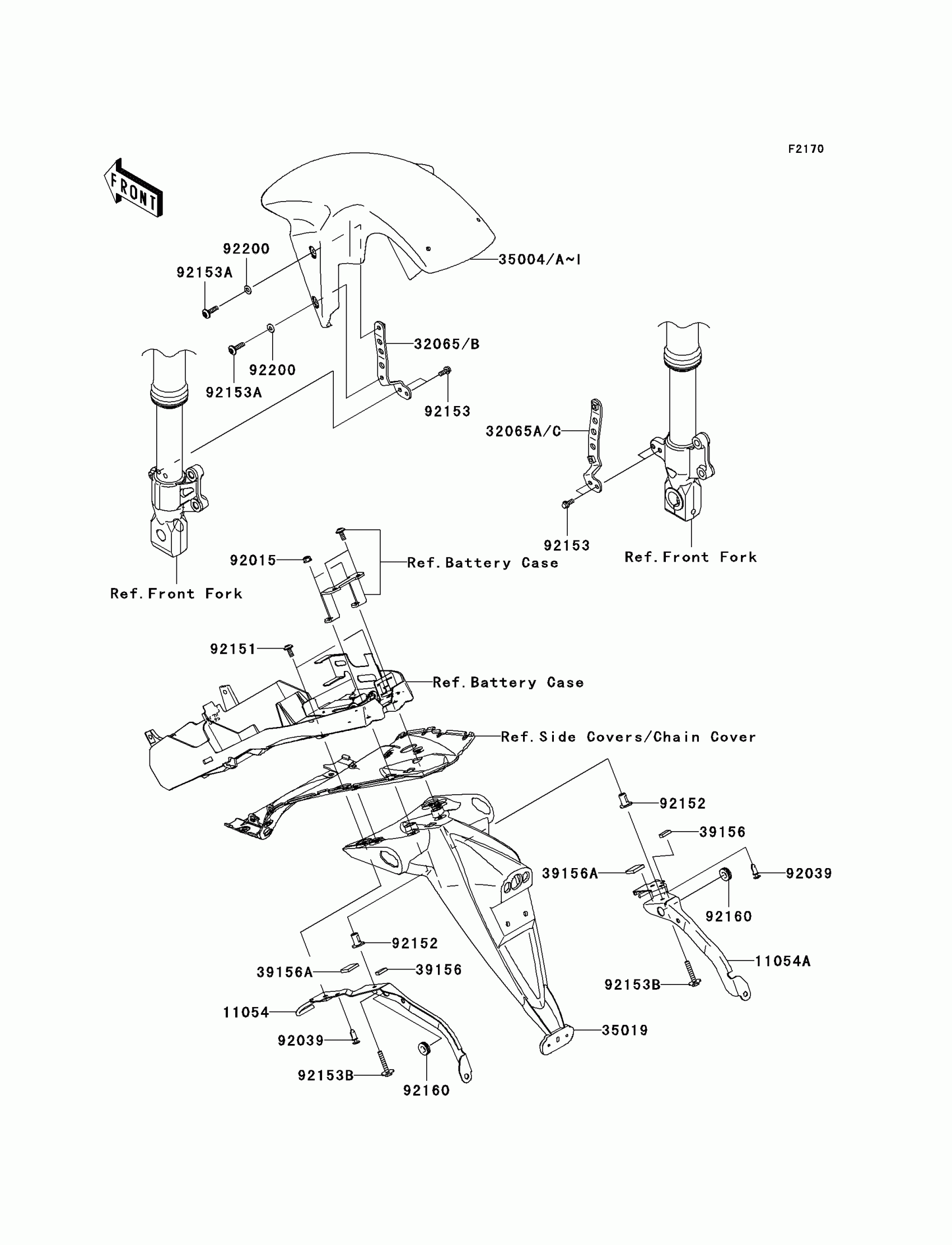

Kawasaki Z750 (European) Fenders Diagram

Description

Price

11054

BRACKET,FLAP,LH

11054-1921

$104.38

11054A

BRACKET,FLAP.RH

11054-1922

$104.38

32065B

BRACKET-FENDER,LH

32065-0058

$14.27

32065C

BRACKET-FENDER,RH

32065-0059

$14.27

35004F

FENDER-FRONT,P.S.WHITE

35004-0024-25Y

$224.28

35004G

FENDER-FRONT,C.S.ORANGE

35004-0024-28G

$219.27

35004H

FENDER-FRONT,M.S.BLACK

35004-0024-660

$212.58

35019

FLAP

35019-0047

$78.00

39156

PAD

39156-0284

$1.20

39156A

PAD

39156-0285

$1.20

92015

NUT,LOCK,FLANGED,6MM

92015-1603

$3.57

92039

RIVET

92039-1286

$2.53

92151

BOLT,SOCKET,6X14

92151-1654

$1.24

92152

COLLAR

92152-0577

$31.28

92153

BOLT,FLANGED,6X14

92153-0589

$2.34

92153A

BOLT,SOCKET,6X23

92153-1267

$1.98

92153B

BOLT,6X35

92153-1873

$2.68

92160

DAMPER

92160-1278

$3.35

92200

WASHER,6.5X14X1

92200-1388

$1.76
