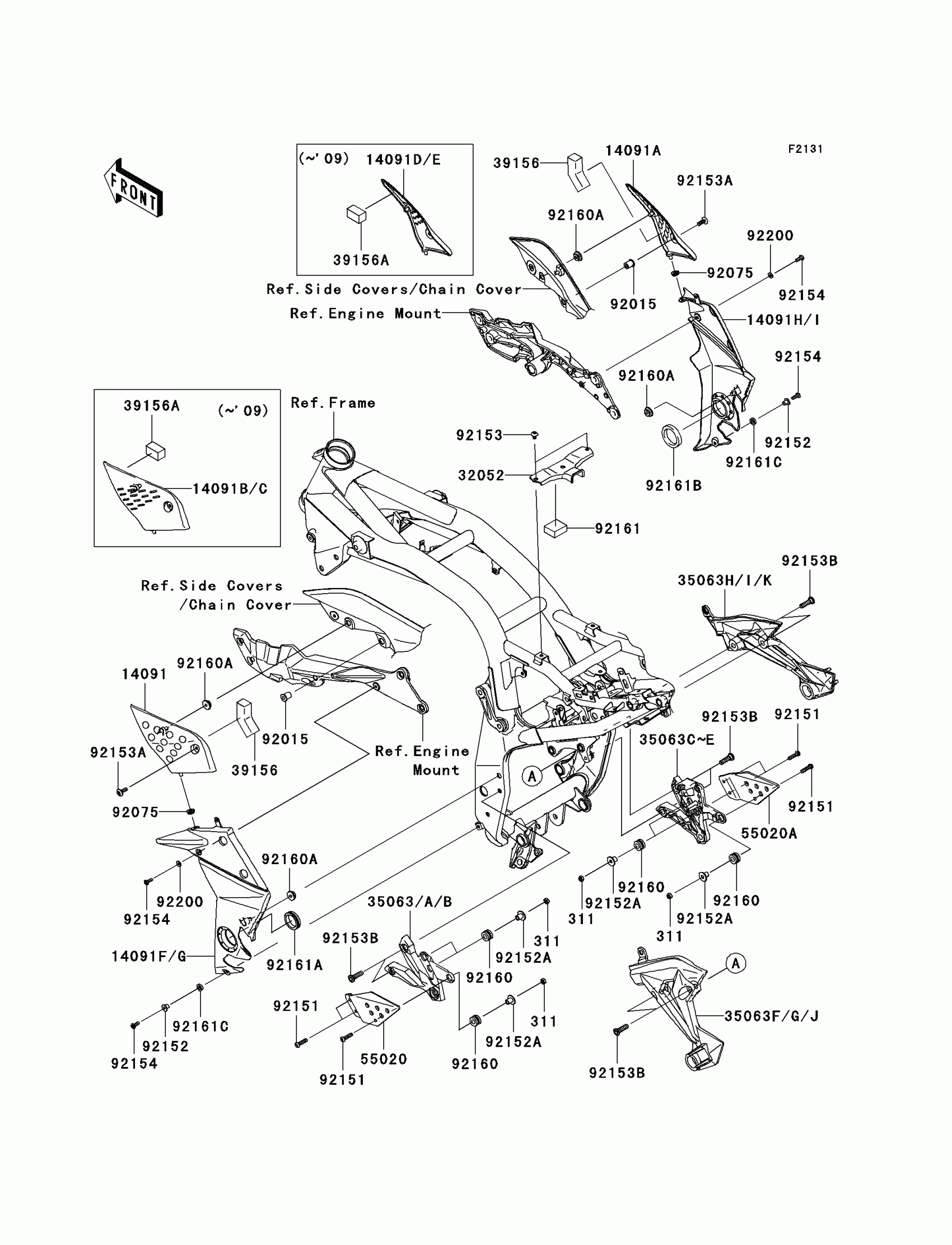

Kawasaki Z750 (European) Frame Fittings Diagram

#

Description
Price

14091

COVER,AIR CLEANER,LH,F.BLACK

14091-0602-6Z

$73.42

14091A

COVER,AIR CLEANER,RH,F.BLACK

14091-0603-6Z

$73.42

14091F

COVER,PIVOT,LH,BLACK

14091-0815-18T

$137.64

14091H

COVER,PIVOT,RH,BLACK

14091-0816-18T

$137.64

32052

BRACKET-TANK

32052-0068

$16.37

35063

STAY,FR,LH,BLACK

35063-0299-18R

$144.26

35063C

STAY,FR,RH,BLACK

35063-0300-18R

$144.26

35063J

STAY,RR,LH,BLACK

35063-0487-18R

$190.28

35063K

STAY,RR,RH,BLACK

35063-0488-18R

$190.28

39156

PAD

39156-0289

$4.42

55020

GUARD,FRONT STEP STAY,LH

55020-0237

$54.10

55020A

GUARD,FRONT STEP STAY,RH

55020-0238

$54.10

92015

NUT

92015-1700

$6.55

92075

DAMPER,6X16X7

92075-1011

$5.61

92151

BOLT,SOCKET,6X25

92151-1924

$2.00

92152

COLLAR

92152-0600

$3.29

92152A

COLLAR

92152-1074

$4.67

92153

BOLT,SOCKET,6X10

92153-0410

$1.98

92153A

BOLT,6X18

92153-0816

$1.57

92153B

BOLT,SOCKET,8X30

92153-1624

$2.98

92154

BOLT,SOCKET,5X16

92154-0209

$1.95

92160

DAMPER,10X20X12

92160-1167

$3.57

92160A

DAMPER

92160-1613

$2.84

311

NUT-HEX,6MM

311AA0600

$0.81

92161

DAMPER

92161-0063

$2.56

92161A

DAMPER

92161-0147

$3.59

92161B

DAMPER

92161-0148

$3.59

92161C

DAMPER

92161-0533

$3.29

92200

WASHER,NYLONE,5.3X11.5X0.5

92200-0006

$1.36
