2024 Kawasaki Z7 Hybrid Taillight Diagram

← All diagrams

Find the part on the Taillight diagram for your 2024 Kawasaki Z7 Hybrid, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

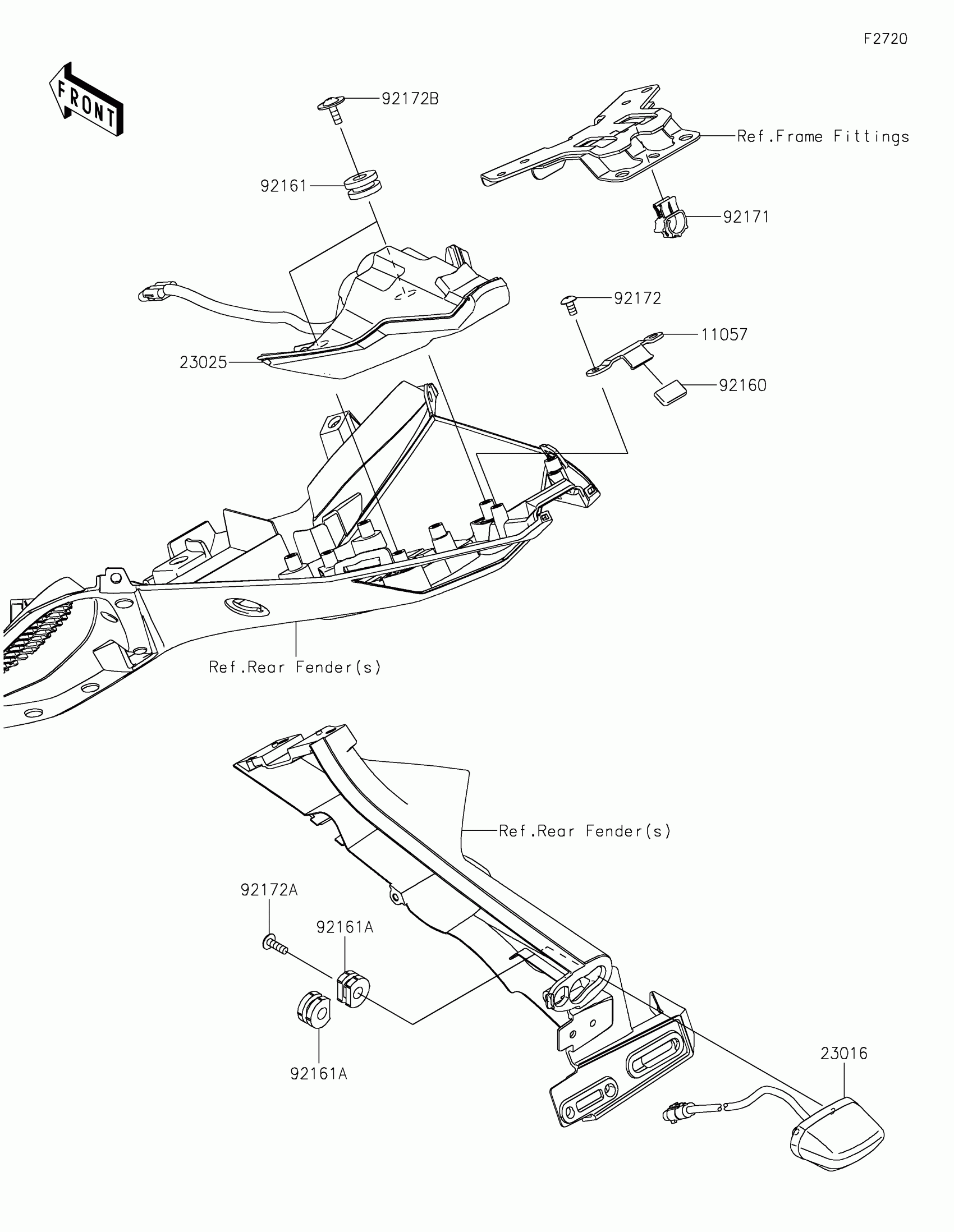

2024 Kawasaki Z7 Hybrid Taillight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11057

BRACKET

11057-1214

1
Out of stock

23016

LAMP-ASSY,LICENSE,LED

23016-0639

1
Out of stock

23025

LAMP-TAIL,LED

23025-0400

1
Out of stock

92160

DAMPER

92160-1190

1
Out of stock

92161

DAMPER

92161-0163

1
Out of stock

92161A

DAMPER

92161-0776

1
Out of stock

92171

CLAMP,EDGE CLIP

92171-1722

1
Out of stock

92172

SCREW,TAPPING,5X10

92172-0262

1
Out of stock

92172A

SCREW,TAPTITE,5X16

92172-0481

1
Out of stock

92172B

SCREW,5X16

92172-1215

1
Out of stock
