Find the part on the Electric Motor diagram for your 2024 Kawasaki Z7 Hybrid, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

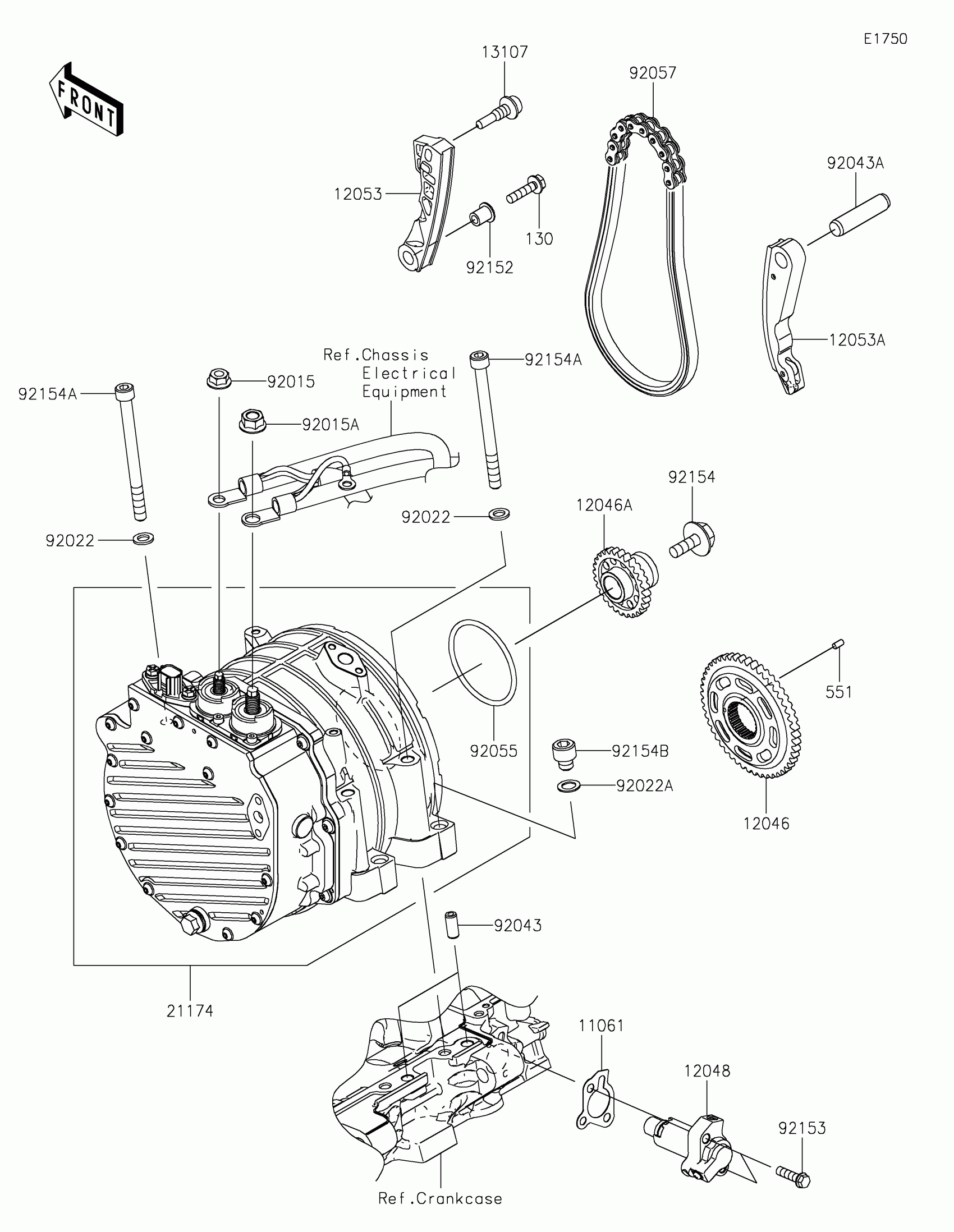

2024 Kawasaki Z7 Hybrid Electric Motor Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11061

GASKET,TENSIONER

11061-0796

1
Out of stock

12046

SPROCKET,DRIVEN

12046-0636

1
Out of stock

12046A

SPROCKET,DRIVE

12046-0637

1
Out of stock

12048

TENSIONER-ASSY

12048-0130

1
Out of stock

12053

GUIDE-CHAIN,FR

12053-0319

1
Out of stock

12053A

GUIDE-CHAIN,RR

12053-0320

1
Out of stock

13107

SHAFT,CHAIN GUIDE

13107-0157

1
Out of stock

21174

MOTOR-ELECTRIC

21174-0030

1
Out of stock

92015

NUT,FLANGED,8MM

92015-1014

1
Out of stock

92015A

NUT,10MM

92015-1021

1
Out of stock

92022

WASHER,8.5X14.5X1.6

92022-1470

1
Out of stock

92022A

WASHER,10.2X16X1

92022-1829

1
Out of stock

92043

PIN

92043-1770

1
Out of stock

92043A

PIN

92043-1774

1
Out of stock

92055

RING-O,59.6X3.5

92055-0974

1
Out of stock

92057

CHAIN,T112

92057-0865

1
Out of stock

92152

COLLAR

92152-0413

1
Out of stock

92153

BOLT,FLANGED-SMALL,6X22

92153-1560

1
Out of stock

92154

BOLT,FLANGED,8X23

92154-0187

1
Out of stock

92154A

BOLT,SOCKET,8X100

92154-4478

1
Out of stock

92154B

BOLT,SOCKET,10X10

92154-7167

1
Out of stock

92154C

BOLT

92154-7886

1
Out of stock

92200

WASHER

92200-2880

1
Out of stock

130

BOLT-FLANGED,6X25

130CA0625

1

$3.53

In stock

551

PIN-DOWEL,4X8

551A0408

1
Out of stock
