2022 Kawasaki Z650RS Taillight Diagram

← All diagrams

Find the part on the Taillight diagram for your 2022 Kawasaki Z650RS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

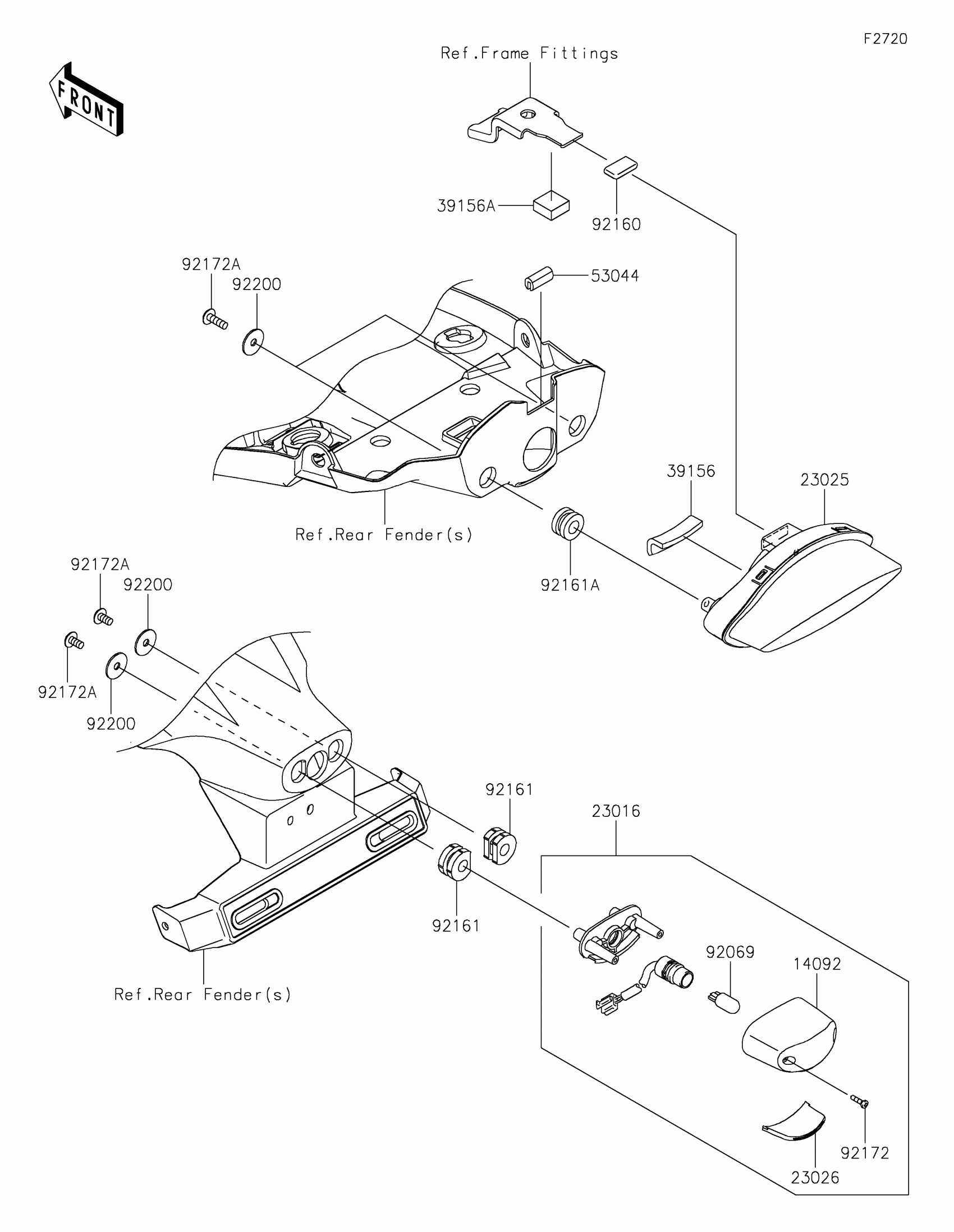

2022 Kawasaki Z650RS Taillight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

14092

COVER,LICENSE LAMP

14092-0001

1

$20.17

In stock

23016

LAMP-ASSY,LICENCE

23016-0610

1

$69.82

In stock

23025

LAMP-TAIL,LED,CCC

23025-0381

1

$258.77

In stock

23026

LENS,LICENCE LAMP

23026-0035

1

$29.34

In stock

39156

PAD,40X20X4

39156-2690

1

$1.12

In stock

39156A

PAD,18X18X8

39156-2789

1

$1.12

In stock

53044

TRIM,L=20

53044-1292

1

$2.53

In stock

92069

BULB,12V 5W

92069-1016

1

$5.16

In stock

92160

DAMPER

92160-1190

1

$3.25

In stock

92161

DAMPER

92161-0776

1

$4.39

In stock

92161A

DAMPER

92161-2375

1

$1.22

In stock

92172

1

$1.53

In stock

92172A

SCREW,TAPPING,5X16

92172-0427

1

$2.10

In stock

92200

WASHER,5.5X20X1.2

92200-0284

1
Out of stock
