2022 Kawasaki Z650RS Meter Diagram

← All diagrams

Find the part on the Meter diagram for your 2022 Kawasaki Z650RS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

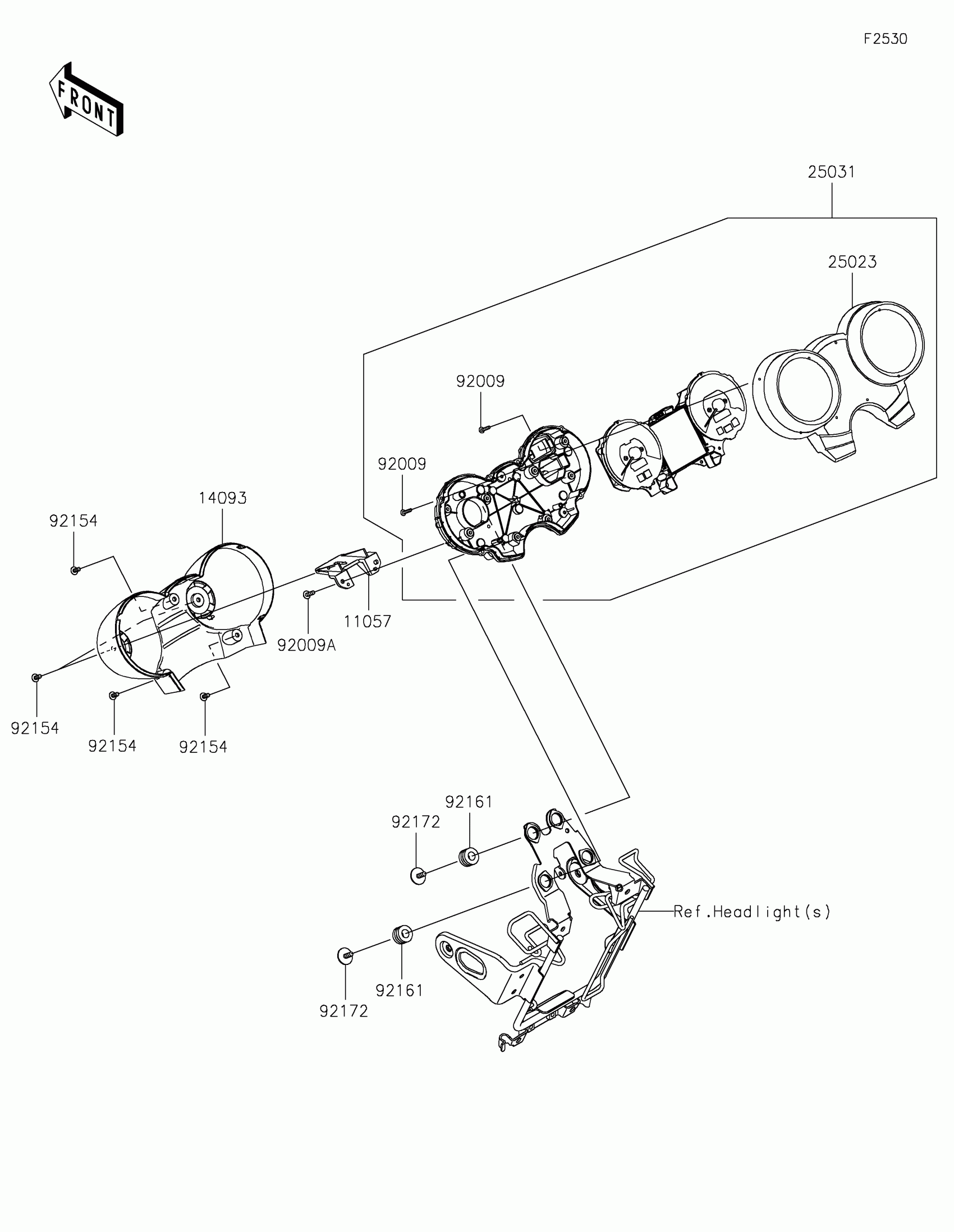

2022 Kawasaki Z650RS Meter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11057

BRACKET

11057-0912

1
Out of stock

14093

COVER,METER,LWR

14093-1110

1

$164.68

In stock

25023

1

$167.23

In stock

25031

METER-ASSY,MPH

25031-0979

1

$1,183.08

In stock

92009

SCREW,TAPPING,3X16

92009-1391

1
Out of stock

92009A

SCREW,TAPPING,4X14

92009-1792

1
Out of stock

92154

BOLT,TORX,4X10

92154-4103

1

$1.93

In stock

92161

DAMPER

92161-2375

1

$1.22

In stock

92172

1

$2.25

In stock
