2022 Kawasaki Z650RS Ignition System Diagram

← All diagrams

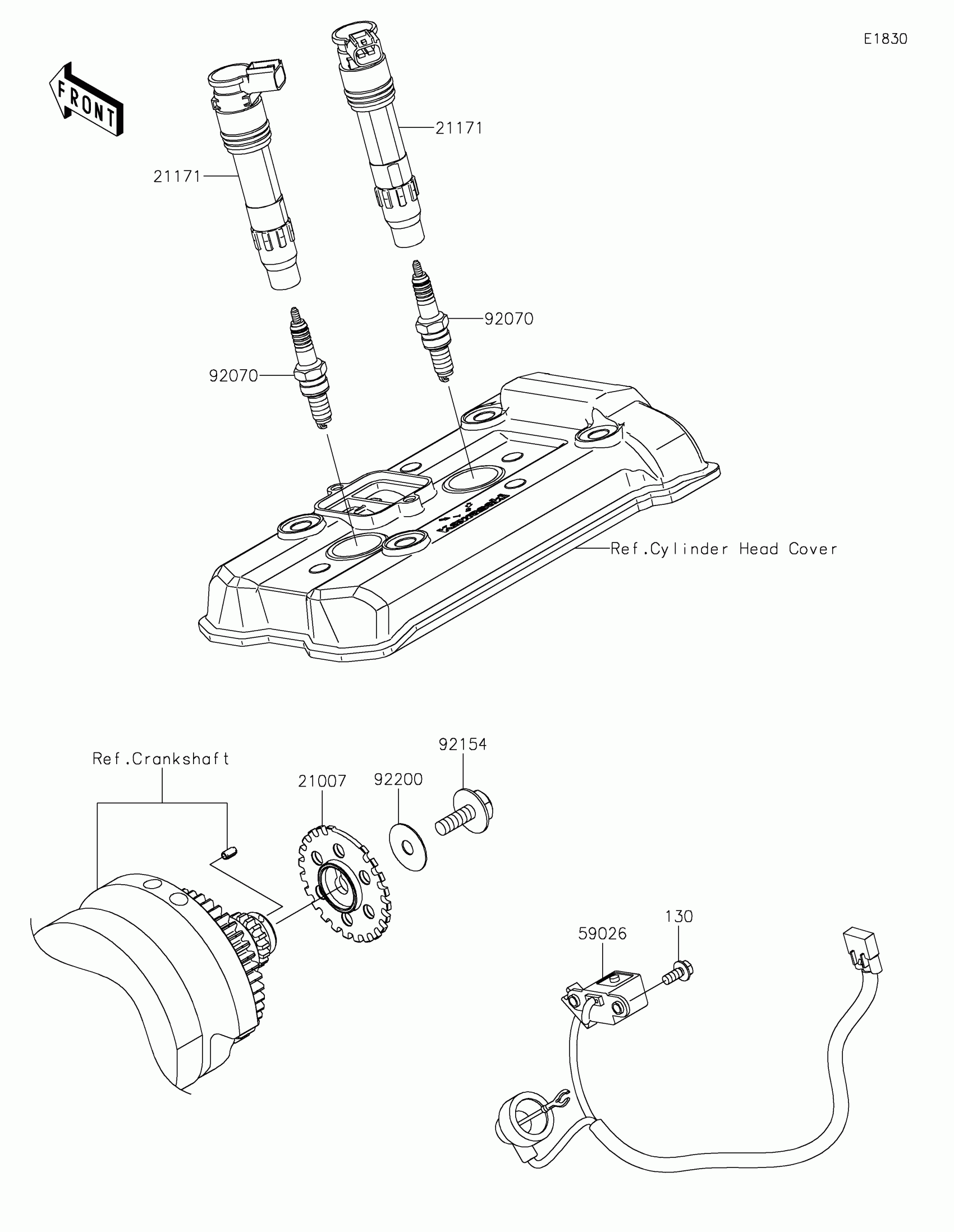

Find the part on the Ignition System diagram for your 2022 Kawasaki Z650RS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2022 Kawasaki Z650RS Ignition System Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

21007

ROTOR,PULSING

21007-0053

1

$17.39

In stock

21171

COIL-ASSY-IGNITION

21171-0033

1

$116.33

In stock

59026

COIL-PULSING

59026-0045

1

$75.97

In stock

92070

PLUG-SPARK,CR9EIA(NGK)

92070-0014

1
Out of stock

92154

BOLT,FLANGED,8X23

92154-0187

1

$7.47

In stock

92200

WASHER,8.5X28X0.8

92200-0274

1
Out of stock

130

BOLT-FLANGED,5X12

130BA0512

1

$1.80

In stock
