2022 Kawasaki Z650RS Chassis Electrical Equipment Diagram

← All diagrams

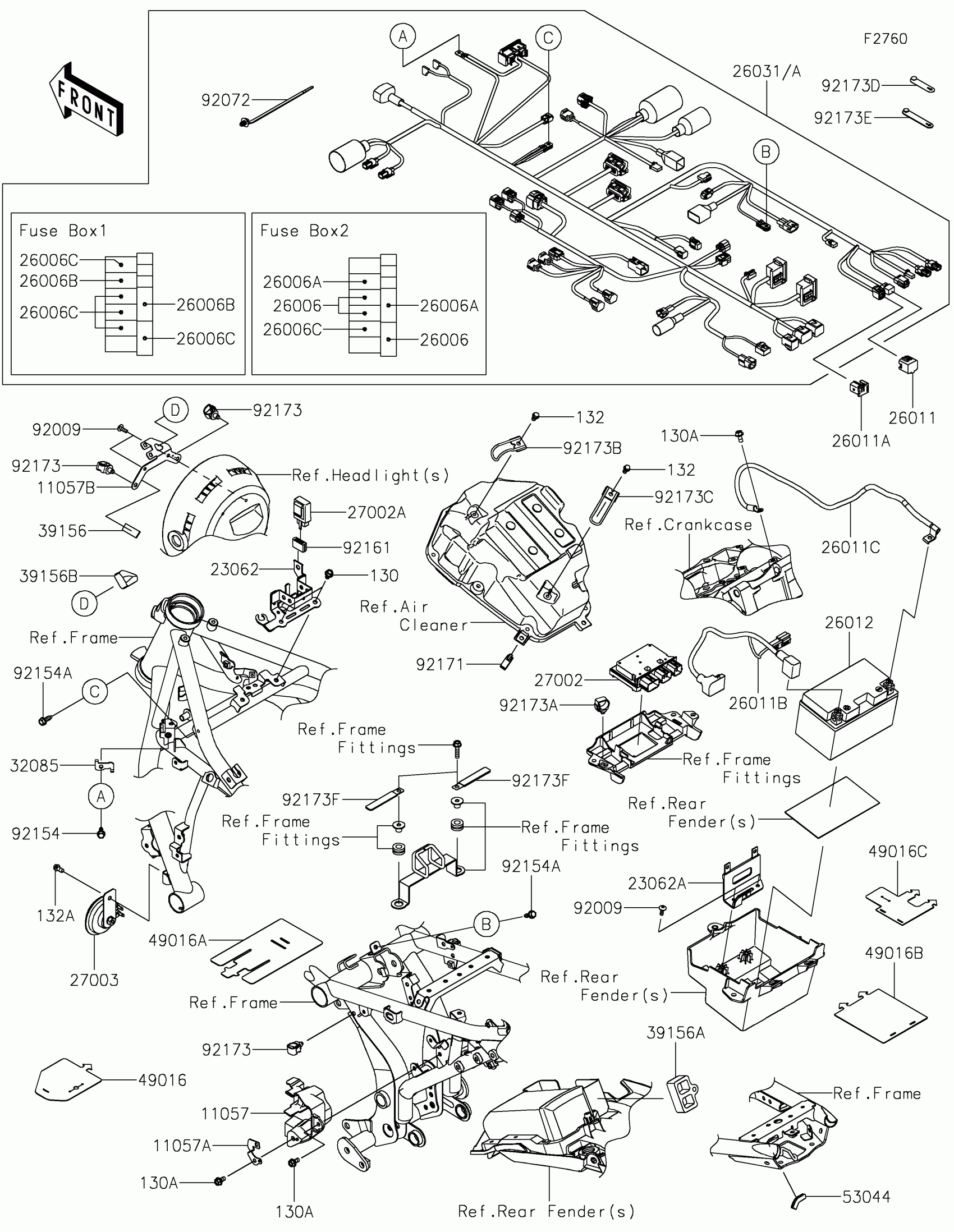

Find the part on the Chassis Electrical Equipment diagram for your 2022 Kawasaki Z650RS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2022 Kawasaki Z650RS Chassis Electrical Equipment Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11057

1

$7.78

In stock

11057A

BRACKET,COUPLER

11057-0138

1

$2.20

In stock

11057B

BRACKET,SIGNAL LAMP

11057-7138

1

$4.47

In stock

11057C

BRACKET,RELAY

11057-7590

1

$3.12

In stock

23062

BRACKET-COMP

23062-1318

1

$12.71

In stock

23062A

1

$8.95

In stock

26006

1

$5.34

In stock

26006A

1

$5.71

In stock

26006B

1

$4.32

In stock

26006C

1

$3.50

In stock

26011

1

$13.42

In stock

26011A

1

$33.83

In stock

26011B

1

$46.37

In stock

26011C

1

$34.75

In stock

26012

1

$224.48

In stock

26031

HARNESS,MAIN

26031-3883

1

$1,036.23

In stock

27002

1

$55.88

In stock

27002A

RELAY-ASSY

27002-0050

1

$140.25

In stock

27003

HORN

27003-0158

1

$69.50

In stock

32085

STOPPER

32085-0890

1

$1.39

In stock

39156

PAD,12X32.8X2

39156-2336

1

$1.17

In stock

39156A

1

$7.51

In stock

39156B

PAD

39156-2819

1

$2.64

In stock

49016

COVER-SEAL

49016-0645

1

$5.63

In stock

49016A

1

$9.31

In stock

49016B

1

$4.58

In stock

49016C

1

$3.66

In stock

53044

TRIM,L=30

53044-0001

1

$2.29

In stock

92009

SCREW,TAPPING,5X14

92009-1197

1
Out of stock

92072

—

$2.97

In stock

92154

BOLT,FLANGED,6X16

92154-0551

1

$1.44

In stock

92154A

BOLT,FLANGED,6X18

92154-4008

1

$1.22

In stock

92161

DAMPER,15X25X8.5

92161-1443

1

$1.66

In stock

92171

CLAMP,BRAKE HOSE

92171-0316

1

$3.08

In stock

92172

SCREW,TAPPING,5X16

92172-0742

1

$1.66

In stock

92173

CLAMP,12MM DIA.

92173-0736

1

$4.01

In stock

92173A

CLAMP,HOLDER CLIP

92173-0868

1

$2.44

In stock

92173B

CLAMP,A/C CASE,FR

92173-1586

1

$4.93

In stock

92173C

CLAMP,A/C CASE,RR

92173-1587

1

$4.93

In stock

92173D

CLAMP

92173-2198

1

$1.32

In stock

92173E

CLAMP

92173-2199

1

$1.32

In stock

92173F

CLAMP

92173-2480

1

$2.29

In stock

130

BOLT-FLANGED,6X10

130BA0610

1

$1.12

In stock

130A

BOLT-FLANGED,6X12

130BA0612

1

$1.46

In stock

132

1

$1.47

In stock

132A

1

$1.73

In stock
