2022 Kawasaki Z650RS Muffler Diagram

← All diagrams

Find the part on the Muffler diagram for your 2022 Kawasaki Z650RS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

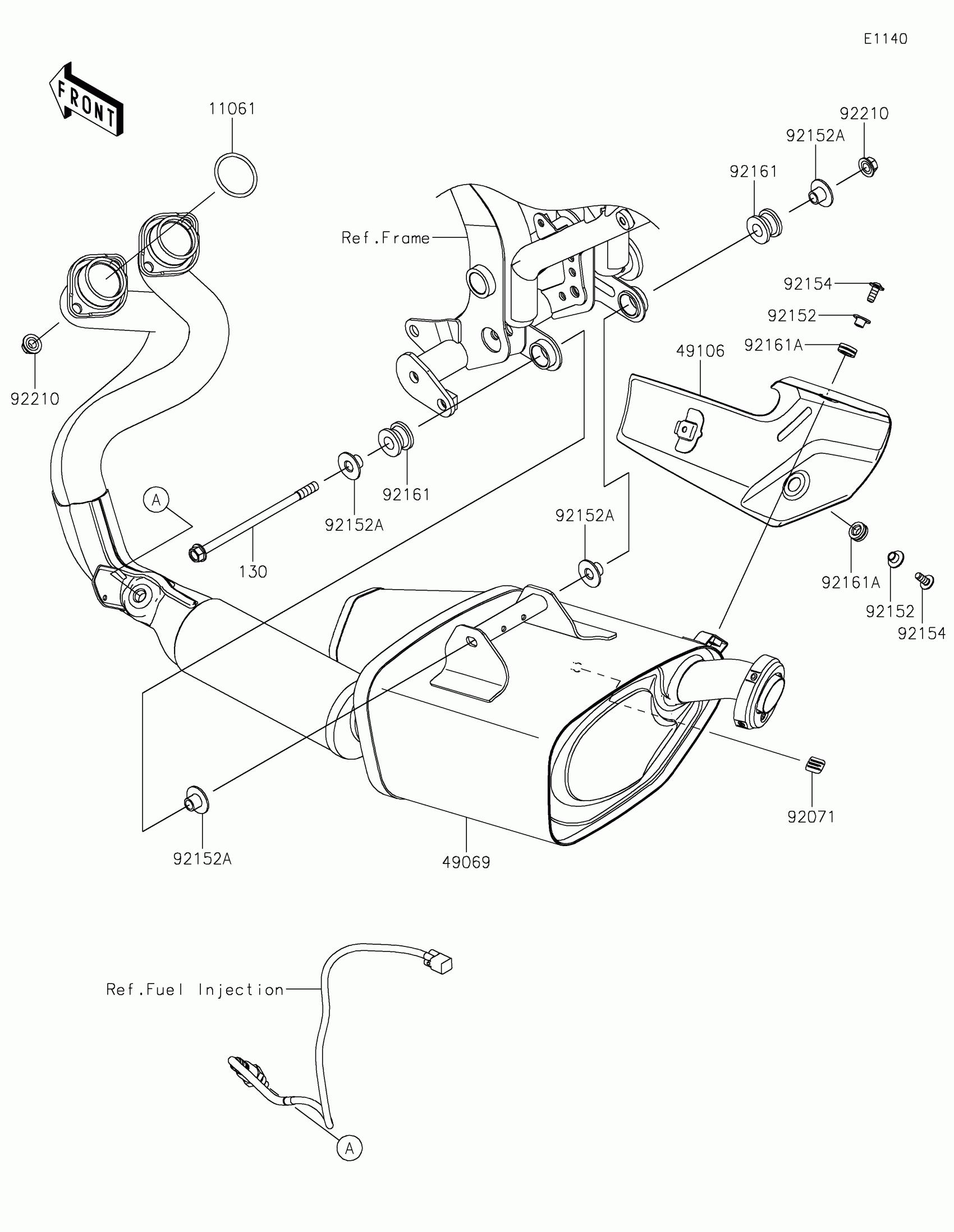

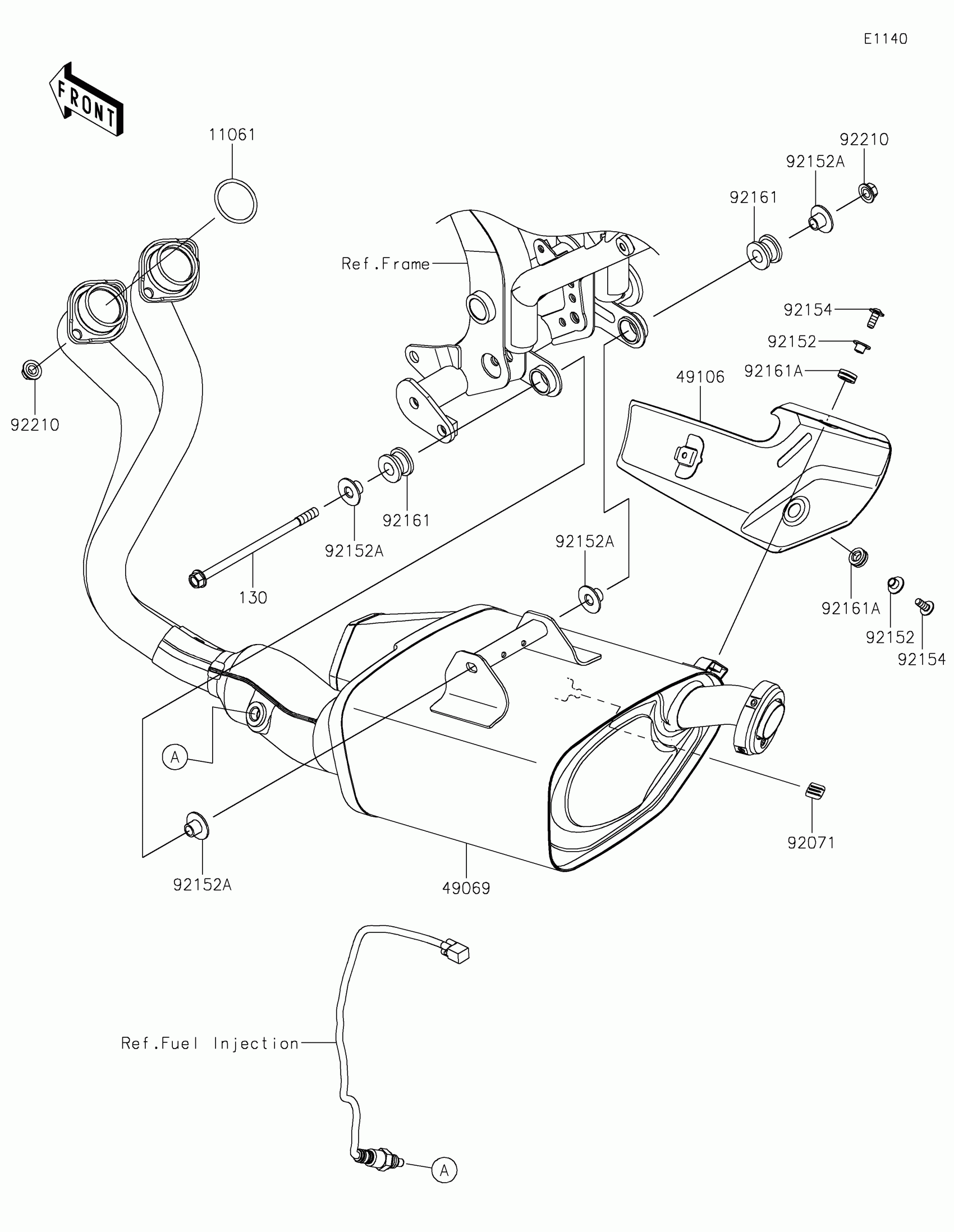

2022 Kawasaki Z650RS Muffler Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11061

1

$6.27

In stock

49069

MUFFLER-ASSY

49069-0881

1

$1,158.33

In stock

49106

COVER-MUFFLER

49106-0861

1
Out of stock

92071

GROMMET

92071-0760

1

$5.21

In stock

92152

COLLAR,6.3X8.3X16

92152-1602

1
Out of stock

92152A

COLLAR

92152-2367

1
Out of stock

92154

BOLT,SOCKET,6X14

92154-0856

1

$1.66

In stock

92161

DAMPER

92161-0193

1

$5.29

In stock

92161A

DAMPER

92161-1475

1

$4.23

In stock

92210

NUT,8MM

92210-1114

1
Out of stock

130

BOLT-FLANGED,8X145

130CD08145

1

$3.56

In stock
