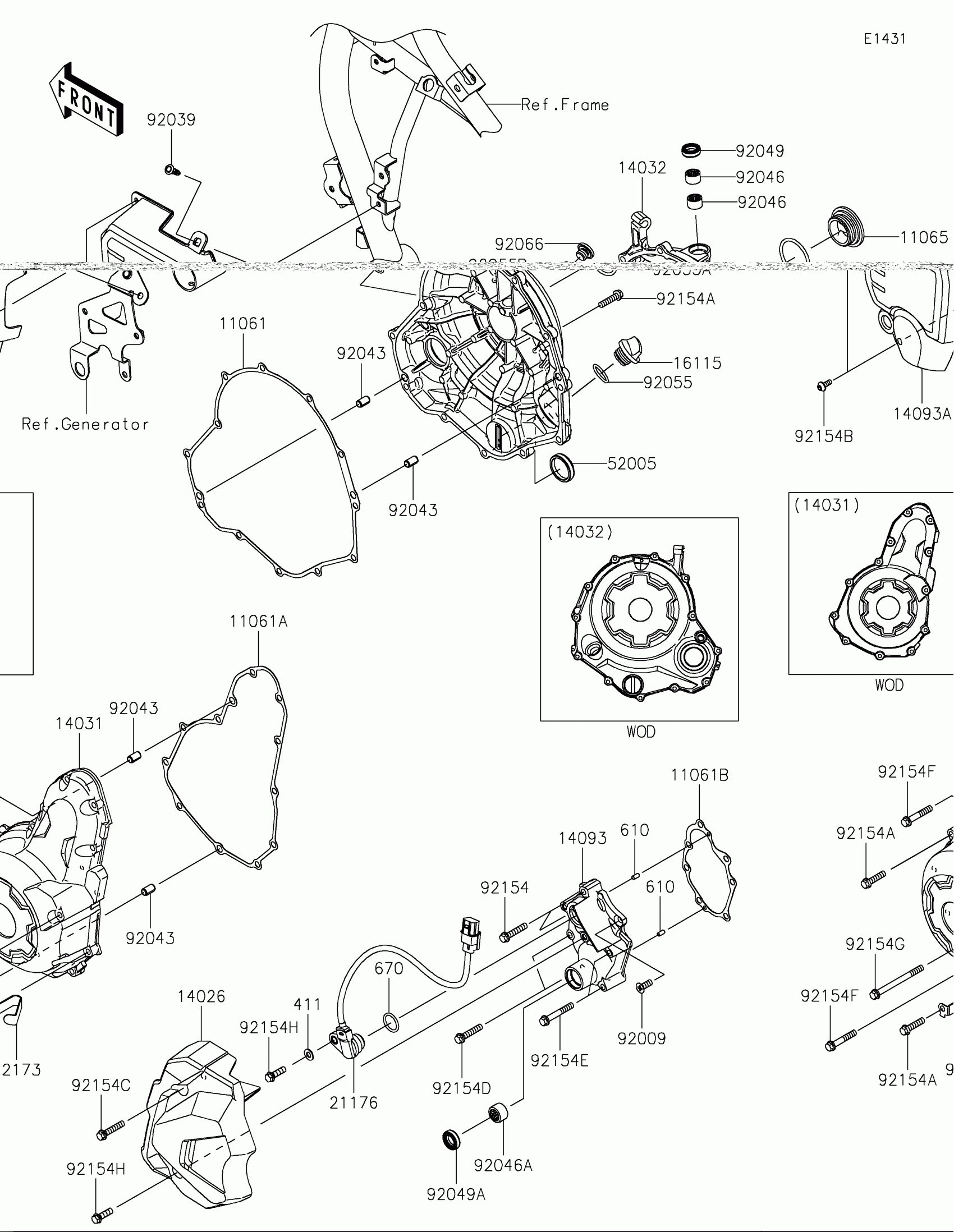

2022 Kawasaki Z650RS Engine Cover Diagram
Find the part on the Engine Cover diagram for your 2022 Kawasaki Z650RS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.
#
Description
Qty in Assembly
Price
Status
Order Qty
92009
SCREW,6X16
92009-1360
1
Out of stock
92046A
BEARING-NEEDLE,HK1312
92046-1148
1
Out of stock
92049
SEAL-OIL,CLUTCH RELEASE
92049-1475
1
Out of stock
92049A
SEAL-OIL,TC13225.5
92049-1519
1
Out of stock
92055
RING-O,19.8MM
92055-0844
1
Out of stock
92055A
RING-O,39.4MM
92055-0849
1
Out of stock
