2022 Kawasaki Z650RS Fuel Tank Diagram

← All diagrams

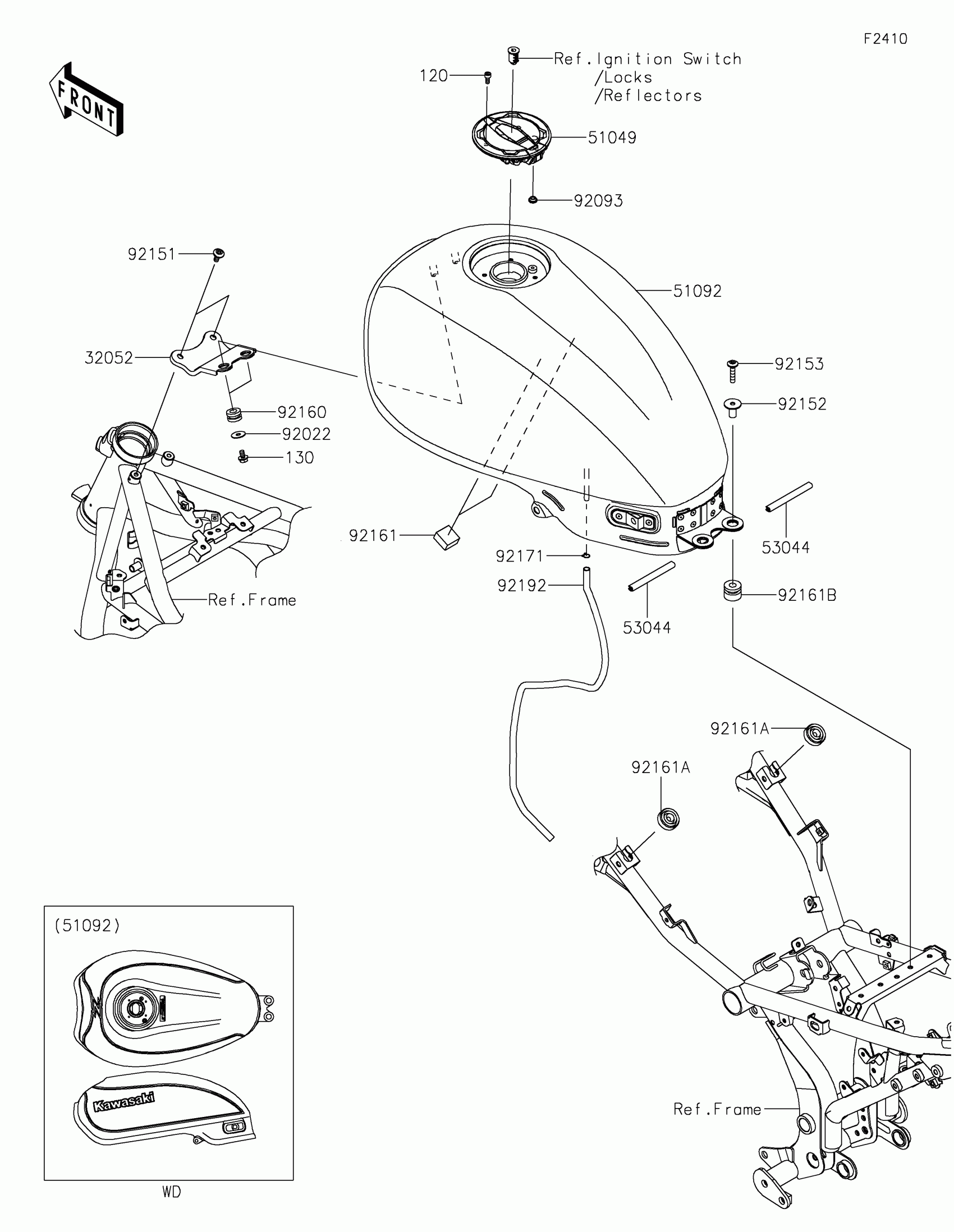

Find the part on the Fuel Tank diagram for your 2022 Kawasaki Z650RS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2022 Kawasaki Z650RS Fuel Tank Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

32052

BRACKET-TANK

32052-0846

1

$9.85

In stock

51049

CAP-TANK,FUEL

51049-0756

1

$139.17

In stock

51092

TANK-COMP-FUEL,C.D.BROWN

51092-5210-18A

1

$2,015.18

In stock

53044

TRIM,L=85

53044-0556

1

$9.96

In stock

92022

1

$3.29

In stock

92093

SEAL,FUEL TANK CAP

92093-1030

1

$6.18

In stock

92151

BOLT,SOCKET,6X14

92151-1654

1

$1.56

In stock

92152

COLLAR,6.5X10X21.1

92152-2325

1
Out of stock

92153

BOLT,SOCKET,6X30

92153-1528

1
Out of stock

92160

DAMPER,10X20X12

92160-1167

1

$3.72

In stock

92161

DAMPER,T=13

92161-0792

1

$3.27

In stock

92161A

DAMPER,14X30X10

92161-1368

1

$1.93

In stock

92161B

DAMPER,10X24X19

92161-1929

1

$1.81

In stock

92171

CLAMP,8X0.7

92171-1973

1

$1.20

In stock

92192

TUBE,6X9X620

92192-1085

1
Out of stock

120

BOLT-SOCKET,5X12

120CA0512

1

$1.37

In stock

130

BOLT-FLANGED,6X10

130BA0610

1

$1.12

In stock
