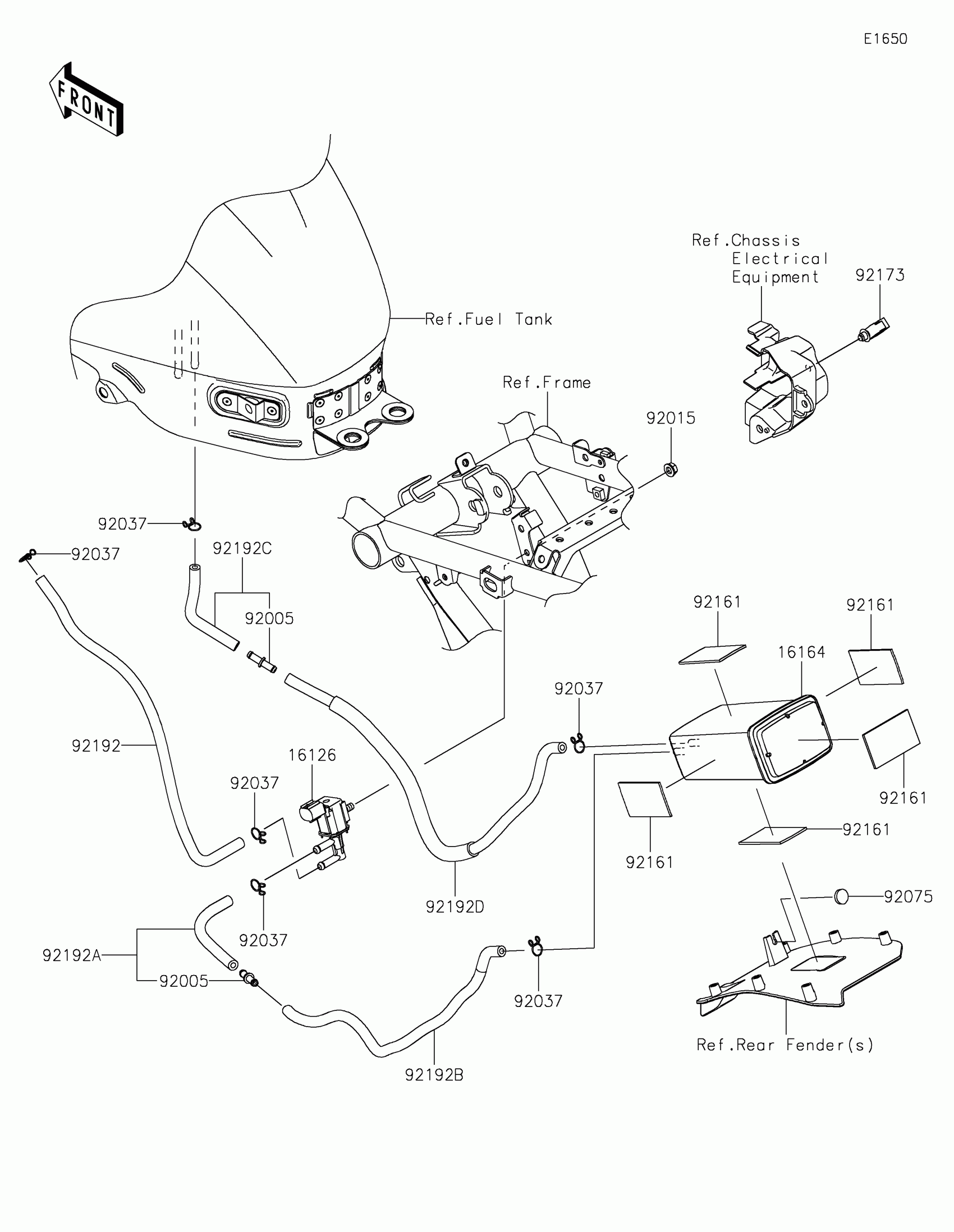

Kawasaki Z650RS Fuel Evaporative System Diagram

Description

Price

16126

VALVE,SOLENOID

16126-0705

$109.25

16164

CANISTER

16164-0012

$152.89

92005

FITTING

92005-0721

$8.85

92015

NUT,FLANGED,6MM

92015-1367

$2.53

92037

CLAMP,TUBE

92037-147

$5.61

92075

DAMPER,BOOST SENSOR

92075-2113

$0.92

92161

DAMPER

92161-1883

$1.27

92173

CLAMP,HOLDER CLIP

92173-0868

$2.11

92192

TUBE,VALVE-THROTTLE BODY

92192-1661

$47.57

92192A

TUBE,VALVE-FITTING

92192-1700

$28.82

92192B

TUBE,CANISTER(OUT)-FITTING

92192-2489

$46.24

92192C

TUBE,TANK SIDE

92192-2490

$38.86

92192D

TUBE,CANISTER(IN) SIDE

92192-2491

$67.40
