2019 Kawasaki Z650 Taillight Diagram

← All diagrams

Find the part on the Taillight diagram for your 2019 Kawasaki Z650, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

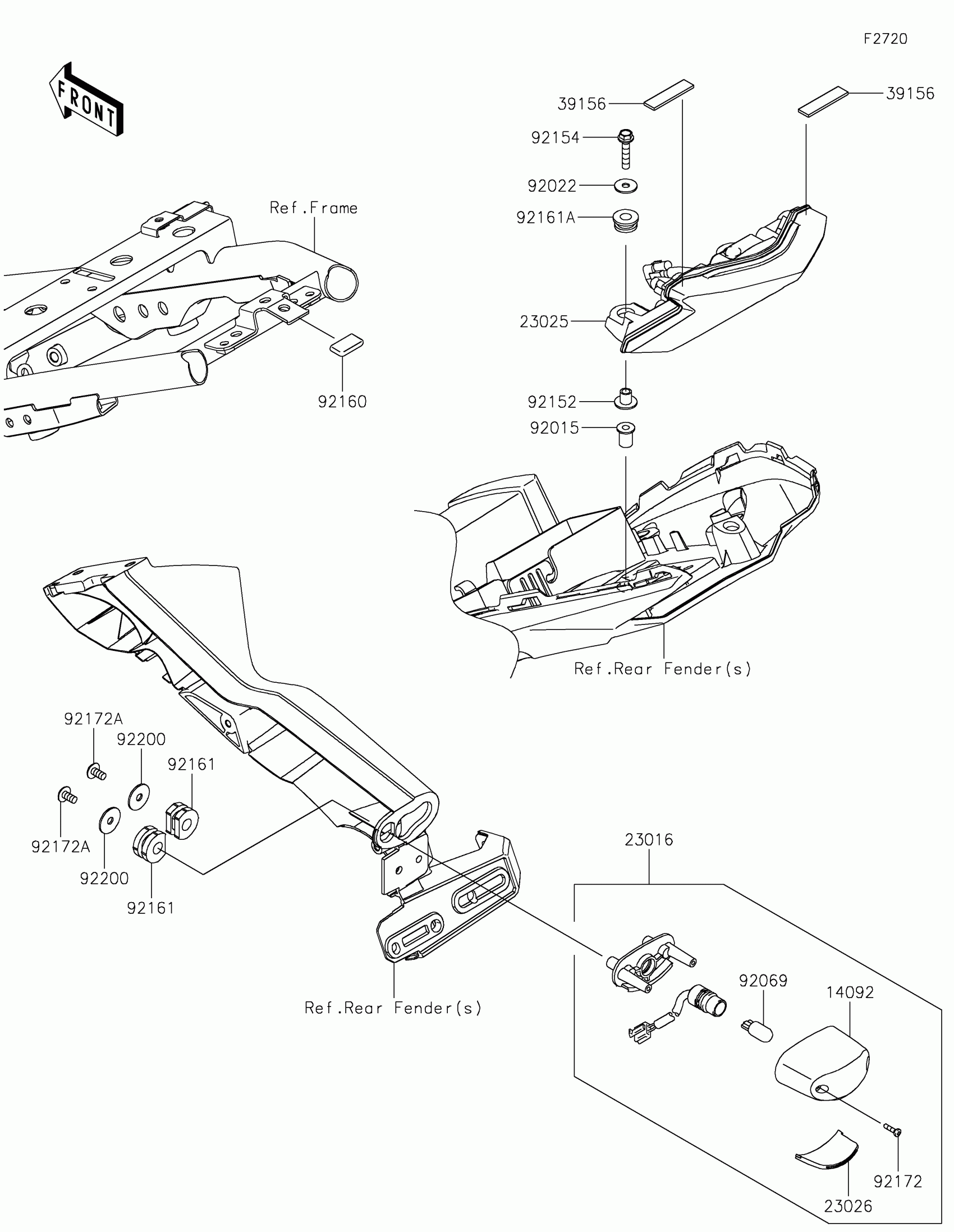

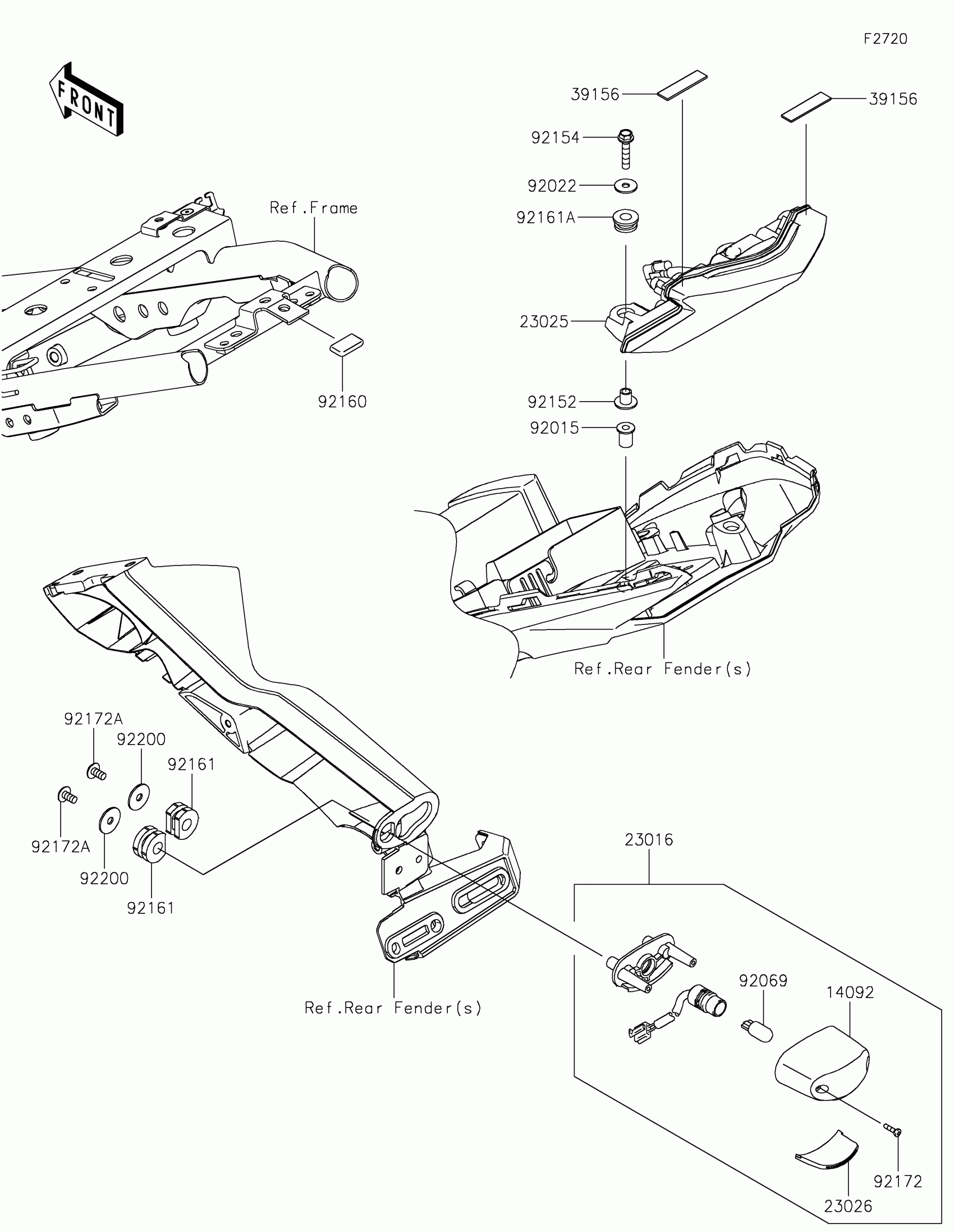

2019 Kawasaki Z650 Taillight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

14092

COVER,LICENSE LAMP

14092-0001

1

$20.17

In stock

23016

LAMP-ASSY,LICENSE

23016-0607

1

$73.13

In stock

23025

LAMP-TAIL

23025-0361

1

$298.53

In stock

23026

LENS,LICENCE LAMP

23026-0028

1

$29.34

In stock

39156

PAD

39156-2170

1

$0.69

In stock

92015

NUT,WELL,5MM

92015-1757

1

$5.81

In stock

92022

WASHER,5.2X16X1.2

92022-263

1
Out of stock

92069

BULB,12V 5W

92069-1016

1

$5.16

In stock

92152

COLLAR

92152-1592

1
Out of stock

92154

BOLT,FLANGED,5X25

92154-0846

1

$1.10

In stock

92160

DAMPER

92160-1190

1

$3.25

In stock

92161

DAMPER

92161-0776

1

$4.39

In stock

92161A

DAMPER,8X18X8.1

92161-1369

1

$1.44

In stock

92172

1

$1.53

In stock

92172A

SCREW,TAPPING,5X16

92172-0427

1

$2.10

In stock

92200

WASHER,5.5X20X1.2

92200-0284

1
Out of stock
