2019 Kawasaki Z650 Generator Diagram

← All diagrams

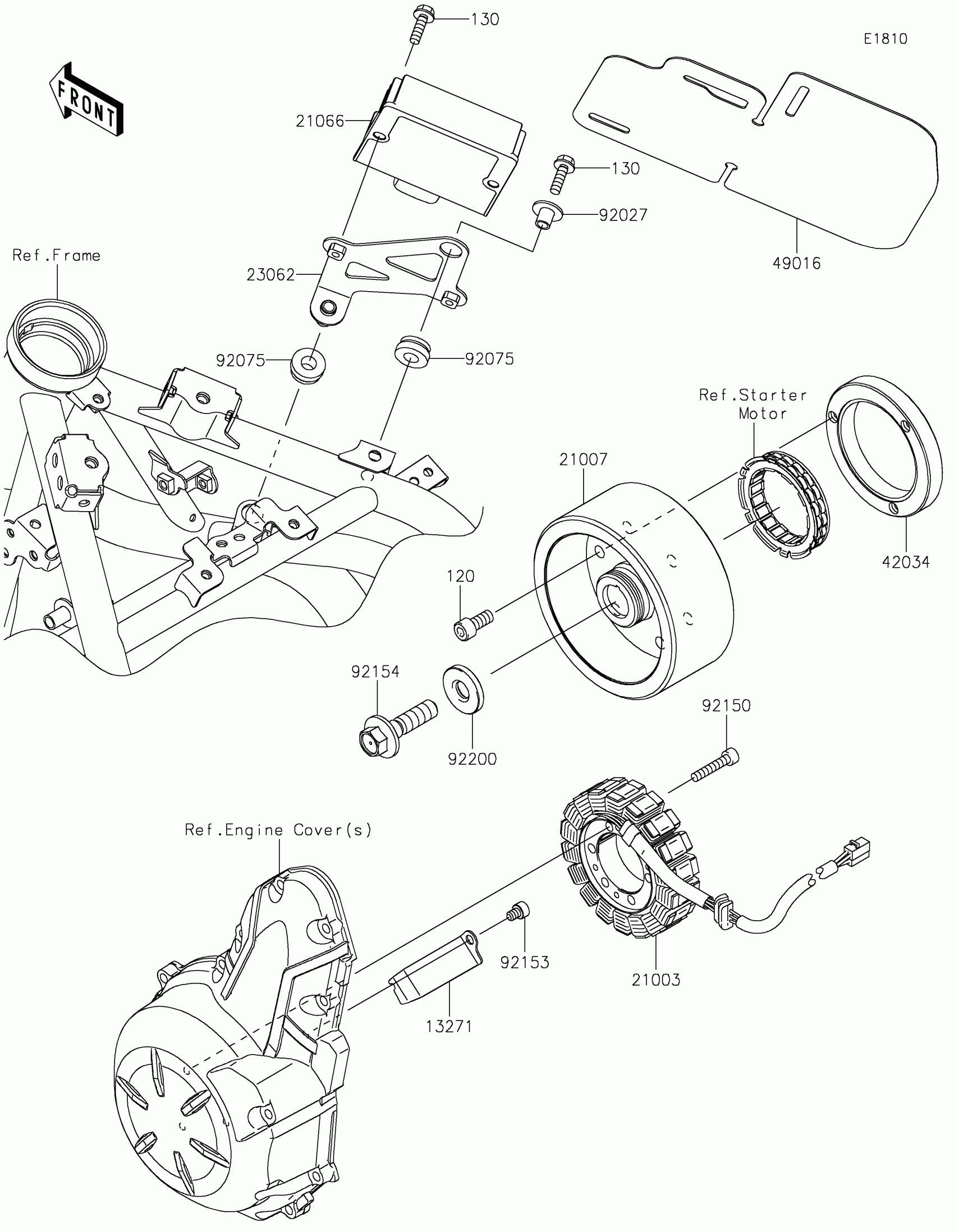

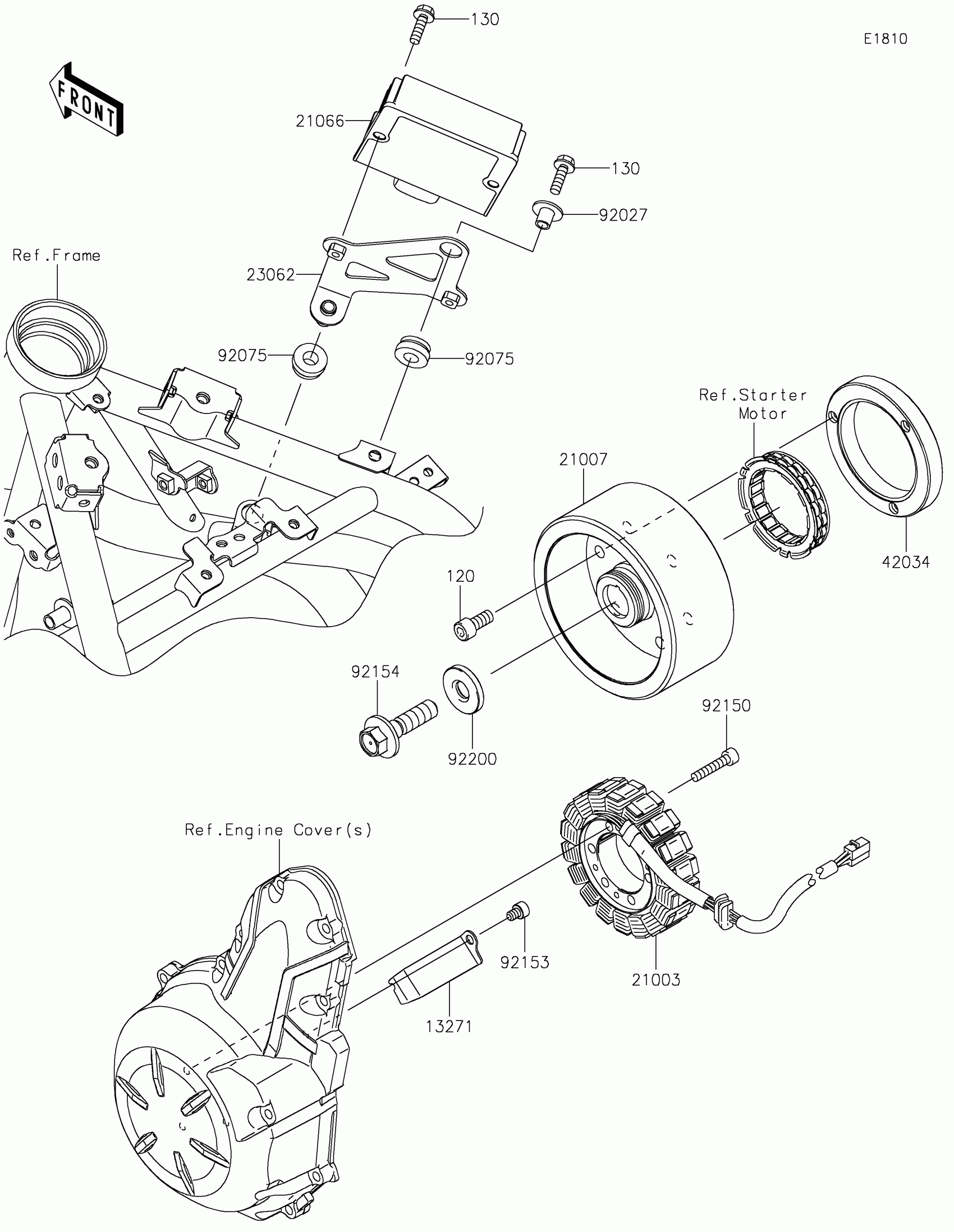

Find the part on the Generator diagram for your 2019 Kawasaki Z650, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2019 Kawasaki Z650 Generator Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

120

BOLT-SOCKET,8X18

120CA0818

1

$2.29

In stock

130

BOLT-FLANGED,6X20

130BA0620

1

$1.49

In stock

13271

PLATE

13271-0952

1
Out of stock

21003

STATOR

21003-0164

1

$363.35

In stock

21007

ROTOR

21007-0601

1

$531.63

In stock

21066

REGULATOR-VOLTAGE

21066-0750

1

$187.45

In stock

23062

1

$10.36

In stock

42034

COUPLING

42034-1143

1

$123.69

In stock

92027

1

$4.37

In stock

92075

DAMPER

92075-277

1

$2.20

In stock

92150

BOLT,SOCKET,6X30

92150-1433

1

$3.87

In stock

92153

BOLT,SOCKET,6X8

92153-1414

1
Out of stock

92154

BOLT,FLANGED,12X45

92154-1812

1

$17.47

In stock

92200

WASHER,12X33X5

92200-0220

1
Out of stock
