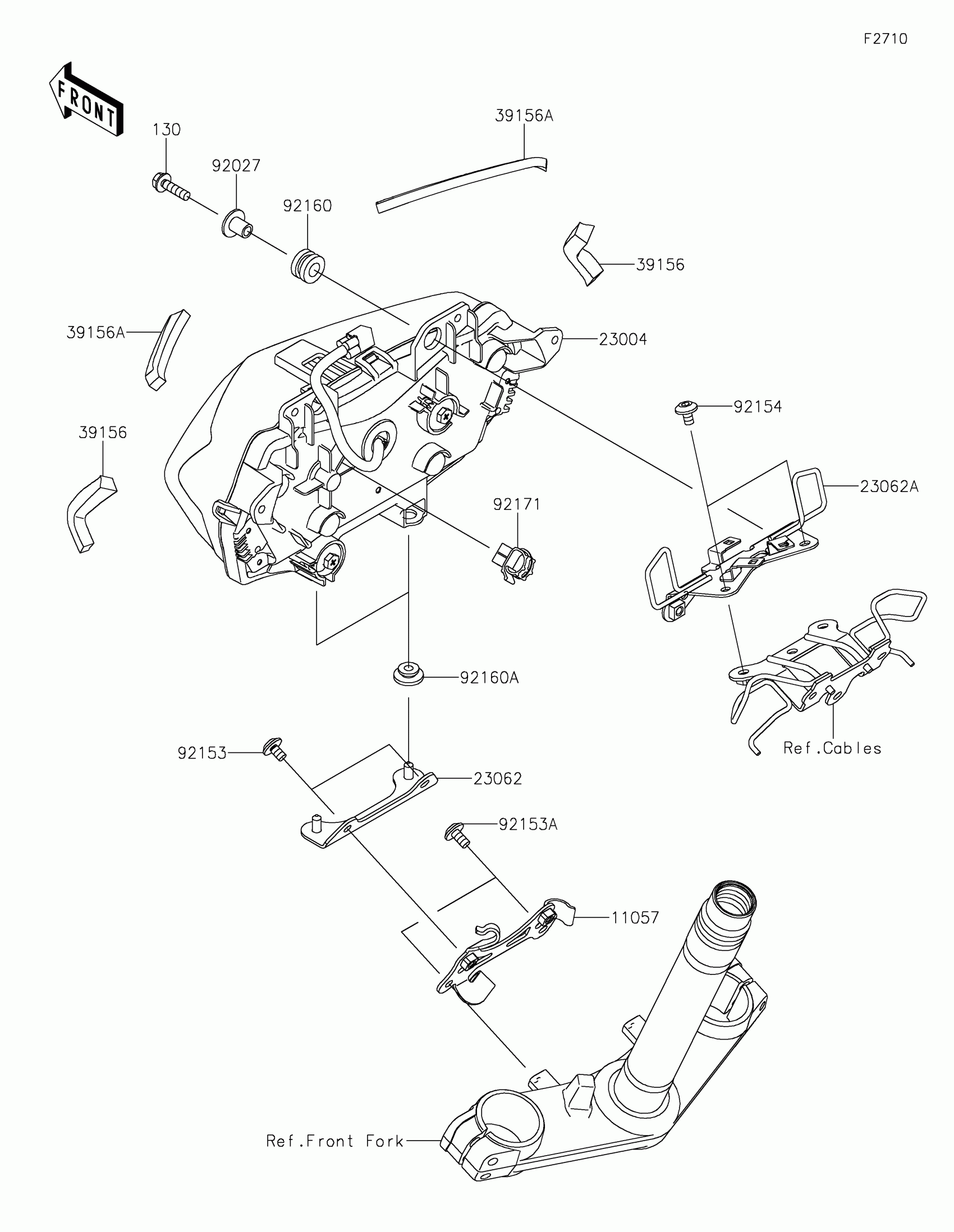

Find the part on the Headlight diagram for your 2019 Kawasaki Z650, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2019 Kawasaki Z650 Headlight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11057

1

$11.95

In stock

130

BOLT-FLANGED,6X22

130BA0622

1

$1.17

In stock

23007

LENS-COMP,HEAD LAMP

23007-0207

1

$407.49

In stock

23008

SOCKET-ASSY

23008-0177

1

$84.48

In stock

23062

1

$20.19

In stock

39156

PAD,20X8X10

39156-1968

1

$0.98

In stock

49016

COVER-SEAL

49016-0642

1

$16.14

In stock

49016A

COVER-SEAL

49016-0646

1

$7.27

In stock

92027

COLLAR,6.5X10X14.1

92027-1183

1

$4.37

In stock

92069

BULB,12V 60/55W,H4

92069-0050

1

$14.37

In stock

92069A

BULB,12V 5W

92069-1016

1

$5.16

In stock

92153

BOLT,SOCKET,6X12

92153-1948

1

$1.53

In stock

92160

DAMPER,10X20X12

92160-1167

1

$3.72

In stock

92160A

DAMPER

92160-1613

1

$2.97

In stock

92171

CLAMP,EDGE CLIP

92171-1722

1

$7.90

In stock

92192

TUBE,BREATHER

92192-1528

1
Out of stock
