2025 Kawasaki Z500 Se Taillight Diagram

← All diagrams

Find the part on the Taillight diagram for your 2025 Kawasaki Z500 Se, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

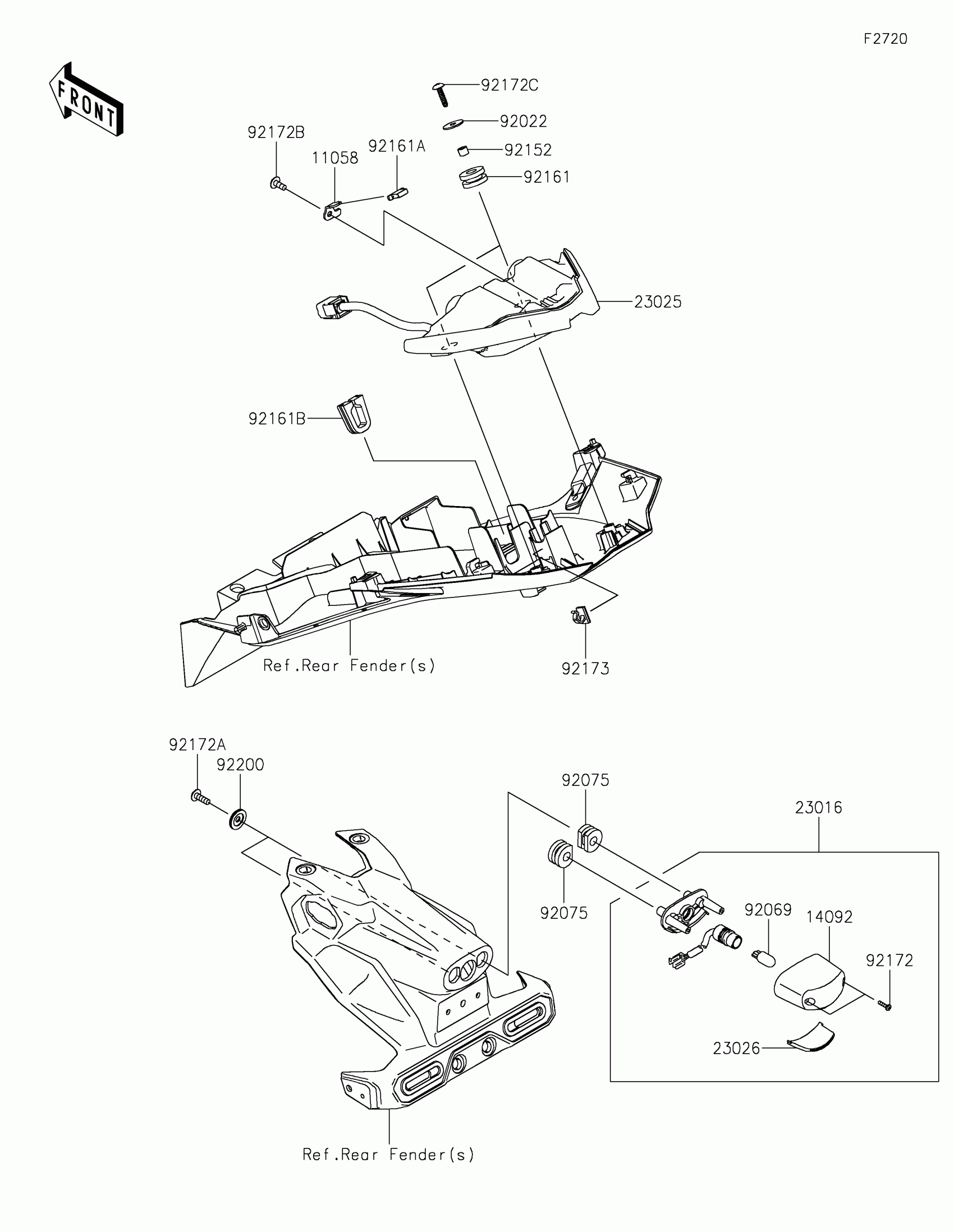

2025 Kawasaki Z500 Se Taillight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11058

BRACKET,TAIL LAMP

11058-1169

1

$1.59

In stock

14092

COVER,LICENSE LAMP

14092-0001

1

$20.17

In stock

23016

LAMP-ASSY,LICENCE

23016-0657

1

$73.13

In stock

23025

LAMP-TAIL,LED

23025-0403

1

$207.91

In stock

23026

LENS,LICENCE LAMP

23026-0035

1

$29.34

In stock

92022

WASHER,5.5X20X1.2

92022-1405

1

$3.43

In stock

92069

BULB,12V 5W

92069-1016

1

$5.16

In stock

92075

DAMPER

92075-1870

1

$4.42

In stock

92152

COLLAR,5.5X10X7.5

92152-2618

1

$1.49

In stock

92161

DAMPER

92161-0163

1

$4.59

In stock

92161A

DAMPER

92161-1917

1

$1.47

In stock

92161B

DAMPER,RR FENDER

92161-1984

1

$0.88

In stock

92172

1

$1.53

In stock

92172A

SCREW,TAPPING,5X16

92172-0427

1

$2.10

In stock

92172B

SCREW,5X12

92172-0821

1

$0.85

In stock

92172C

SCREW,TAPPING,5X20

92172-1159

1

$1.27

In stock

92173

CLAMP,CLIP

92173-1783

1

$2.02

In stock

92200

WASHER,5.5X20X2

92200-1971

1

$1.81

In stock
