2025 Kawasaki Z500 Se Chassis Electrical Equipment Diagram

← All diagrams

Find the part on the Chassis Electrical Equipment diagram for your 2025 Kawasaki Z500 Se, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

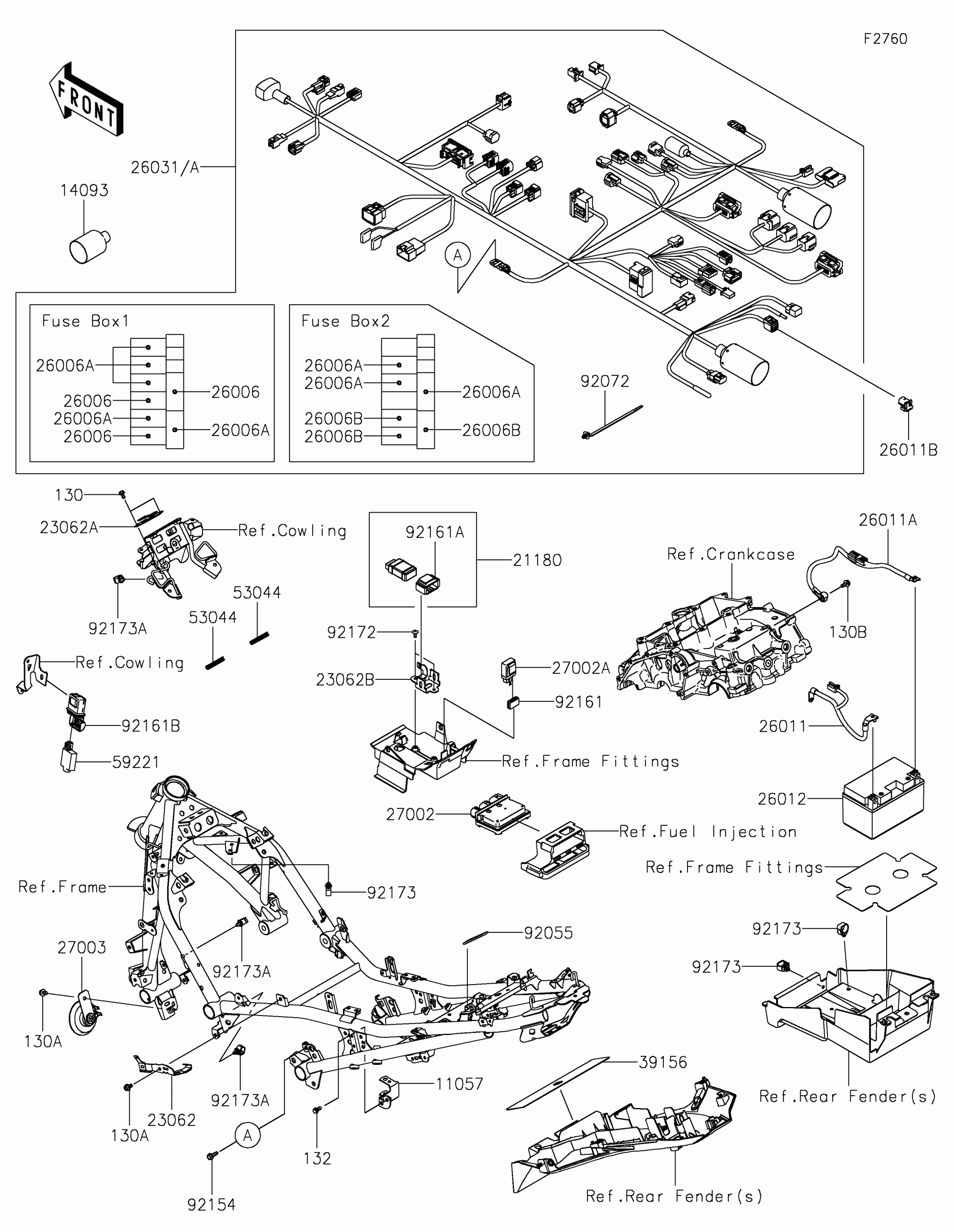

2025 Kawasaki Z500 Se Chassis Electrical Equipment Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11057

BRACKET,MAGNETIC SW.

11057-1225

1
Out of stock

14093

COVER,HARNESS

14093-0720

1

$4.07

In stock

21180

1

$179.01

In stock

23062

1

$3.29

In stock

23062A

1

$2.71

In stock

23062B

1

$7.61

In stock

26006

1

$5.34

In stock

26006A

1

$3.50

In stock

26006B

1

$3.87

In stock

26011

1

$46.38

In stock

26011A

1

$30.97

In stock

26011B

1

$33.83

In stock

26012

1

$224.48

In stock

26031A

HARNESS,MAIN

26031-4320

1

$775.93

In stock

27002

RELAY-ASSY

27002-0061

1

$171.42

In stock

27002A

1

$76.42

In stock

27003

HORN

27003-0065

1

$69.35

In stock

39156

PAD,60X250X1

39156-2219

1

$10.20

In stock

53044

TRIM,45MM

53044-0644

1

$4.92

In stock

59221

1

$87.41

In stock

92055

RING-O,50MM

92055-0954

1

$3.53

In stock

92072

—

$2.97

In stock

92154

BOLT,FLANGED,6X18

92154-4008

1

$1.22

In stock

92161

DAMPER,15X25X8.5

92161-1443

1

$1.66

In stock

92161A

DAMPER

92161-2516

1

$14.56

In stock

92161B

DAMPER

92161-2731

1

$5.37

In stock

92172

SCREW,5X12

92172-0821

1

$0.85

In stock

92173

CLAMP,HOLDER CLIP

92173-0868

1

$2.44

In stock

92173A

CLAMP

92173-1951

1

$1.27

In stock

130

BOLT-FLANGED,5X10

130BA0510

1

$1.47

In stock

130A

BOLT-FLANGED,6X10

130BA0610

1

$1.12

In stock

130B

BOLT-FLANGED,6X12

130BA0612

1

$1.46

In stock

132

1

$1.12

In stock

26031

HARNESS,MAIN

26031-4318

1

$775.93

In stock
