2025 Kawasaki Z500 Se Meter Diagram

← All diagrams

Find the part on the Meter diagram for your 2025 Kawasaki Z500 Se, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

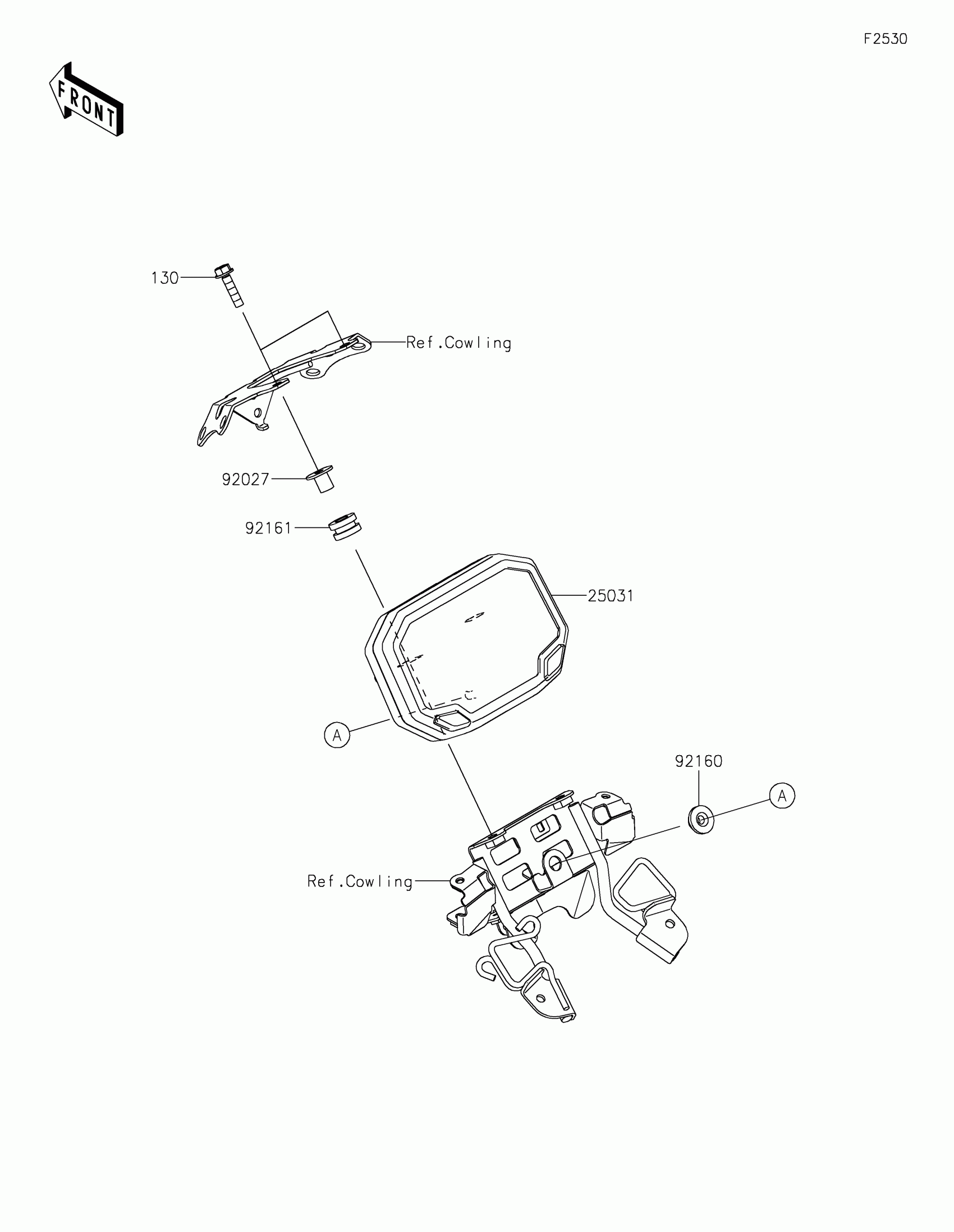

2025 Kawasaki Z500 Se Meter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

25031

1

$1,425.03

In stock

92027

COLLAR,6.5X10X14.1

92027-1183

1

$4.37

In stock

92160

DAMPER

92160-1613

1

$2.97

In stock

92161

DAMPER,10X20X12

92161-2102

1
Out of stock

130

BOLT-FLANGED,6X25

130BB0625

1

$1.92

In stock
