2025 Kawasaki Z500 Se Starter Motor Diagram

← All diagrams

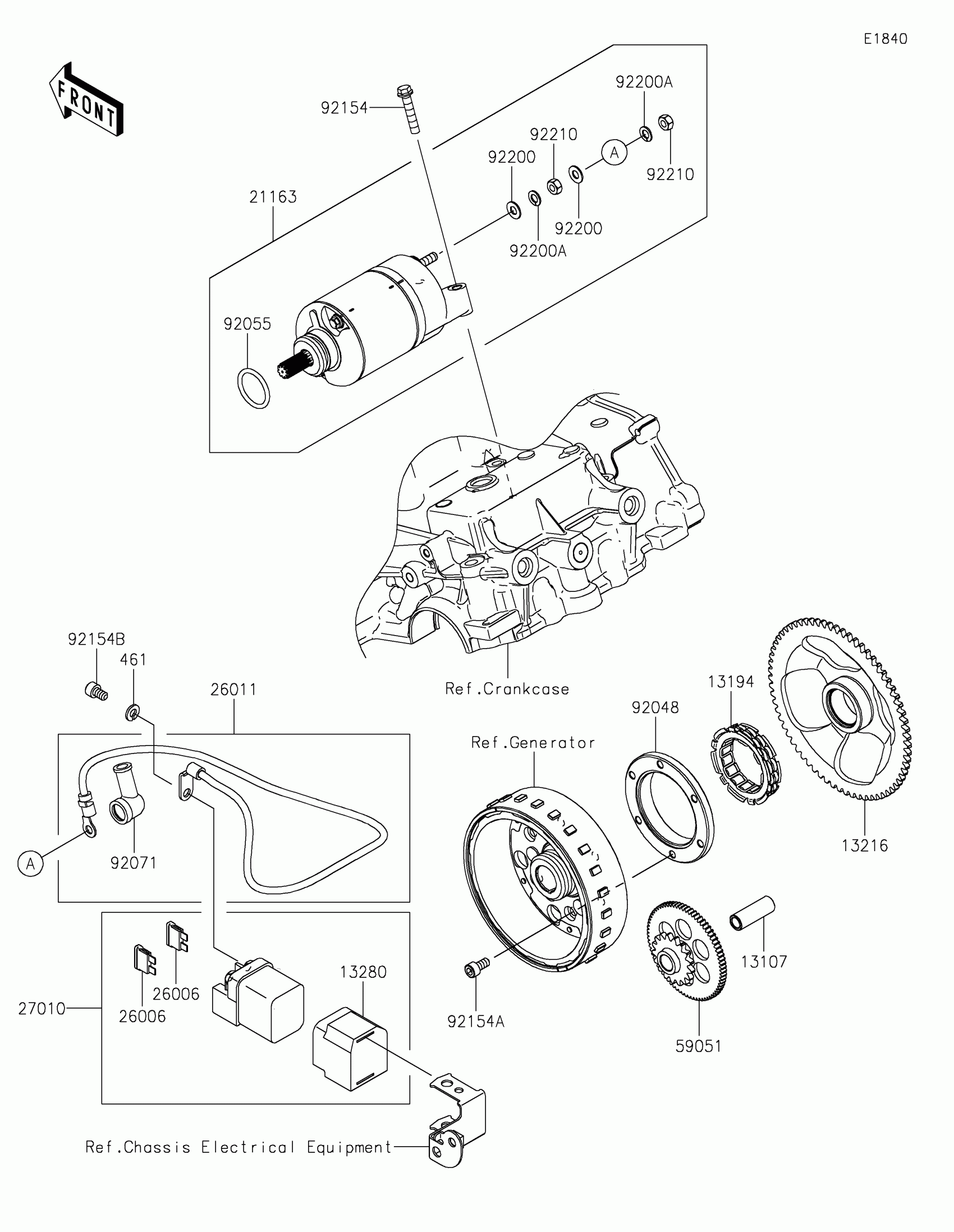

Find the part on the Starter Motor diagram for your 2025 Kawasaki Z500 Se, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2025 Kawasaki Z500 Se Starter Motor Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13107

SHAFT,IDLER

13107-0861

1

$11.76

In stock

13194

CLUTCH-ONEWAY

13194-1096

1

$108.18

In stock

13216

1

$211.14

In stock

13280

HOLDER

13280-0301

1

$13.37

In stock

21163

STARTER-ELECTRIC

21163-0794

1

$335.71

In stock

26006

1

$4.39

In stock

26011

WIRE-LEAD,STARTER

26011-1867

1

$73.13

In stock

27010

SWITCH,MAGNETIC

27010-0099

1

$138.44

In stock

59051

GEAR-SPUR,IDLER

59051-0799

1

$157.00

In stock

92048

RACE

92048-0024

1

$57.27

In stock

92055

RING-O

92055-0822

1

$11.81

In stock

92071

GROMMET

92071-0787

1

$5.97

In stock

92154

BOLT,FLANGED,6X30

92154-1773

1

$1.10

In stock

92154A

BOLT,SOCKET,6X12

92154-1889

1

$1.78

In stock

92154B

BOLT,SOCKET,6X10

92154-4401

1

$0.69

In stock

92200

WASHER

92200-1678

1
Out of stock

92200A

WASHER

92200-1679

1
Out of stock

92210

NUT

92210-1664

1

$3.56

In stock

461

WASHER-SPRING,6MM

461DA0600

1

$0.68

In stock
