2018 Kawasaki Z250SL ABS Taillight Diagram

← All diagrams

Find the part on the Taillight diagram for your 2018 Kawasaki Z250SL ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

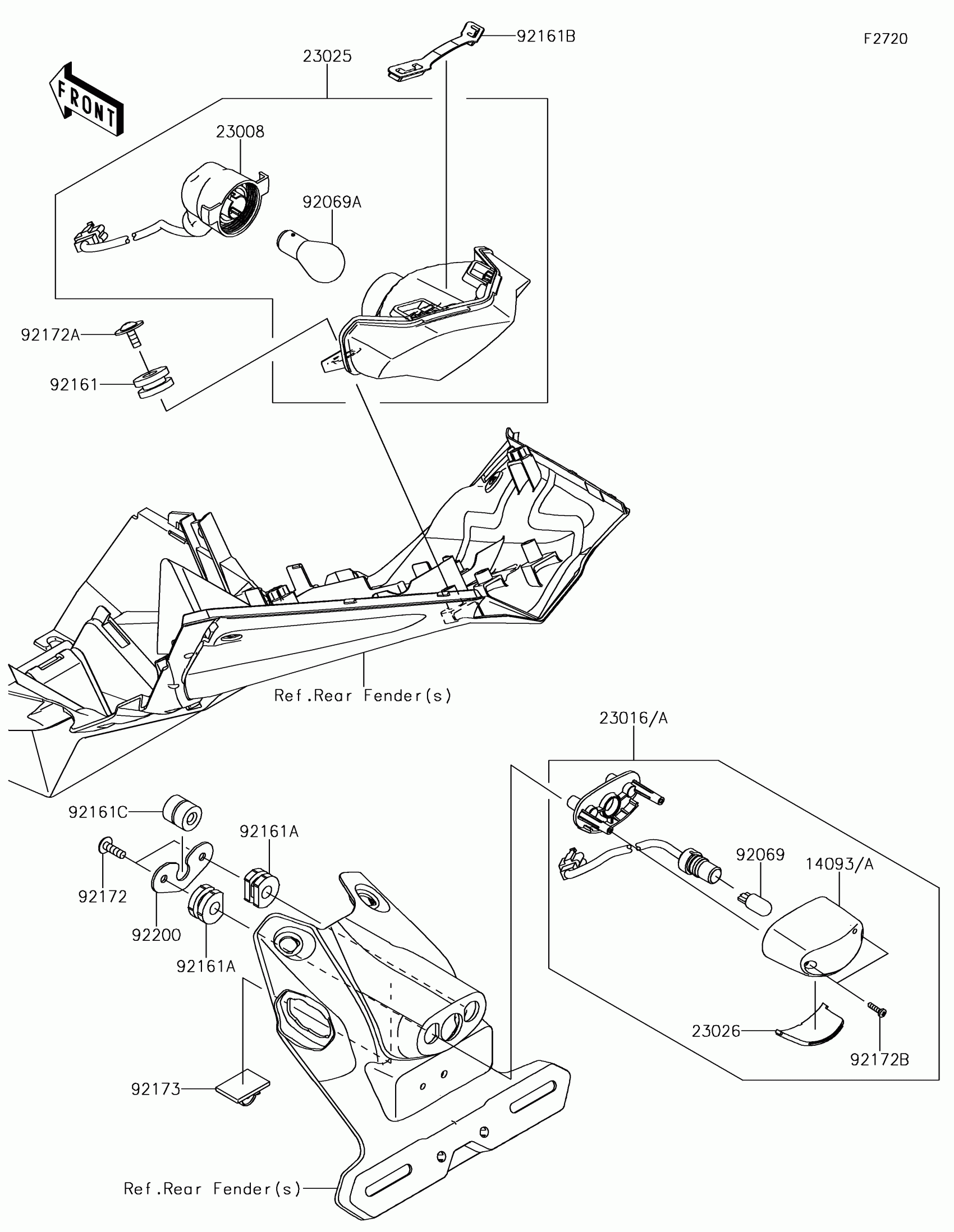

2018 Kawasaki Z250SL ABS Taillight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

14093A

COVER,LICENSE LAMP

14093-0525

1

$20.17

In stock

23008

SOCKET-ASSY

23008-0156

1

$46.09

In stock

23016A

LAMP-ASSY,LICENCE

23016-0595

1

$73.13

In stock

23025

LAMP-TAIL

23025-0343

1

$117.81

In stock

23026

LENS,LICENSE LAMP

23026-0022

1

$29.34

In stock

92069

BULB,12V 5W

92069-1016

1

$5.16

In stock

92069A

BULB,12V 21/5W

92069-1084

1

$5.84

In stock

92161

DAMPER

92161-0163

1

$4.59

In stock

92161A

DAMPER

92161-0776

1

$4.39

In stock

92161B

DAMPER,TAIL LAMP

92161-1800

1

$3.19

In stock

92161C

DAMPER,6X18X18.2

92161-1809

1

$1.32

In stock

92172

SCREW,TAPPING,5X16

92172-0427

1

$2.10

In stock

92172A

1

$2.25

In stock

92172B

SCREW,4X12

92172-0904

1

$1.32

In stock

92173

CLAMP

92173-1061

1

$4.46

In stock

92200

WASHER

92200-1773

1
Out of stock
