2018 Kawasaki Z250SL ABS Meter Diagram

← All diagrams

Find the part on the Meter diagram for your 2018 Kawasaki Z250SL ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

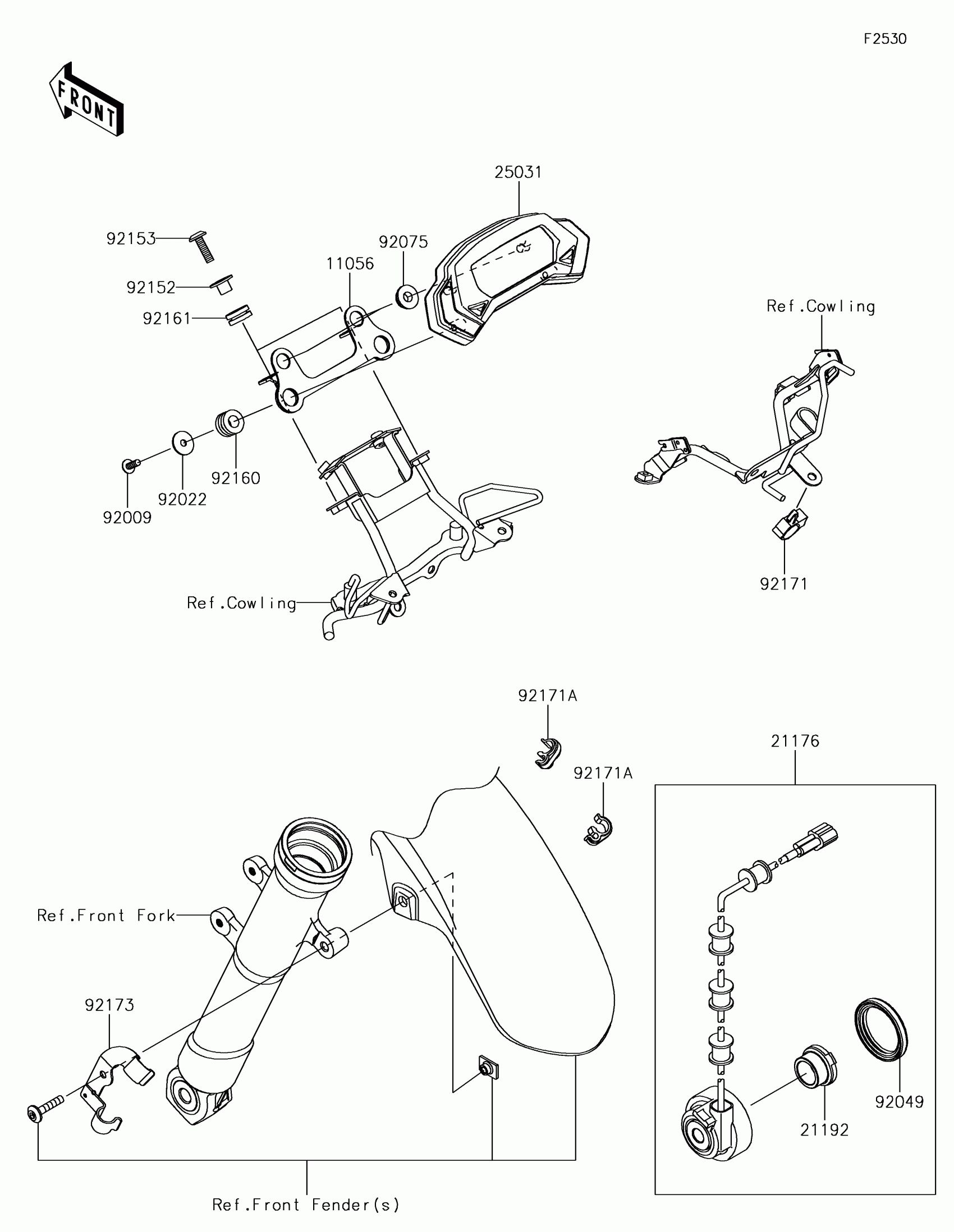

2018 Kawasaki Z250SL ABS Meter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11056

BRACKET,METER

11056-4253

1

$7.47

In stock

21176

SENSOR,SPEED

21176-0759

1

$237.69

In stock

21192

MAGNET,SPEED SENSOR

21192-0004

1

$36.81

In stock

25031

1

$566.87

In stock

92009

SCREW,TAPPING,5X14

92009-1197

1
Out of stock

92022

WASHER,5.5X20X1.2

92022-1405

1

$3.43

In stock

92049

SEAL-OIL,METER GEAR CASE

92049-1172

1
Out of stock

92075

1

$5.42

In stock

92152

COLLAR,6.8X10X10.8

92152-1884

1
Out of stock

92153

BOLT,SOCKET,6X22

92153-0574

1
Out of stock

92160

DAMPER,10X20X12

92160-1167

1

$3.72

In stock

92161

DAMPER,10X20X8.8

92161-1664

1

$2.44

In stock

92171

CLAMP,BRAKE HOSE

92171-0316

1

$3.08

In stock

92171A

CLAMP,BRAKE HOSE

92171-1819

1

$4.85

In stock

92173

CLAMP,FR FENDER

92173-1119

1

$3.59

In stock
