2018 Kawasaki Z250SL ABS Chassis Electrical Equipment Diagram

← All diagrams

Find the part on the Chassis Electrical Equipment diagram for your 2018 Kawasaki Z250SL ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

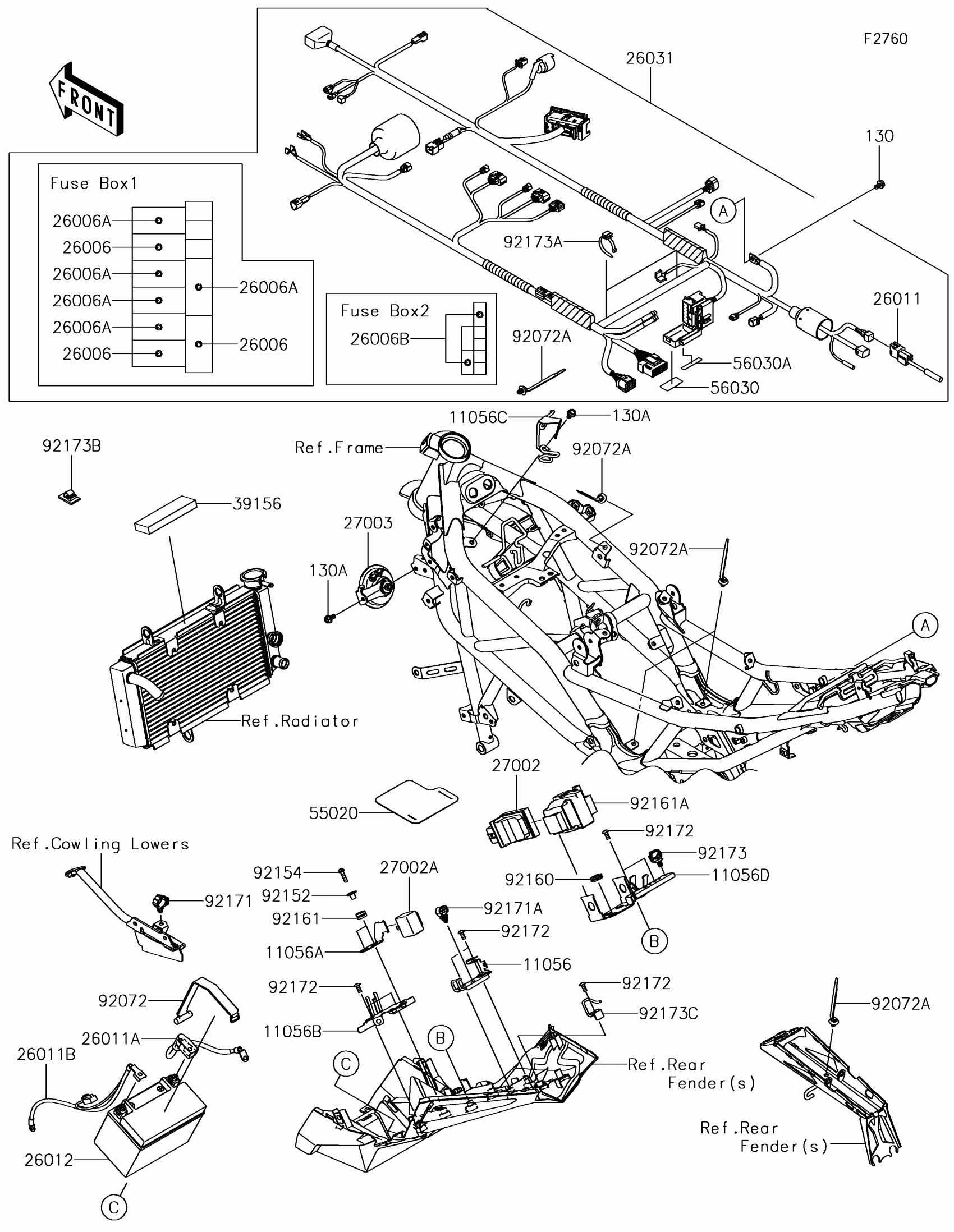

2018 Kawasaki Z250SL ABS Chassis Electrical Equipment Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11056

BRACKET,DIAG

11056-2695

1
Out of stock

11056A

BRACKET,RELAY

11056-2810

1
Out of stock

11056B

BRACKET,FUSE BOX

11056-4342

1
Out of stock

11056C

BRACKET,ACG

11056-4437

1
Out of stock

11056D

BRACKET,ECU

11056-7058

1
Out of stock

130

BOLT-FLANGED,6X10

130BA0610

1
Out of stock

130A

BOLT-FLANGED,6X12

130BA0612

1
Out of stock

26006

FUSE,MINI BLADE,15A,BLUE

26006-0001

1
Out of stock

26006A

FUSE,MINI BLADE,10A,RED

26006-1078

1
Out of stock

26006B

FUSE,MINI BLADE,30A,GREEN

26006-1080

1
Out of stock

26011

WIRE-LEAD,DIAG

26011-0858

1
Out of stock

26011A

WIRE-LEAD,BATTERY(+)

26011-0892

1
Out of stock

26011B

WIRE-LEAD,BATTERY(-)

26011-0915

1
Out of stock

26012

BATTERY,YTX9-BS,12V 8AH

26012-0868

1
Out of stock

26031

HARNESS,MAIN

26031-2261

1
Out of stock

27002

RELAY-ASSY

27002-0019

1
Out of stock

27002A

RELAY-ASSY,TURN SIGNAL

27002-0020

1
Out of stock

27003

HORN

27003-0099

1
Out of stock

39156

PAD,RADIATOR TOP

39156-1834

1
Out of stock

55020

GUARD

55020-1857

1
Out of stock

56030

LABEL,FUSE BOX1

56030-0837

1
Out of stock

56030A

LABEL,FUSE BOX2

56030-0838

1
Out of stock

92072

BAND

92072-0749

1
Out of stock

92072A

BAND,OS170-FT7(BLACK)

92072-1414

1
Out of stock

92152

COLLAR

92152-1592

1
Out of stock

92154

BOLT,SOCKET,5X20

92154-0829

1
Out of stock

92160

DAMPER

92160-1278

1
Out of stock

92161

DAMPER

92161-0056

1
Out of stock

92161A

DAMPER

92161-1564

1
Out of stock

92171

CLAMP,BRAKE HOSE

92171-0316

1
Out of stock

92171A

CLAMP,13MM DIA.

92171-1415

1
Out of stock

92172

SCREW,5X12

92172-0857

1
Out of stock

92173

CLAMP,12MM DIA.

92173-0736

1
Out of stock

92173A

CLAMP

92173-0791

1
Out of stock

92173B

CLAMP

92173-1061

1
Out of stock

92173C

CLAMP,TAIL LAMP

92173-1182

1
Out of stock
