2018 Kawasaki Z250SL ABS Rear Brake Diagram

← All diagrams

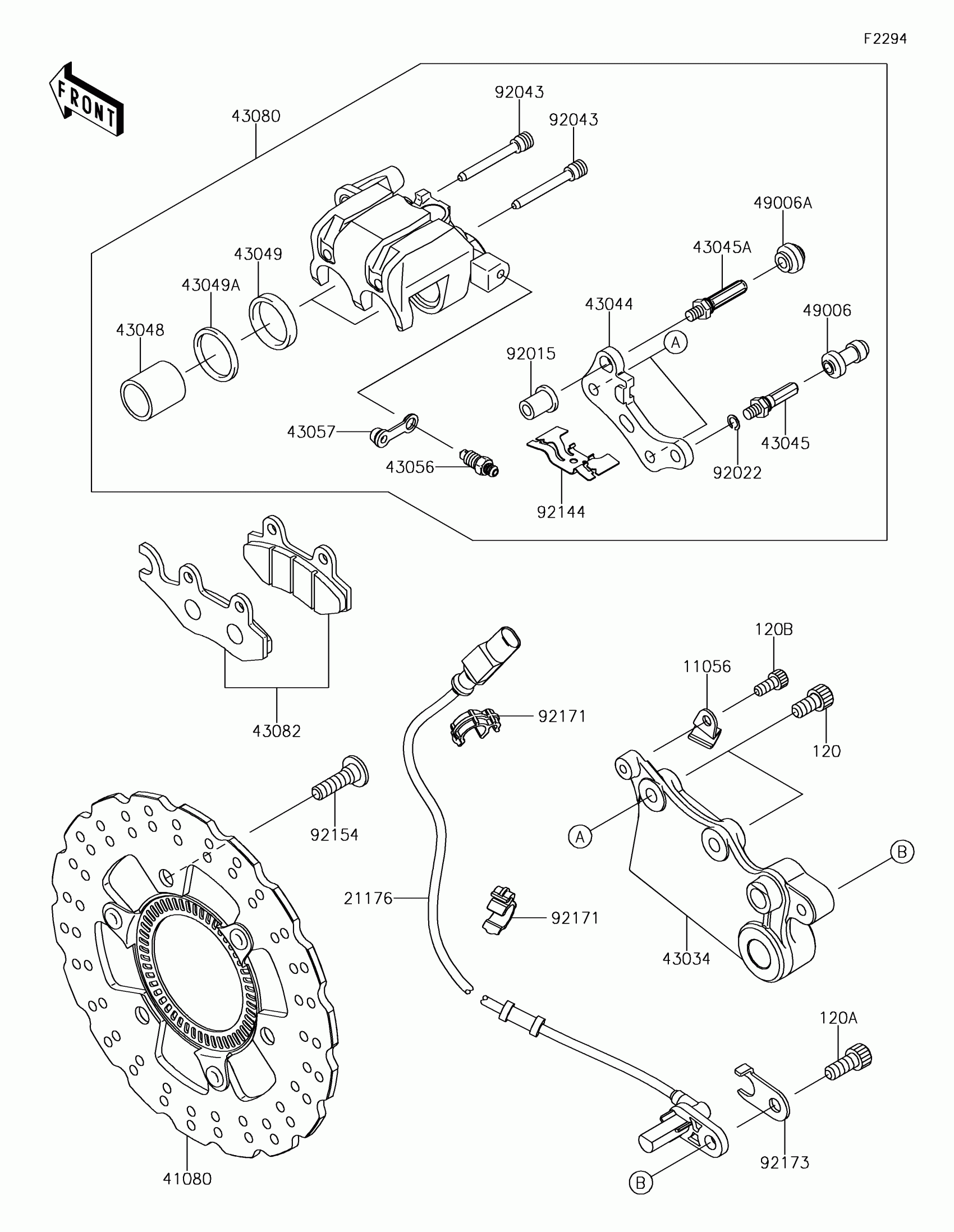

Find the part on the Rear Brake diagram for your 2018 Kawasaki Z250SL ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2018 Kawasaki Z250SL ABS Rear Brake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11056

BRACKET,BRAKE HOLDER

11056-2799

1
Out of stock

120

BOLT-SOCKET,8X16

120CA0816

1
Out of stock

120A

BOLT-SOCKET,8X20

120CA0820

1
Out of stock

120B

BOLT-SOCKET,6X14

120CB0614

1
Out of stock

21176

SENSOR,ABS,RR

21176-0761

1
Out of stock

41080

DISC,RR,BLACK

41080-0601-11H

1
Out of stock

43034

HOLDER-BRAKE,RR

43034-0099

1
Out of stock

43044

HOLDER-COMP-CALIPER

43044-1112

1
Out of stock

43045

SHAFT-CALIPER

43045-1010

1
Out of stock

43045A

SHAFT-CALIPER

43045-1052

1
Out of stock

43048

PISTON-CALIPER

43048-1068

1
Out of stock

43049

PACKING,PISTON SEAL

43049-1060

1
Out of stock

43049A

PACKING,PISTON SEAL

43049-1061

1
Out of stock

43056

BREATHER-BRAKE

43056-0004

1
Out of stock

43057

CAP-BREATHER

43057-1001

1
Out of stock

43080

CALIPER-SUB-ASSY,RR,BLACK

43080-0155-25S

1
Out of stock

43082

PAD-ASSY-BRAKE

43082-0128

1
Out of stock

49006

BOOT,CALIPER

49006-1088

1
Out of stock

49006A

BOOT,CALIPER

49006-1242

1
Out of stock

92015

NUT

92015-1740

1
Out of stock

92022

WASHER,WAVE

92022-1373

1
Out of stock

92043

PIN,HANGER

92043-1416

1
Out of stock

92144

SPRING,PAD

92144-1847

1
Out of stock

92154

BOLT,SOCKET,8X30

92154-0844

1
Out of stock

92171

CLAMP,BRAKE HOSE

92171-1703

1
Out of stock

92173

CLAMP,SENSOR HEAD

92173-1283

1
Out of stock
