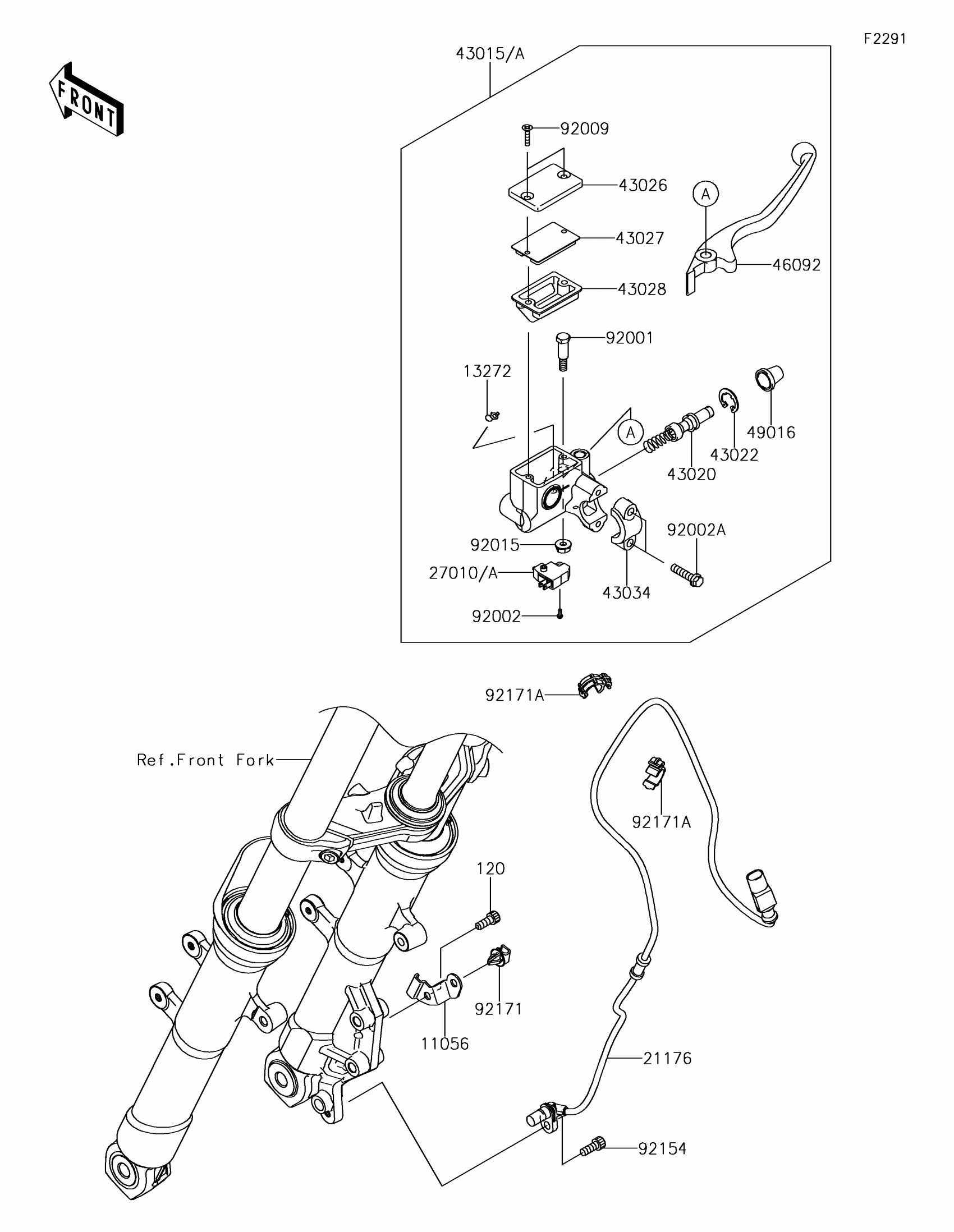

Kawasaki Z250SL ABS Front Master Cylinder Diagram

Description

Price

11056

BRACKET

11056-4005

$3.19

120

BOLT-SOCKET,6X16

120CA0616

$1.77

13272

PLATE

13272-0573

$7.47

21176

SENSOR,ABS,FR

21176-0760

$123.79

27010A

SWITCH,BRAKE

27010-0873

Unavailable

43015A

CYLINDER-ASSY-MASTER,FR

43015-0692

$229.36

43020

PISTON-COMP-BRAKE

43020-0022

$52.23

43022

STOPPER-BRAKE,PISTON

43022-1010

$3.54

43026

CAP-BRAKE

43026-1082

$19.58

43027

PLATE-DIAPHRAGM

43027-1057

$3.69

43028

DIAPHRAGM

43028-1061

$12.27

43034

HOLDER-BRAKE,MASTER CYLINDER

43034-1016

$14.67

46092

LEVER-GRIP,FRONT BRAKE

46092-0047

$17.00

49016

COVER-SEAL,MASTER CYLINDER

49016-1044

$6.62

92001

BOLT,FRONT BRAKE LEVER

92001-1728

$10.80

92002

BOLT,SCREW,4X12

92002-1323

$2.99

92002A

BOLT

92002-1894

$4.18

92009

SCREW,4MM

92009-1458

$2.23

92015

NUT,FLANGED,6MM,BLACK

92015-1233

$4.18

92154

BOLT,SOCKET,6X16

92154-1300

$1.69

92171

CLAMP

92171-0640

$3.51

92171A

CLAMP,BRAKE HOSE

92171-1819

$4.85
