2018 Kawasaki Z250SL ABS Brake Piping Diagram

← All diagrams

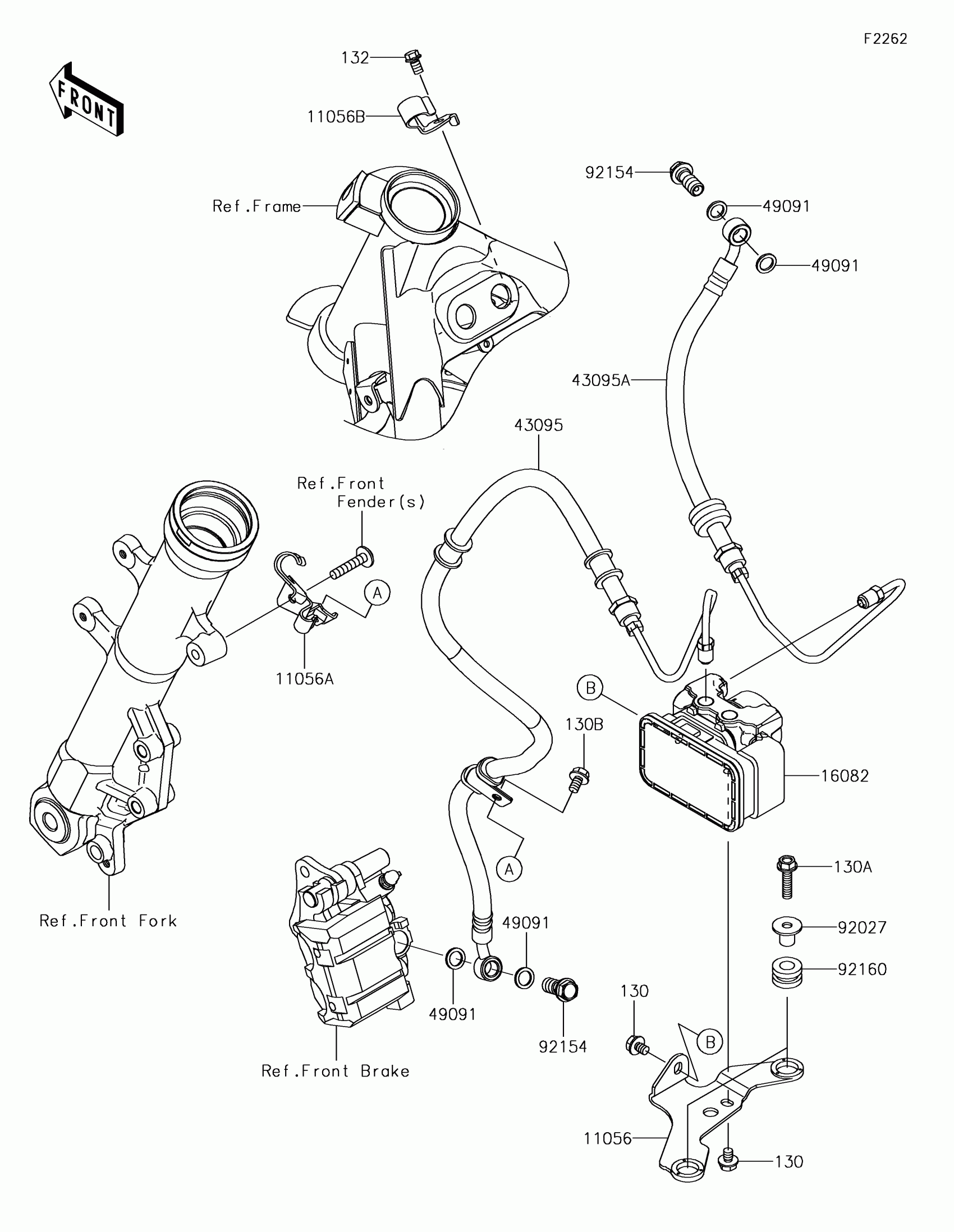

Find the part on the Brake Piping diagram for your 2018 Kawasaki Z250SL ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2018 Kawasaki Z250SL ABS Brake Piping Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11056

BRACKET,ABS UNIT

11056-2561

1
Out of stock

11056A

BRACKET,FR FENDER

11056-2623

1
Out of stock

11056B

BRACKET,FRAME COMP

11056-4305

1
Out of stock

130

BOLT-FLANGED,6X8

130BA0608

1
Out of stock

130A

BOLT-FLANGED,6X25

130BA0625

1
Out of stock

130B

BOLT-FLANGED,6X10

130BB0610

1
Out of stock

132

BOLT-FLANGED-SMALL,6X10

132BB0610

1
Out of stock

16082

PUMP-ASSY-OIL,ABS,WET

16082-0755

1
Out of stock

43095

HOSE-BRAKE,FR CYLINDER

43095-0794

1
Out of stock

43095A

HOSE-BRAKE,FR M/CYLINDER

43095-0800

1
Out of stock

49091

WASHER-SEAL,10.1X14.5X1.5

49091-0001

1
Out of stock

92027

COLLAR,6.5X10X14.1

92027-1183

1
Out of stock

92154

BOLT,FLANGED,10X23

92154-0732

1
Out of stock

92160

DAMPER,10X20X12

92160-1167

1
Out of stock
