2018 Kawasaki Z250SL ABS Radiator Diagram

← All diagrams

Find the part on the Radiator diagram for your 2018 Kawasaki Z250SL ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

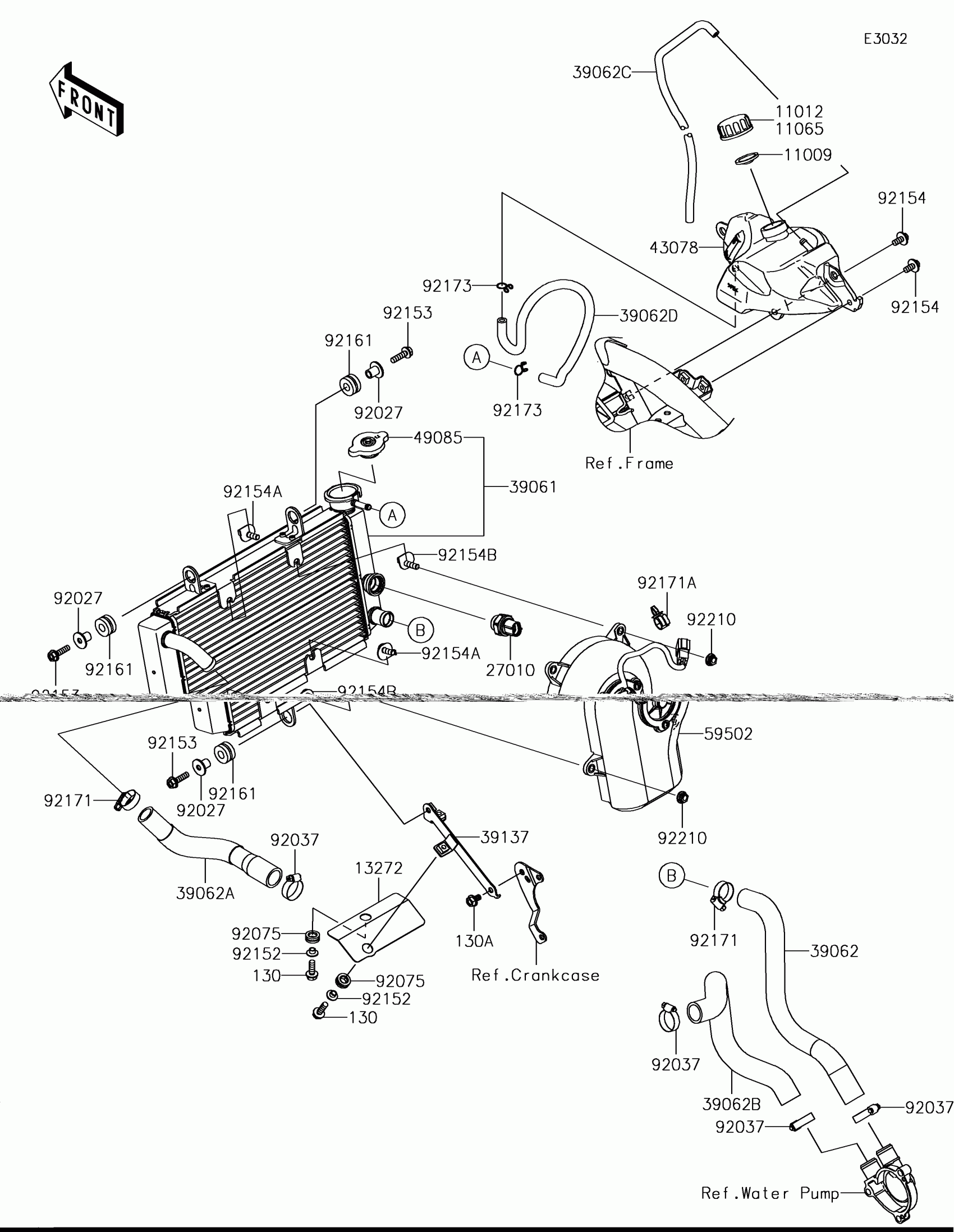

2018 Kawasaki Z250SL ABS Radiator Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11009

1

$1.25

In stock

11065

CAP

11065-0969

1

$1.69

In stock

130

BOLT-FLANGED,6X16

130BA0616

1

$1.12

In stock

130A

BOLT-FLANGED,6X10

130BB0610

1

$2.05

In stock

13272

PLATE

13272-1876

1

$25.47

In stock

27010

SWITCH,THERMO

27010-0755

1

$73.15

In stock

39061

RADIATOR-ASSY

39061-0696

1

$505.43

In stock

39062

1

$14.88

In stock

39062A

1

$11.44

In stock

39062B

1

$14.39

In stock

39062C

1

$10.19

In stock

39062D

1

$7.15

In stock

39137

STAY-COMP,RADIATOR

39137-0615

1

$11.02

In stock

43078

RESERVOIR

43078-0570

1

$41.42

In stock

49085

CAP-ASSY-PRESSURE

49085-0010

1

$45.30

In stock

59502

FAN-ASSY

59502-0604

1

$211.48

In stock

92027

COLLAR,6.5X10X14.1

92027-1183

1

$4.37

In stock

92037

CLAMP,COOLING HOSE

92037-1589

1

$14.60

In stock

92075

DAMPER

92075-1947

1

$5.84

In stock

92152

COLLAR,6.3X8.3X16

92152-0286

1

$4.47

In stock

92153

BOLT,FLANGED,6X22

92153-1598

1

$1.81

In stock

92154

1

$0.93

In stock

92154A

BOLT

92154-1442

1

$1.69

In stock

92154B

BOLT

92154-1443

1

$2.46

In stock

92161

DAMPER,RADIATOR

92161-1648

1

$4.39

In stock

92171

CLAMP

92171-0338

1

$6.64

In stock

92171A

CLAMP,13MM DIA.

92171-1415

1

$1.69

In stock

92173

CLAMP

92173-1187

1

$4.61

In stock

92210

NUT

92210-0906

1
Out of stock
