2018 Kawasaki Z250SL ABS Oil Pump Diagram

← All diagrams

Find the part on the Oil Pump diagram for your 2018 Kawasaki Z250SL ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

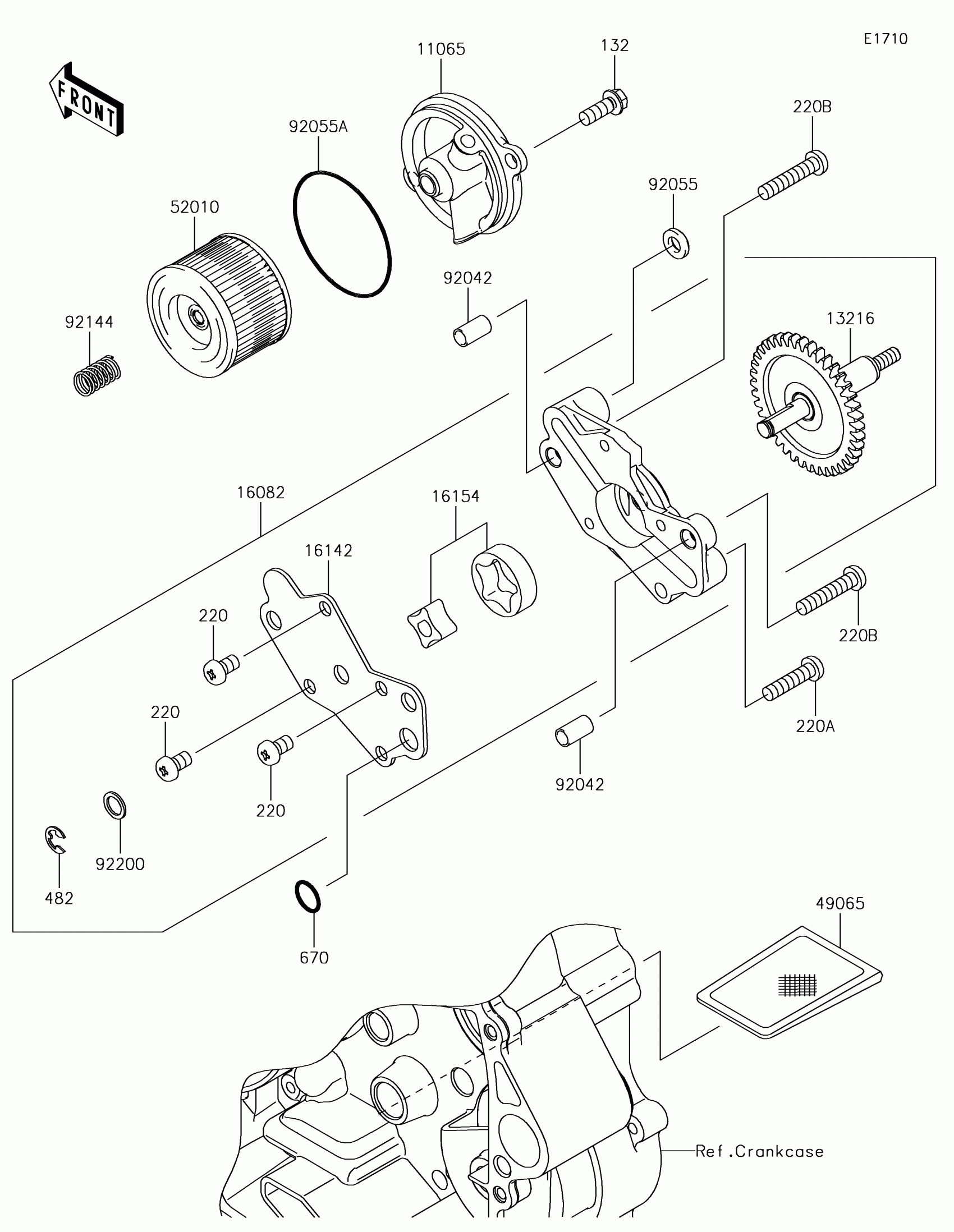

2018 Kawasaki Z250SL ABS Oil Pump Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11065

CAP,OIL FILTER

11065-0833

1

$67.91

In stock

132

1

$2.05

In stock

13216

GEAR-COMP,OIL PUMP

13216-0878

1

$120.53

In stock

16082

PUMP-ASSY-OIL

16082-0727

1

$177.13

In stock

16142

COVER-PUMP

16142-0713

1

$44.51

In stock

16154

ROTOR-PUMP

16154-0714

1

$36.37

In stock

220

1

$2.58

In stock

220A

1

$2.27

In stock

220B

1

$2.92

In stock

482

1

$0.67

In stock

49065

FILTER-OIL

49065-1058

1

$10.11

In stock

52010

ELEMENT-OIL FILTER

52010-1053

1

$7.23

In stock

670

O RING,10MM

670D2010

1

$1.63

In stock

92042

PIN,DOWEL,6.3X8X14

92042-007

1

$4.51

In stock

92055

RING-O,OD=13

92055-074

1

$6.82

In stock

92055A

RING-O,52.6X2.4

92055-1577

1

$3.72

In stock

92144

SPRING

92144-1761

1

$3.69

In stock

92200

WASHER,8.5X12X1

92200-0890

1
Out of stock
