Engine Cover

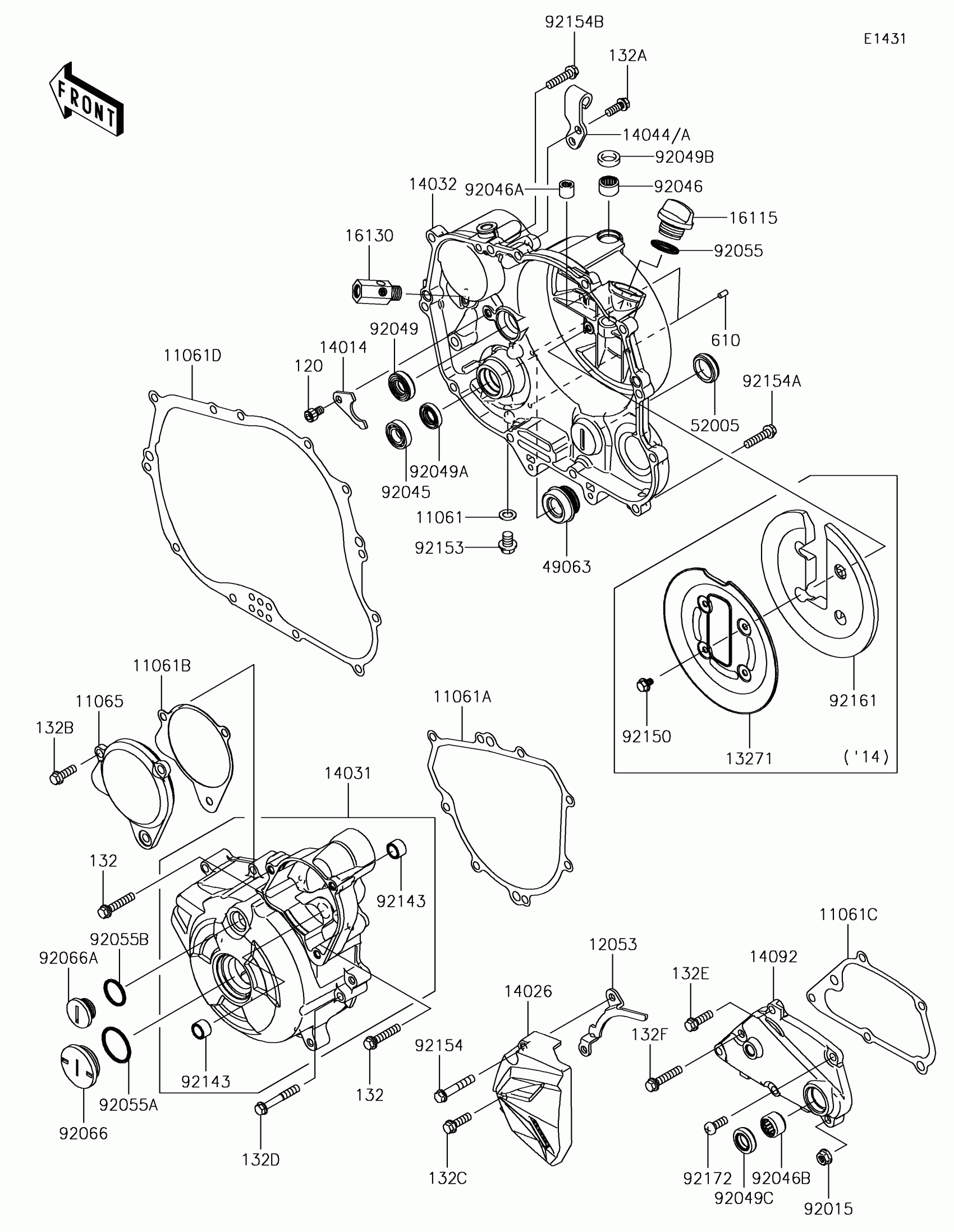

2018 Kawasaki Z250SL ABS Engine Cover Diagram
Find the part on the Engine Cover diagram for your 2018 Kawasaki Z250SL ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.
#
Description
Qty in Assembly
Price
Status
Order Qty
12053
GUIDE-CHAIN
12053-0208
1
Out of stock
14014
PLATE-POSITION
14014-0567
1
Out of stock
14044A
HOLDER-CABLE,CLUTCH
14044-0565
1
Out of stock
92046B
BEARING-NEEDLE,HK1312
92046-1148
1
Out of stock
92049
SEAL-OIL
92049-1191
1
Out of stock
92049A
SEAL-OIL,SC 12X22X5
92049-1228
1
Out of stock
92049B
SEAL-OIL,AG0353-F0
92049-1262
1
Out of stock
92049C
SEAL-OIL
92049-1559
1
Out of stock
92153
BOLT,FLANGED,8X10
92153-1342
1
Out of stock
