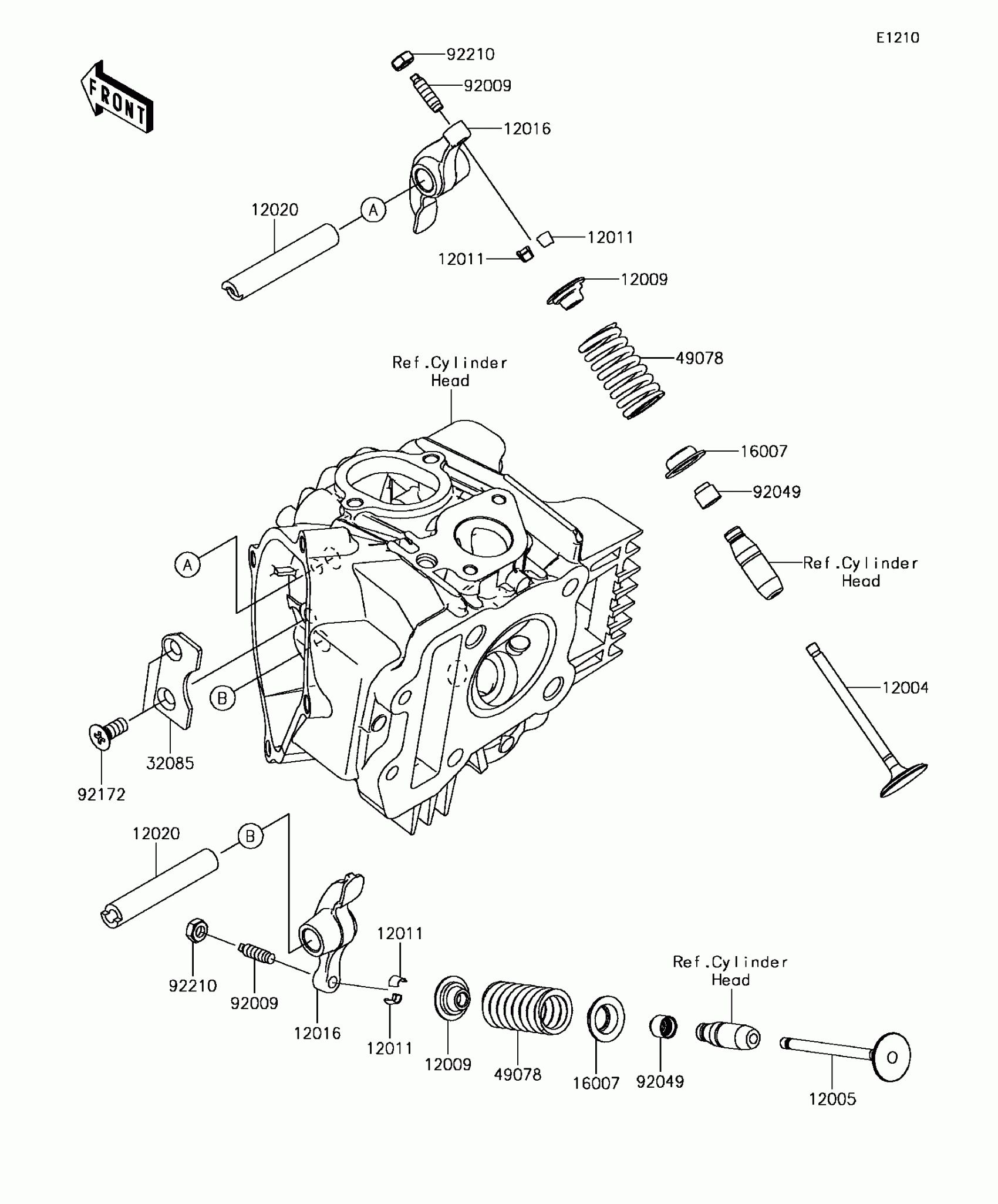

Kawasaki Z125 PRO KRT EDITION Valve(s) Diagram

Description

Price

12004

VALVE-INTAKE

12004-0710

$22.24

12005

VALVE-EXHAUST

12005-0713

$18.88

12009

RETAINER-VALVE SPRING

12009-1073

$8.44

12011

COLLET

12011-1053

$4.34

12016

ARM-ROCKER

12016-0001

$36.31

12020

SHAFT-ROCKER

12020-0010

$19.54

16007

SEAT-SPRING,VALVE

16007-1187

$2.92

32085

STOPPER

32085-1553

$3.90

49078

SPRING-ENGINE VALVE

49078-1151

$5.97

92009

SCREW,VALVE ADJUST

92009-1109

$1.49

92049

SEAL-OIL,VSB 4.3 7.5 5.3 8.3

92049-1349

$9.14

92172

SCREW,6X15

92172-0143

$2.10

92210

NUT,VALVE ADJUST LOCK

92210-1491

$0.93
