2018 Kawasaki Z125 Pro KRT Edition Cylinder Head Diagram

← All diagrams

Find the part on the Cylinder Head diagram for your 2018 Kawasaki Z125 Pro KRT Edition, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

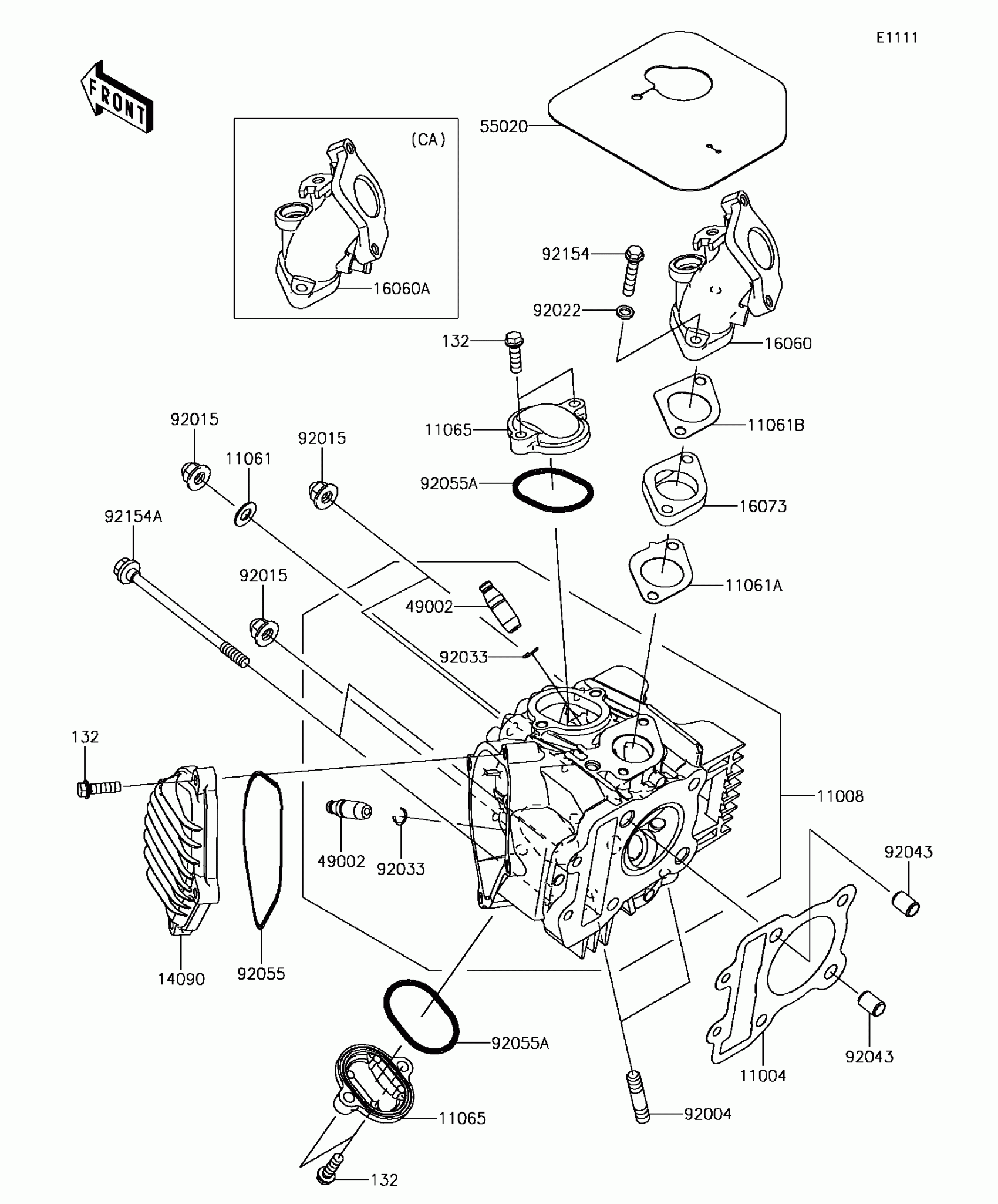

2018 Kawasaki Z125 Pro KRT Edition Cylinder Head Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11004

GASKET-HEAD

11004-0009

1
Out of stock

11008

HEAD-COMP-CYLINDER

11008-0868

1
Out of stock

11061

GASKET

11061-0850

1
Out of stock

11061A

GASKET,HEAD SIDE

11061-0992

1
Out of stock

11061B

GASKET,PIPE-INTAKE SIDE

11061-0993

1
Out of stock

11065

CAP,VALVE ADJUSTING

11065-0919

1
Out of stock

132

BOLT-FLANGED-SMALL,6X20

132BA0620

1
Out of stock

14090

COVER,CAMSHAFT

14090-1845

1
Out of stock

16060A

PIPE-INTAKE

16060-0041

1
Out of stock

16073

INSULATOR

16073-0838

1
Out of stock

49002

GUIDE-VALVE

49002-0033

1
Out of stock

55020

GUARD,THROTTLE-ASSY

55020-1958

1
Out of stock

92004

STUD,8X28.5

92004-1284

1
Out of stock

92015

NUT,CAP,8MM

92015-1151

1
Out of stock

92022

WASHER,6.3X10.2X1.6

92022-1588

1
Out of stock

92033

RING-SNAP

92033-1247

1
Out of stock

92043

PIN,8.2X10X14

92043-1264

1
Out of stock

92055

RING-O,91X2.5

92055-1651

1
Out of stock

92055A

RING-O,ADJUST CAP

92055-1655

1
Out of stock

92154

BOLT,FLANGED,6X30

92154-1830

1
Out of stock

92154A

BOLT,6X106

92154-2693

1
Out of stock

16060

PIPE-INTAKE

16060-0040

1
Out of stock
