2018 Kawasaki Z125 PRO KRT Edition AIR Cleaner Diagram

← All diagrams

Find the part on the AIR Cleaner diagram for your 2018 Kawasaki Z125 PRO KRT Edition, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

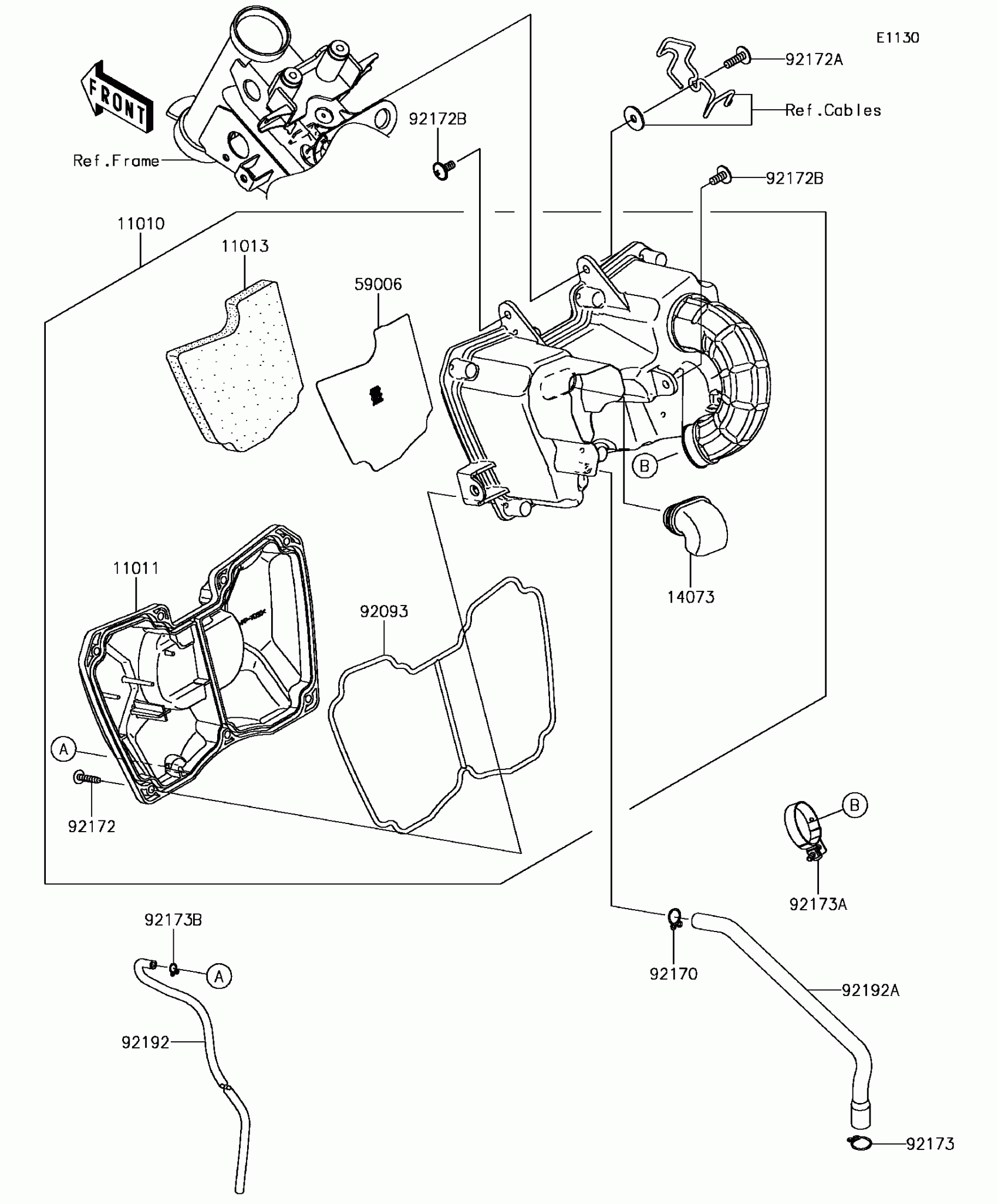

2018 Kawasaki Z125 PRO KRT Edition AIR Cleaner Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11010

FILTER-ASSY-AIR

11010-0840

1
Out of stock

11011

CASE-AIR FILTER,FR

11011-0835

1
Out of stock

11013

ELEMENT-AIR FILTER

11013-0756

1
Out of stock

14073

DUCT,INLET-SIDE

14073-0819

1

$10.93

In stock

59006

ARRESTER-FLAME

59006-0017

1
Out of stock

92093

SEAL

92093-0681

1
Out of stock

92170

CLAMP,11.6MM

92170-1796

1

$7.53

In stock

92172

SCREW,5X25

92172-0891

1
Out of stock

92172A

SCREW,6X20

92172-0907

1
Out of stock

92172B

SCREW,6X14

92172-0960

1
Out of stock

92173

CLAMP,15MM

92173-0814

1
Out of stock

92173A

CLAMP,37MM

92173-1473

1
Out of stock

92173B

CLAMP,6.5MM

92173-1504

1
Out of stock

92192

TUBE,DRAIN

92192-1517

1
Out of stock

92192A

TUBE,BREATHER

92192-1603

1
Out of stock
