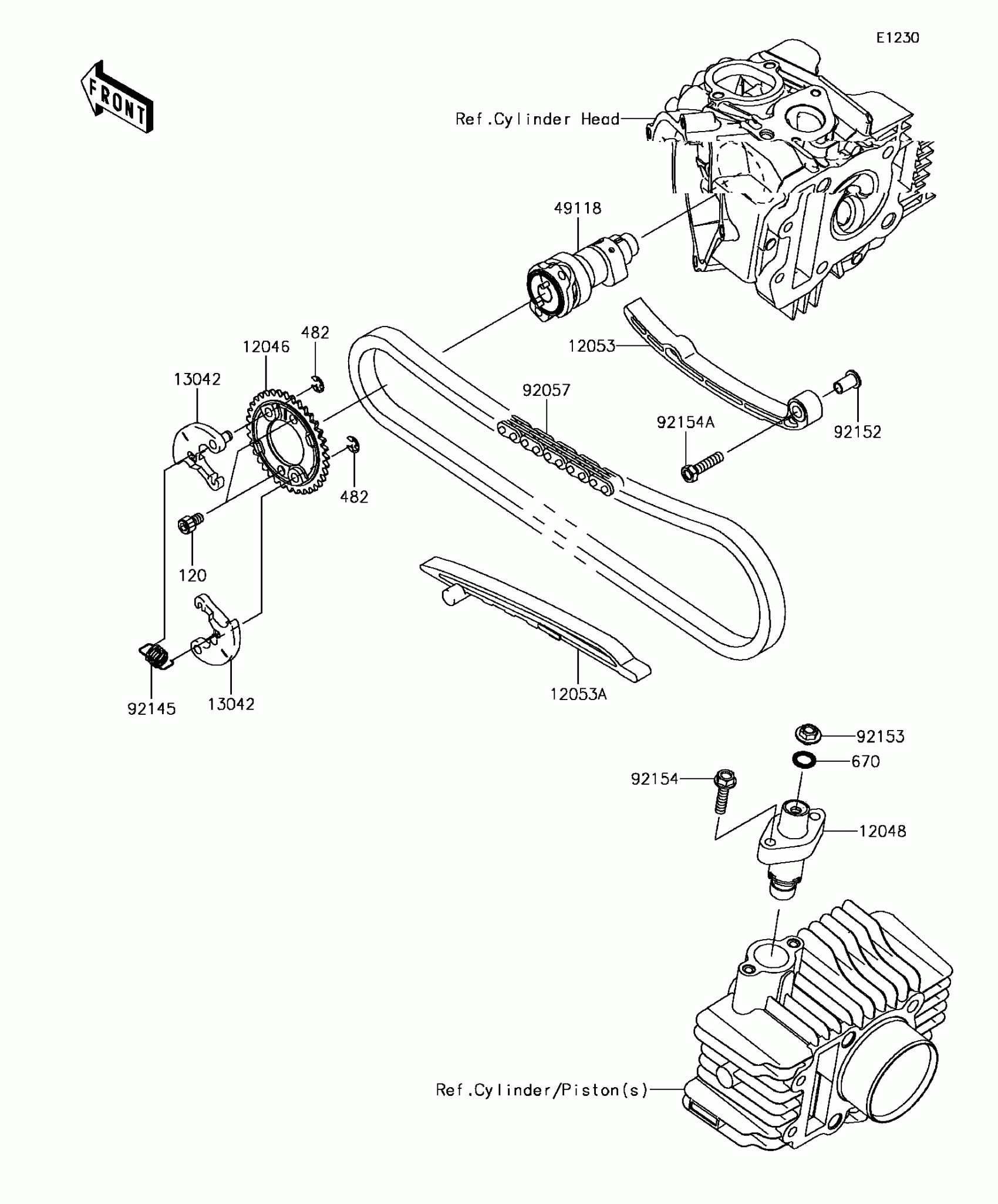

Kawasaki Z125 PRO KRT EDITION Camshaft(s)/Tensioner Diagram

Description

Price

120

BOLT-SOCKET,6X10

120CA0610

$1.27

12046

SPROCKET,36T

12046-0591

$76.57

12048

TENSIONER-ASSY

12048-0097

$56.65

12053

GUIDE-CHAIN

12053-0185

$45.54

12053A

GUIDE-CHAIN

12053-1461

$3.01

13042

WEIGHT,DECOMP

13042-1141

$44.85

482

CIRCLIP-TYPE-E,5MM

482J5000

$2.36

49118

CAMSHAFT-COMP

49118-0863

$237.69

670

O RING,10MM

670D2010

$1.41

92057

CHAIN,CAM,94L

92057-0610

$42.45

92145

SPRING

92145-0132

$2.20

92152

COLLAR,CHAIN GUIDE

92152-1369

$2.19

92153

BOLT,FLANGED,6X6

92153-1763

$2.15

92154

BOLT,FLANGED,6X25

92154-1196

$0.73

92154A

BOLT,6X25

92154-2191

$0.93
