2018 Kawasaki Z125 Pro KRT Edition Turn Signals Diagram

← All diagrams

Find the part on the Turn Signals diagram for your 2018 Kawasaki Z125 Pro KRT Edition, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

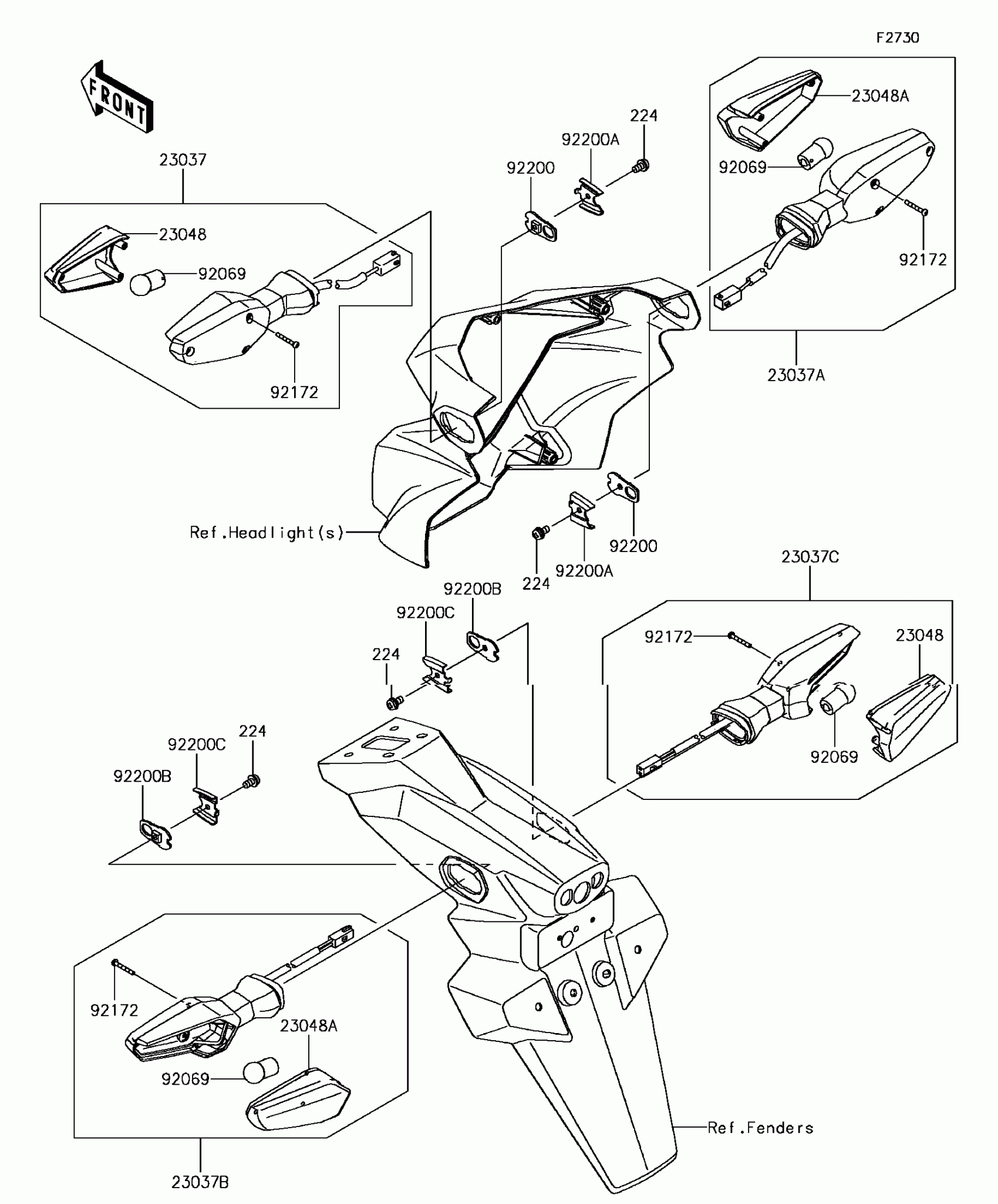

2018 Kawasaki Z125 Pro KRT Edition Turn Signals Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

224

SCREW-PAN-WP-CROS,4X8

224AB0408

1
Out of stock

23037

LAMP-ASSY-SIGNAL,FR,LH

23037-0326

1
Out of stock

23037A

LAMP-ASSY-SIGNAL,FR,RH

23037-0327

1
Out of stock

23037B

LAMP-ASSY-SIGNAL,RR,LH

23037-0328

1
Out of stock

23037C

LAMP-ASSY-SIGNAL,RR,RH

23037-0329

1
Out of stock

23048

LENS-SIGNAL LAMP

23048-0029

1
Out of stock

23048A

LENS-SIGNAL LAMP

23048-0030

1
Out of stock

92069

BULB,12V 10W (RY10W)

92069-0089

1
Out of stock

92172

SCREW,6X19

92172-1116

1
Out of stock

92200

WASHER,SIGNAL LAMP

92200-0164

1
Out of stock

92200A

WASHER,SIGNAL LAMP

92200-0165

1
Out of stock

92200B

WASHER,NUT 4MM

92200-0854

1
Out of stock

92200C

WASHER

92200-0855

1
Out of stock
