2018 Kawasaki Z125 PRO KRT Edition Taillight Diagram

← All diagrams

Find the part on the Taillight diagram for your 2018 Kawasaki Z125 PRO KRT Edition, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

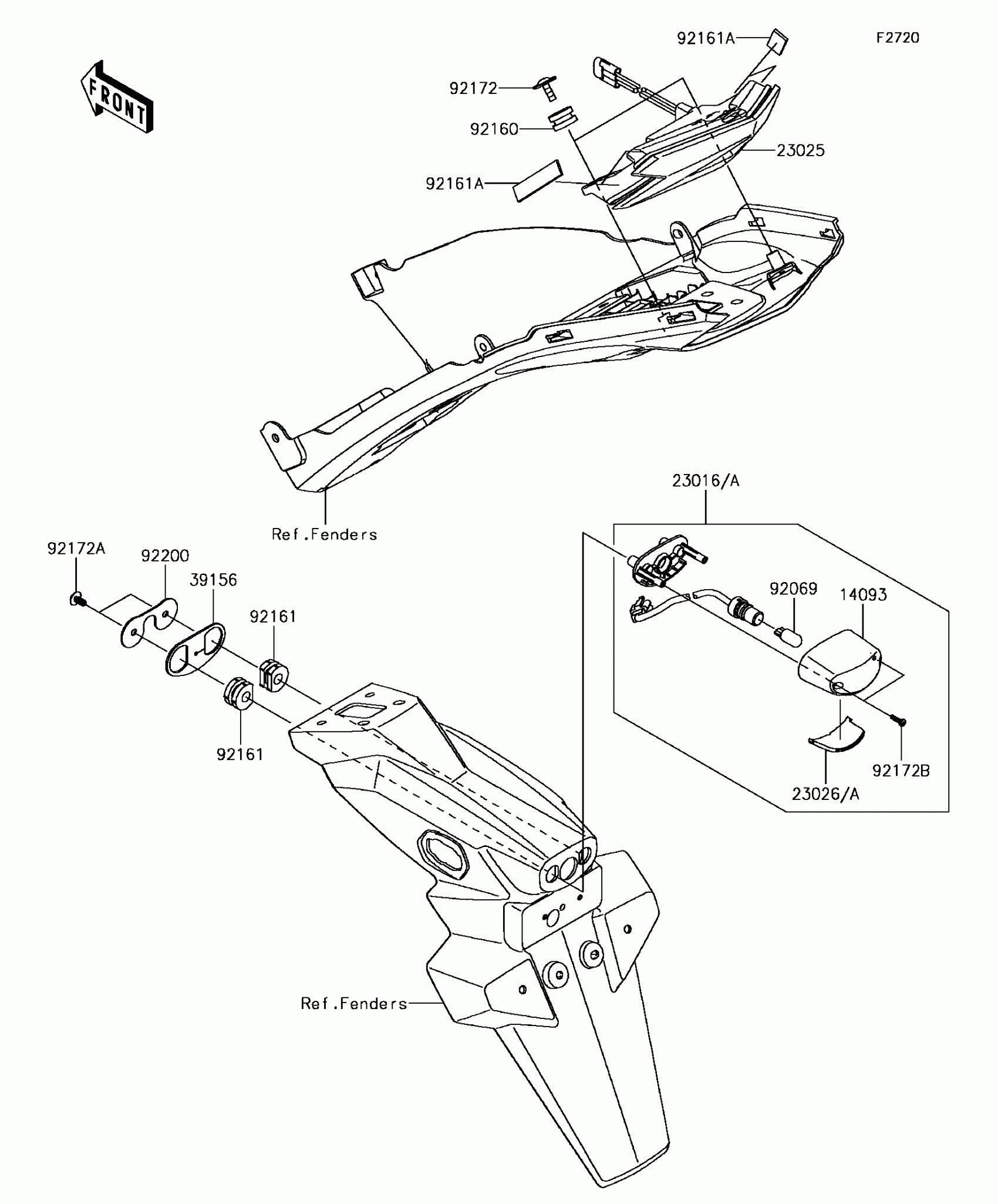

2018 Kawasaki Z125 PRO KRT Edition Taillight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

14093

COVER,LICENSE LAMP

14093-0525

1
Out of stock

23016A

LAMP-ASSY,LICENCE

23016-0604

1
Out of stock

23025

LAMP-TAIL

23025-0353

1
Out of stock

23026A

LENS,LICENSE LAMP

23026-0025

1
Out of stock

39156

PAD

39156-2108

1

$1.19

In stock

92069

BULB,12V 5W

92069-1016

1
Out of stock

92160

DAMPER,10X20X12

92160-1167

1
Out of stock

92161

DAMPER

92161-0776

1
Out of stock

92161A

DAMPER

92161-1359

1
Out of stock

92172

SCREW,TAPTITE,5X16

92172-0481

1
Out of stock

92172A

SCREW,TAPPING,5X16

92172-0813

1
Out of stock

92172B

SCREW,4X12

92172-0904

1
Out of stock

92200

WASHER

92200-1812

1
Out of stock
