2018 Kawasaki Z125 PRO KRT Edition Starter Motor Diagram

← All diagrams

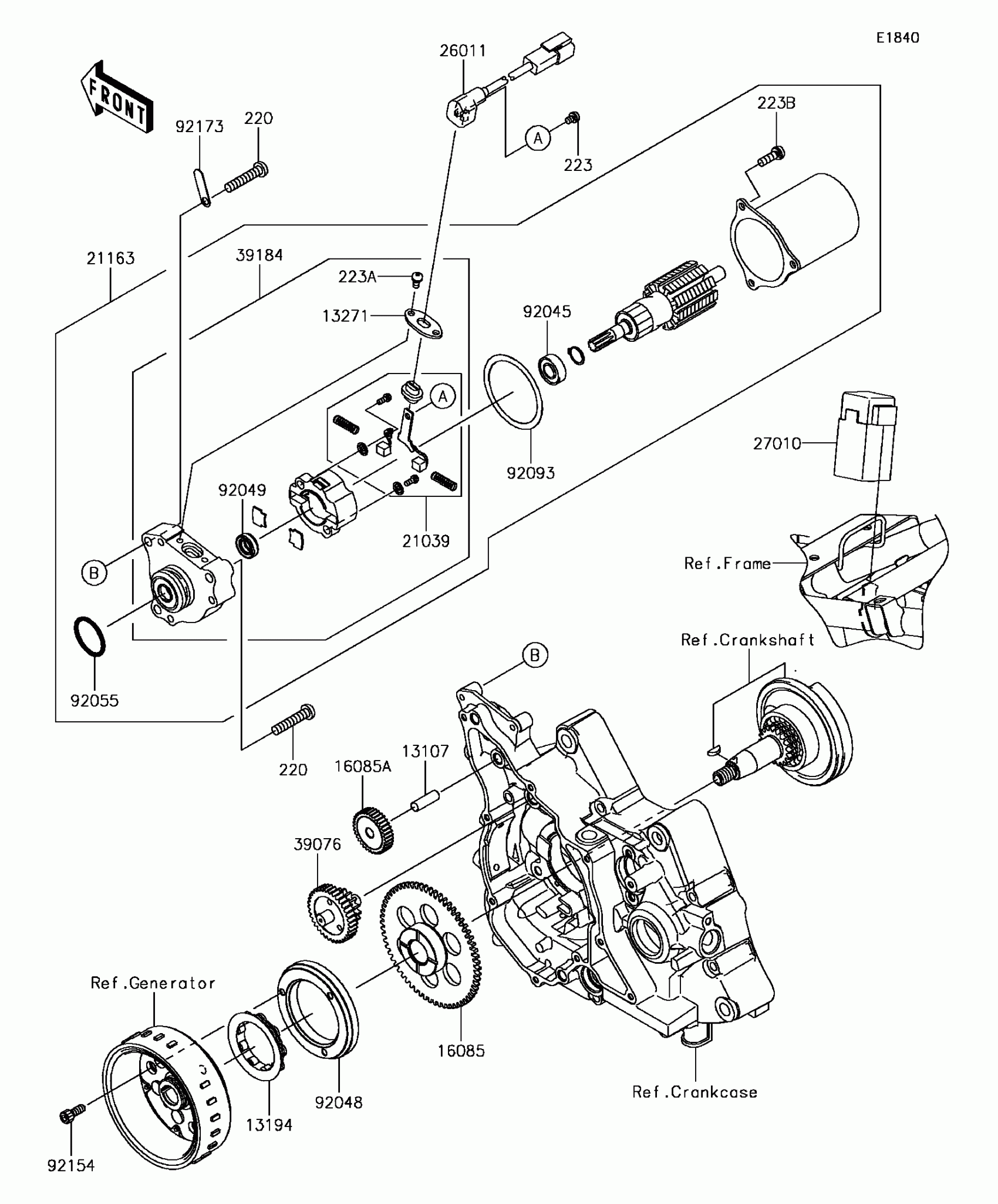

Find the part on the Starter Motor diagram for your 2018 Kawasaki Z125 PRO KRT Edition, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2018 Kawasaki Z125 PRO KRT Edition Starter Motor Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13107

SHAFT,8X25

13107-1142

1
Out of stock

13194

CLUTCH-ONEWAY

13194-0019

1
Out of stock

13271

PLATE

13271-0674

1

$17.39

In stock

16085

GEAR,62T

16085-0659

1
Out of stock

16085A

GEAR,IDLE,45T

16085-0662

1
Out of stock

21039

BRUSH,STARTER MOTOR(SET)

21039-1067

1
Out of stock

21163

STARTER-ELECTRIC

21163-0049

1
Out of stock

220

SCREW-PAN-CROS,6X30

220AD0630

1
Out of stock

223

SCREW-PAN-WS-CROS,4X6

223AA0406

1
Out of stock

223A

SCREW-PAN-WS-CROS,4X8

223AA0408

1
Out of stock

223B

SCREW-PAN-WS-CROS,5X16

223AA0516

1
Out of stock

26011

WIRE-LEAD

26011-0055

1
Out of stock

27010

SWITCH

27010-0085

1
Out of stock

39076

LIMITER

39076-0022

1

$96.42

In stock

39184

BRACKET-ASSY

39184-0014

1

$78.60

In stock

92045

BEARING-BALL,STARTER MOTOR

92045-1349

1
Out of stock

92048

RACE

92048-0023

1
Out of stock

92049

SEAL-OIL,STARTER MOTOR

92049-1465

1
Out of stock

92055

RING-O

92055-1276

1
Out of stock

92093

SEAL,STARTER MOTOR

92093-1079

1
Out of stock

92154

BOLT,SOCKET,6X16

92154-0235

1
Out of stock

92173

CLAMP

92173-1585

1
Out of stock
